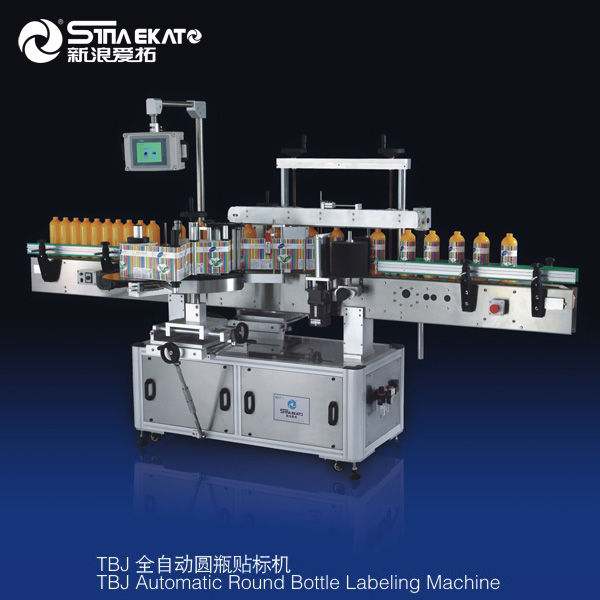

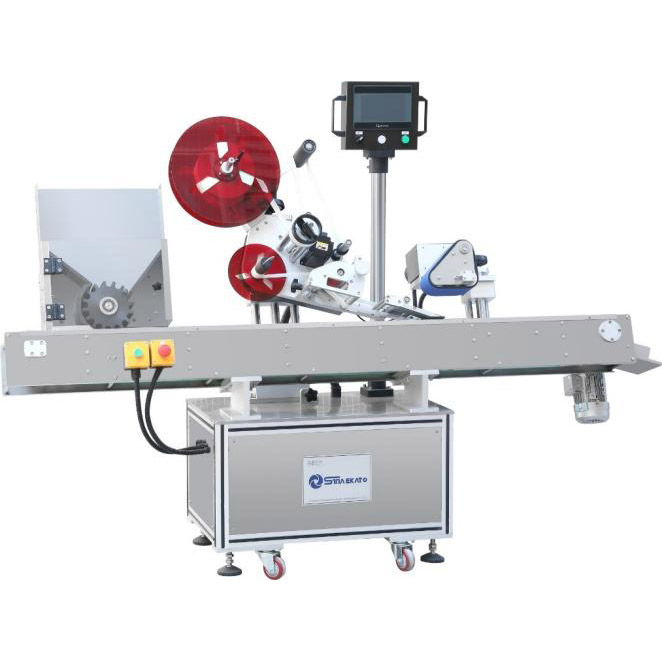

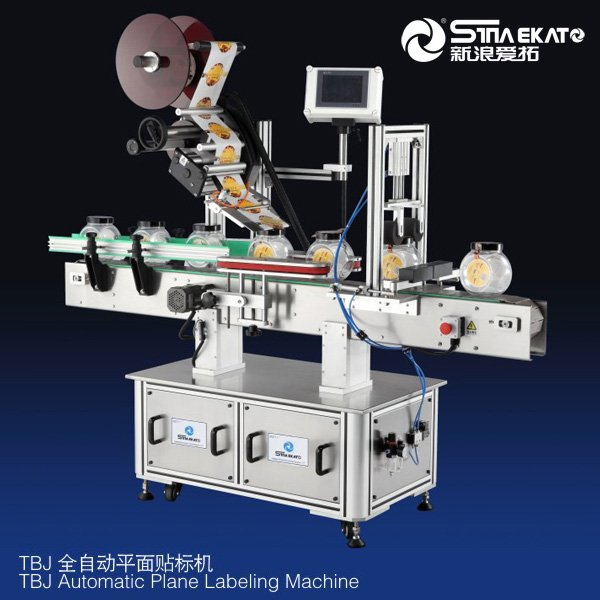

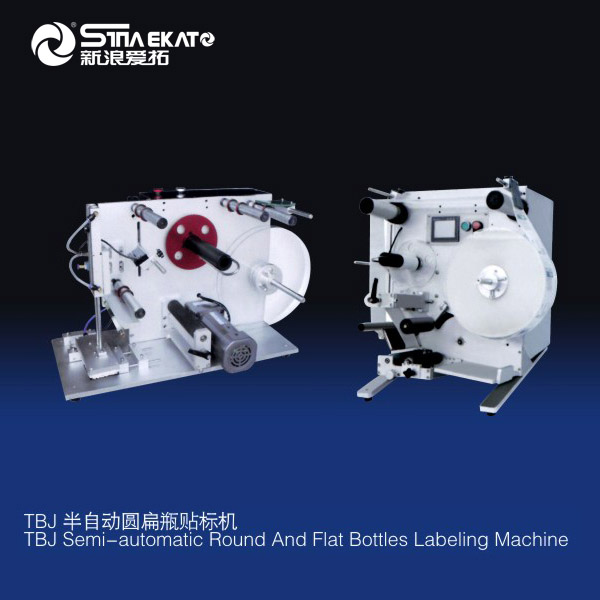

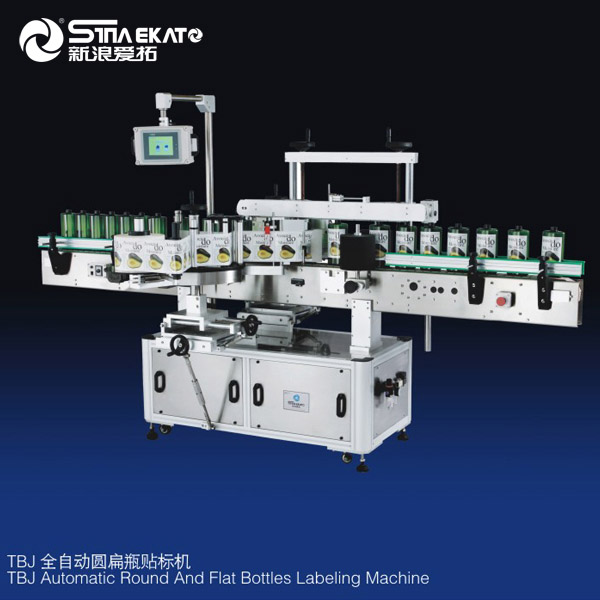

TBJ Round And Flat Bottle Labeling Machine/Top Cover Labeling Machine (Full-Auto & Semi-Auto Optional)

Description

Instruction

– Imported microcomputer control system.
– Super large touch screen, easy to operate.
– Servo motor is adopted, and the labeling precision is enhanced when the speed is
increased.
– The machine performance is more stable.
– More than 100 groups of labeling parameter memories can realize fast sample changing.
– The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment It will never rust, which conforms to GMP requirements.

This automatic labeling machine is suitable for round bottles of different sizes and materials. It is widely used in round and conical bottles in food, cosmetics, electronics, daily necessities, medicine and other industries. Automatic photoelectric tracking and identification of bottles, no labeling without objects. Using well-known brand components, high-quality stainless steel, reliable quality.
High resolution and large-size man-machine interface with PLC control, touch operation, intuitive and easy to use; Labeling machine is an indispensable component of modern packaging. The types of labeling machines produced in China are gradually increasing, and the technical level has also greatly improved.

Positioning labeling is adopted, which can be positioned and labeled on the product, one label at a time or symmetrically before and after labeling;
Multi group labeling parameter memory, which can quickly change the production of products;
The production line can be connected according to the needs of customers, or the feeding equipment can be purchased.

Technical Parameter

Power supply	AC220V 50 Hz 1200W
Speed of labeling	30m/min (related to label size)
Labeling accuracy	±1mm
Label the maximum diameter	350 mm
Roller diameter	76.2mm
Maximum width of label (height)	200mm
Applicable labeling bottle product width
Diameter	20 ~ 100 mm
Conveying to ground height	860mm
Machine dimension	300018001500(mm)
Machine weight	about 520KG

Configuration

No	Name	Set	Number	Instruction	Brand
1	Servo motor & Driver	set	2	750W	Taiwan Taida
2	PLC	piece	2	CPU212	Germany Siemens
3	Label electronic eye	piece	2	/	Germany Leuze

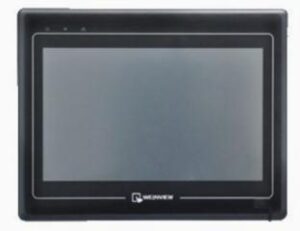

4	Touch screen	piece	1	7 inches	Taiwan Weinview
5	Check bottle electronic eye	piece	1	/	Germany Leuz
6	Inverter	piece	1	200W	Taiwan Taida
7	Inverter	piece	2	400W	Taiwan Taida
8	Inverter	piece	1	750W	Taiwan Taida
9	Conveyor chain motor	set	1	750W	China
10	Bottle-split motor	set	2	25W	Germany JSCC
11	Guide motor	set	1	60W	Germany JSCC
12	Round bottle mechanism motor	set	1	90W	Germany JSCC
13	Machine Aluminum frame/head		1	/	Manufacture by factory
14	Power switch	piece	1	100W	Japan Idec
15	Ac adapter	piece	1	220V	Delixi – China
16	Relay	piece	4		Germany
17	Knob switch	piece	1		Japan Idec
18	Residual current circuit breaker	piece	1	/	Japan joint-venture
19	Emergency swicth	piece	1		Japan Idec
20	Conveyor chain	/	1		China
