SME-D Vacuum Emulsifying Mixer

Description

Machine Video

Applicable

Daily cosmetic

hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food&Pharmaceutical
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

Performance & Features

1.For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommonded.

2.Raw materials can be directly sucked into the groove by the machine The machine is equipped with vacuum, hydraulic pressure, heating,cooling and other functions.

3.Emulsifying, blending and dispersion can be completed within a short period of time.

4.Slow speed blade type blending and high speed homogenizing systems are provided with frequency conversion control.

5.Users can select push button control or PLC touch screen system.

6.Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard. Blending is carried out under vacuum to effectively ensure the emulsifying effect.

7.The machine equipped with CIP, which can convenient user’s own CIF system to clean the machine.

Technical Parameter

Model	Capacity	Homogenizer Motor		Stir Motor		Dimension			Total power		Limit vacuum(Mpa)
Model	Capacity	KW	r/min	KW	r/min	Length(mm)	Width(mm)	Height(mm)	Steam heating	Electric heating	Limit vacuum(Mpa)
SME-D5	5L	0.37	3000	0.18	63	1260	540	1600/1850	2	5	-0.09
SME-D10	10L	0.75	3000	0.37	63	1300	580	1600/1950	3	6	-0.09
SME-D50	50L	3	3000	1.1	63	2600	2250	1950/2700	9	18	-0.09
SME-D100	100L	4	3000	1.5	63	2750	2380	2100/2950	13	32	-0.09
SME-D200	200L	5.5	3000	2.2	63	2750	2750	2350/3350	15	45	-0.09
SME-D300	300L	7.5	3000	2.2	63	2900	2850	2450/3500	18	49	-0.085
SME-D500	500L	11	3000	4	63	3650	3300	2850/4000	24	63	-0.08
SME-D1000	1000L	15	3000	5.5	63	4200	3650	3300/4800	30	90	-0.08
SME-D2000	2000L	15	3000	7.5	63	4850	4300	3800/5400	40	_	-0.08
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail

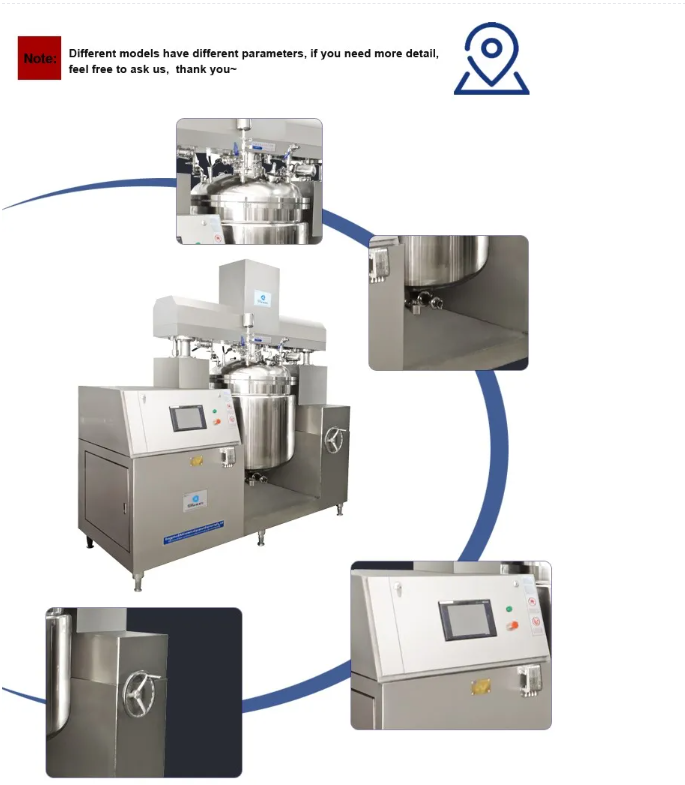

Product Details

high speed emulsfying head 3000 r/min shear fineness achievenomter scale adopt intemational brand motors use frequency conversion speed control mixing , so as to get high-quality products customized styles can bemade accroding to material requirements

anchor stirrer spiral ribbon stiming anchor stimer oil-water pot pre-treatment system water phase and oil phase pot to pre-heat and disperse the raw materials.

then transfer them to main pot to begin production Hermetic vacuum Defoaming throught the vacuum system can meet the requirements for the aseptic and high standard product

Console the control panel displays and controls the equipment, mixing homogenization, pressure data, etc . in real time Electric box

Use internationally renowned brand components to ensure the quality of the equipment and longer service life

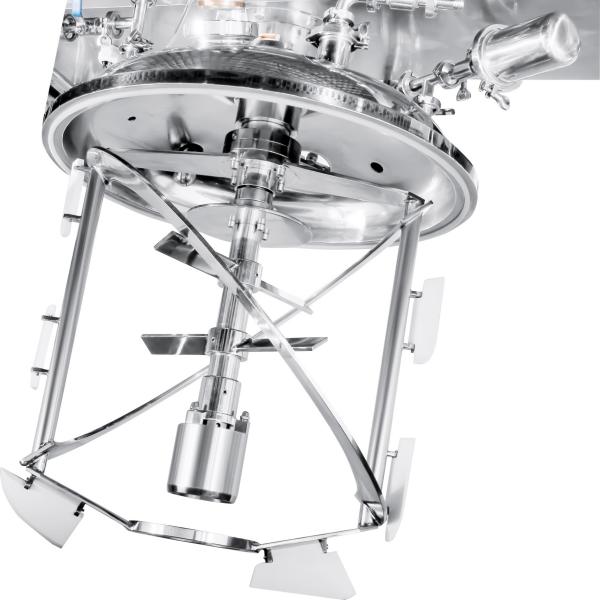

The homogenizing stirring system of SME-D bidirectional stirring vacuum emulsifier is composed of high-speed homogenizer shear, center stirring paddle and scraping stirring frame. High shear homogenizer can quickly refine the material. When it comes to sticky products, the stirring function of the single homogenizer is not so significant, but with the center mixing and box scraping of two-way mixing, the high-speed shear of the homogenizer can be faster and more efficient, and the full volume of materials can be quickly stirred without dead corners.

Relevant Machines

We can offer machines for you as following :

(1)Cosmetics cream ,ointment ,skin care lotion ,toothpaste production line

From Bottle washing machine -bottle drying oven -Ro pure water equipment -mixer -filling machine -capping machine -labeling machine -heat shrink film packing machine -inkjet printer -pipe and valve etc

(2)Shampoo,liquid saop ,liquid detergent(for dish and cloth and toilet etc ) ,liquid wash production line

(3)Perfume production line

(4)And other machines ,powder machines ,lab equipment ,and some food and chemical machines

Bottle Washing Machine

Bottle Drying Oven

Aseptic Storage Tank

Filling Machine

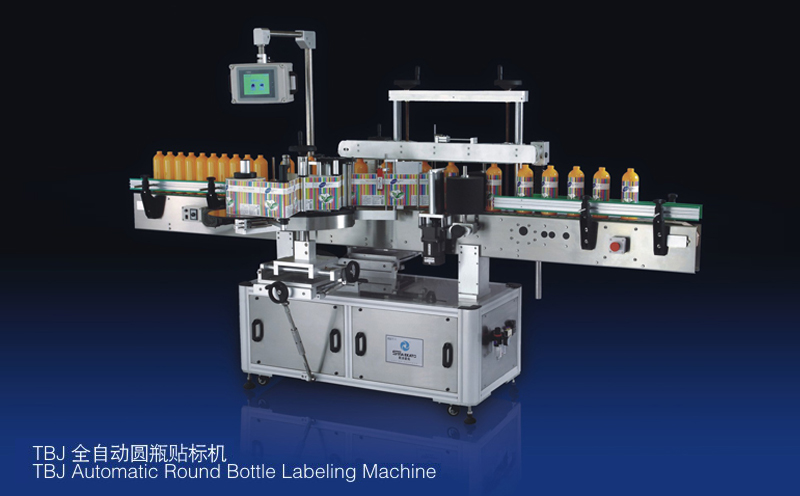

Labeling machine

Packing machine

Packaging & Delivery

Packaging Details: Standard Export Plywood Case/ Steel Case,

Suitable Size for Container Transportation

Delivery Detail:60 days
