SME-B-500L Vacuum Emulsifying Homogenizer Mixer

Description

Application

Cosmetics and personal care: The mixers are widely used in the production of creams, lotions, gels, and other cosmetic products. They help in achieving a smooth and uniform consistency, ensuring proper dispersion of pigments, and enhancing the stability and shelf life of the product.

Pharmaceuticals: The is used in the manufacturing of ointments, creams, and pharmaceutical preparations. The vacuum feature helps in eliminating air bubbles and reducing oxidation, ensuring the formulation is free from contaminants and has a longer shelf life.

Food and beverage: The mixers are utilized in the production of sauces, dressings, mayonnaise, spreads, and other food products. They help in achieving a uniform texture, emulsion stabilization, and blending of ingredients, leading to improved flavor and appearance.

Chemical and industrial applications: Vacuum homogenizer emulsifying mixers is used in the production of paints, coatings, adhesives, and various chemical products. They aid in the dispersion and homogenization of different components, ensuring optimal performance and stability of the final product.

Dairy industry: The mixers are employed in the production of dairy products such as yogurt, cheese, and ice cream. They help in breaking down fat globules, improving product texture and consistency, and increasing the overall stability of the dairy formulation.

Features and Advantages

1. The 500L emulsifying main pot adopts fixed pot body, pot cover and pot body with flange connection can not be lifted.

2.The main pot The oil pot and the water pot are made of three-layer stainless steel welding, the inner layer in direct contact with the material is made of imported SUS316L stainless steel, the middle jacket layer and the external thermal insulation layer are made of 304 stainless steel, and the tank body and pipeline are mirror-polished or matte, which fully meets the GMP requirements.

3.The material heating method adopt steam heating, pay attention to the pressure of steam heating can not exceed the factory preset pressure value of 3kg,

4.The machine mixing system adopts single-way spiral belt scraping wall mixing The motor brand of the mixing system is Siemens of Germany and adopts German Burgmann mechanical seal and Japanese NSK bearing Variable stirring speed: 0~63r/min, and the speed is adjusted by the Siemens frequency converter in the power distribution cabinet.

5.The homogenization method of the machine adopt the bottom external circulation homogenization, the bottom homogenization motor is German Siemens, through the Siemens frequency converter of the distribution box to adjust the speed, the speed is adjustable: 0~4800r/min.

6. Oil pot and water pot as pre-heating and pre-mixing,it is necessary for batch production,it efficiently save the preparation time.

7.Pretreatment pot -250L oil tank and 350L water tank respectively adopt the top paddle stirring system and the bottom dispersion system. The motor is Siemens motor, and the speed is adjusted by Siemens frequency converter in the distribution box. The mechanical seal is made of German Burgmann, and the lid and the pot body are integrated and opened through the observation manhole.

8.The distribution box is made of 304 stainless steel, its PLC and inverter adopt German Siemens, the electrical components adopt German Schneider, the instrument adopts Omron, and the distribution box can choose PLC touch screen control (touch screen adopts German Siemens) or electronic control button control

9.The machine equipped with CIP, which can convinient user’s own CIP
system to clean the machine.

Technical Parameter

Model		SME-B-500L
Capacity		500L
Homogenizer Motor	Power(KW)	15KW
	Rotate speed(r/min)	0-4800 r/min
Stir Motor	Power(KW)	5.5KW
	Rotate speed(r/min)	0-60 r/min
Dimension(LWH) unit(mm)		385036002750
Type of Heating		Steam heating
Note: in case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

Product And Details

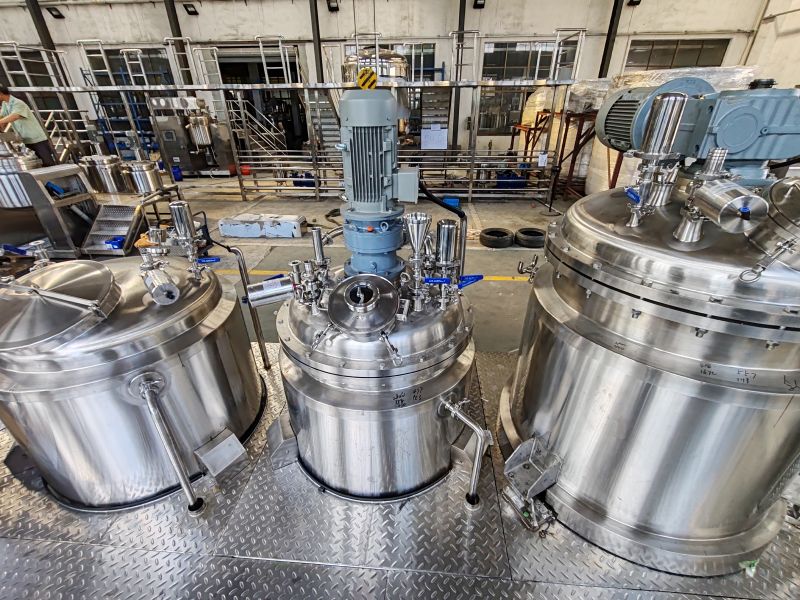

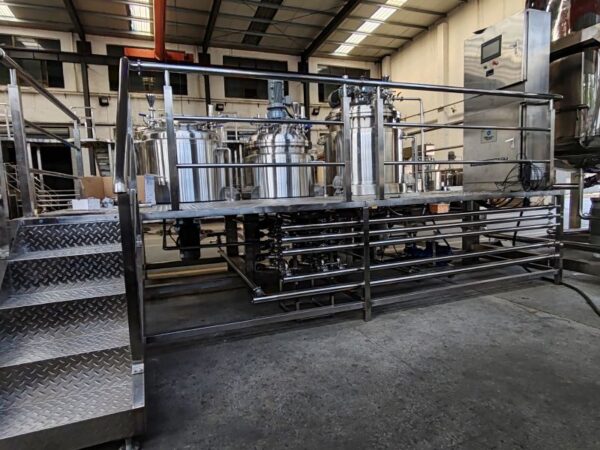

: SME-B-500L Vacuum emulsifying mixer in production

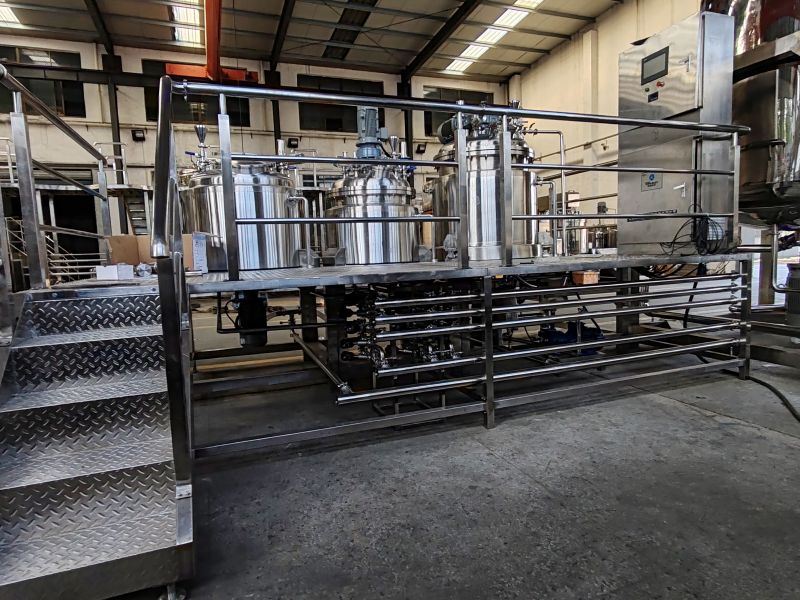

: SME-B-500L Vacuum emulsifying mixer back

500L Emulsifying pot

Cover Element

Fragrance hopper (Inlet for additional Ingredients)
Add other small amount of Ingredients (300ml capacity)

Vacuum gauge
It is used to observe tank internal pressure and to configure the Min and Max operation limits for vacuum operation.

Manhole + screw view
Improve the brightness of the pot, easy to observe the material situation.

Oil phase/Water phase Premixer inlet through main pot vacuum feature
Under the vacuum condition, the material will be sucked into homogenizing tank directly through the transfer pipe.

Air breath unit with filter cartridge
To avoid the dust particles in the air into the tank when the liquid level
lower.

LED Light
Improve the brightness of the pot, easy to observe the material situation.

360°cleaning ball – CIP
Cleaning 360 water sprinkler inside the pot. Inlet water tube shall be connected. (2 Pcs for 1000L capacity)

Positive pressure inlet
It used for pushing thick product discharge out quickly.

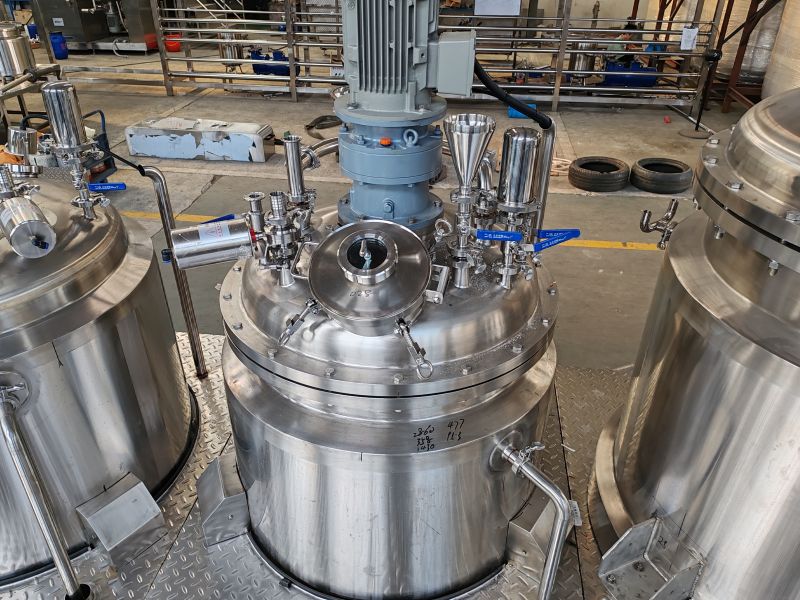

: 250L Oil pot

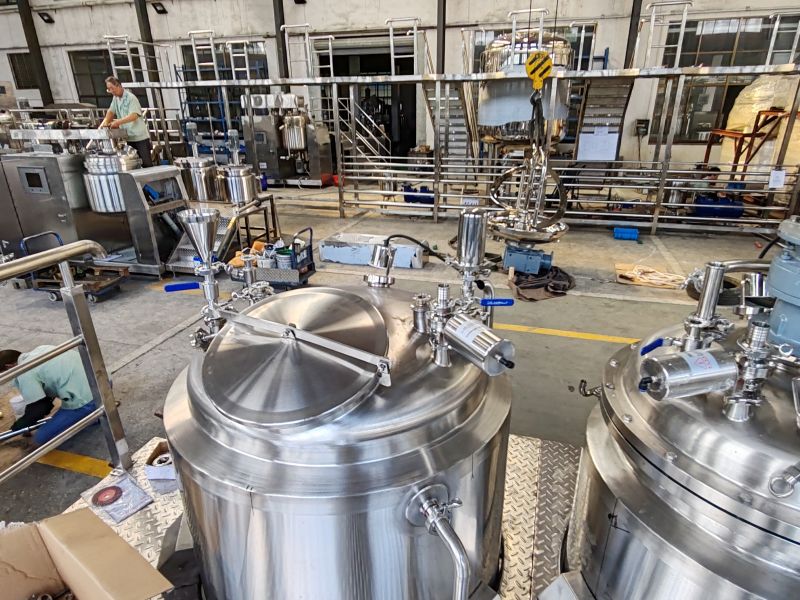

: 350L Water pot

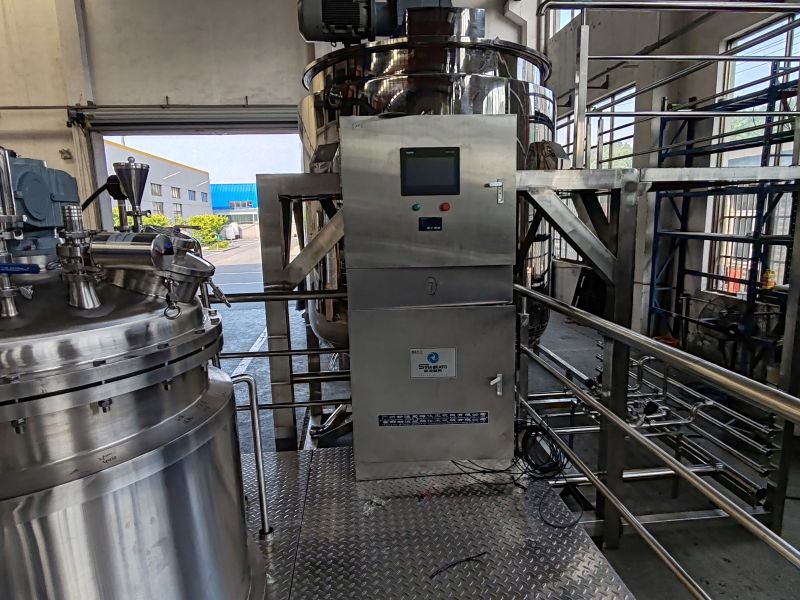

: Control cabinet

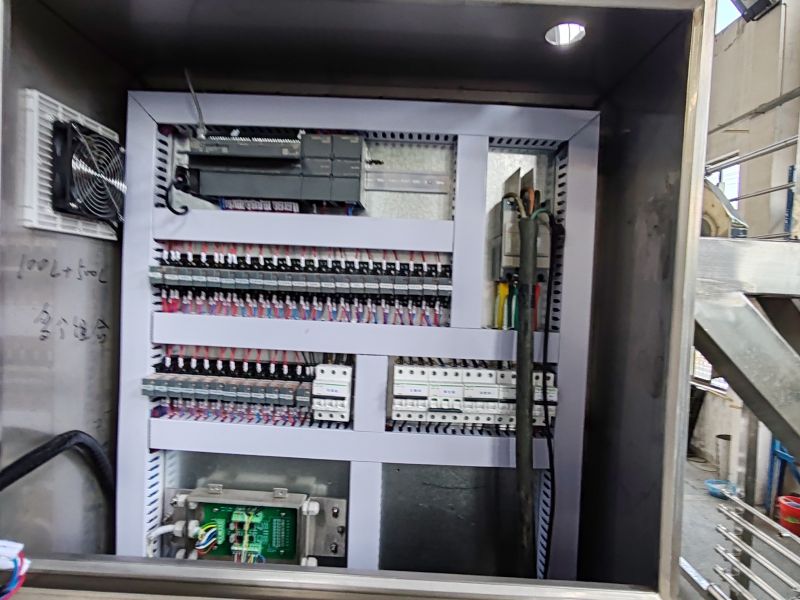

: Internal electrical components of electric cabinet
