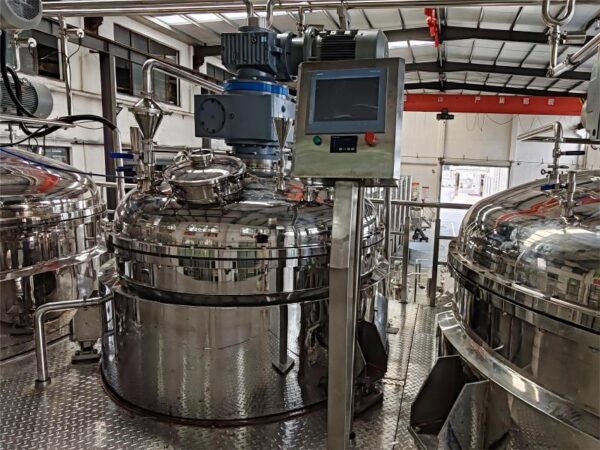

SME-B-4000L Vacuum Emulsifying Homogenizer Mixer

Description

Application

Cosmetics and personal care: The mixers are widely used in the production of creams, lotions, gels, and other cosmetic products. They help in achieving a smooth and uniform consistency, ensuring proper dispersion of pigments, and enhancing the stability and shelf life of the product.

Pharmaceuticals: The is used in the manufacturing of ointments, creams, and pharmaceutical preparations. The vacuum feature helps in eliminating air bubbles and reducing oxidation, ensuring the formulation is free from contaminants and has a longer shelf life.

Food and beverage: The mixers are utilized in the production of sauces, dressings, mayonnaise, spreads, and other food products. They help in achieving a uniform texture, emulsion stabilization, and blending of ingredients, leading to improved flavor and appearance.

Chemical and industrial applications: Vacuum homogenizer emulsifying mixers is used in the production of paints, coatings, adhesives, and various chemical products. They aid in the dispersion and homogenization of different components, ensuring optimal performance and stability of the final product.

Dairy industry: The mixers are employed in the production of dairy products such as yogurt, cheese, and ice cream. They help in breaking down fat globules, improving product texture and consistency, and increasing the overall stability of the dairy formulation.

Features and Advantages

-. The 4000L emulsifying main pot adopts fixed pot body, pot cover and pot body with flange connection can not be lifted.

-. The main pot is made of three-layer stainless steel welding, the inner layer in direct contact with the material is made of imported SUS316L stainless steel, the middle jacket layer and the external thermal insulation layer are made of 304 stainless steel, and the tank body and pipeline are mirror-polished or matte, which fully meets the GMP requirements.

-.The material heating method adopt steam heating, pay attention to the pressure of steam heating can not exceed the factory preset pressure value of 3kg,

-the mixer equipped with American Toledo weighing module, It allows accurate weighing of materials

-.The machine mixing system adopts single-way spiral belt scraping wall mixing The motor brand of the mixing system is Siemens of Germany and adopts German Burgmann mechanical seal and Japanese NSK bearing. The external stir variable stirring speed ranges from 0~31 r/min, internal stir variable mixing speed ranges from 0~36 r/min. Both speeds are adjusted by the Siemens frequency converter in the power distribution cabinet

-.The homogenization method of the machine adopt the bottom external circulation homogenization, the bottom homogenization motor is German Siemens, through the Siemens frequency converter of the distribution box to adjust the speed, the speed is adjustable: 0~2880r/min.

-The discharge is an external circulation discharge, and the discharge valve adopts a pneumatic quick butterfly valve.

-.The distribution box is made of 304 stainless steel, its PLC and inverter adopt German Siemens, the electrical components adopt German Schneider, the instrument adopts Omron, and the distribution box can choose PLC touch screen control (touch screen adopts German Siemens) or electronic control button control

-.The machine equipped with CIP, which can convenient user’s own CIP
system to clean the machine.

Technical Parameter

Model		SME-B-4000L
Capacity		4000L
Homogenizer	Power(KW)	30KW
Motor	Rotate speed(r/min)	0-2800 r/min
External Stir Motor	Power(KW)	15KW
	Rotate speed(r/min)	0- 31r/min
Intenal Stir Motor	Power(KW)	11KW
	Rotate speed(r/min)	0- 36r/min
Vauum Pump Power		7.5KW
Discharge method		External cycle pneumatic butterfly valve
Dimension(LWH) unit(mm)
Type of Heating		Steam heating
Note: in case of inconformity of the data in the table due to
technical improvement or customization, the real object shall prevail.

Product And Details

Part 1.Cover Element

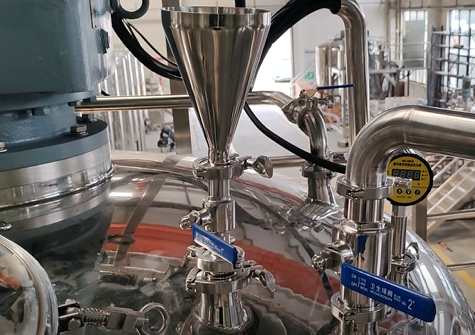

1.Fragrance hopper (Inlet for additional Ingredients)

Add other small amount of Ingredients (300ml capacity)

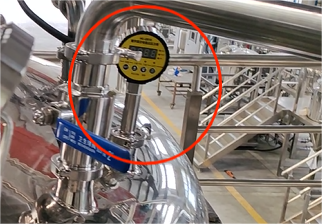

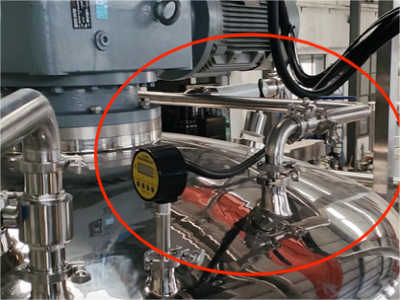

2.Vacuum gauge

It is used to observe tank internal pressure and to configure the Min and Max operation limits for vacuum operation.

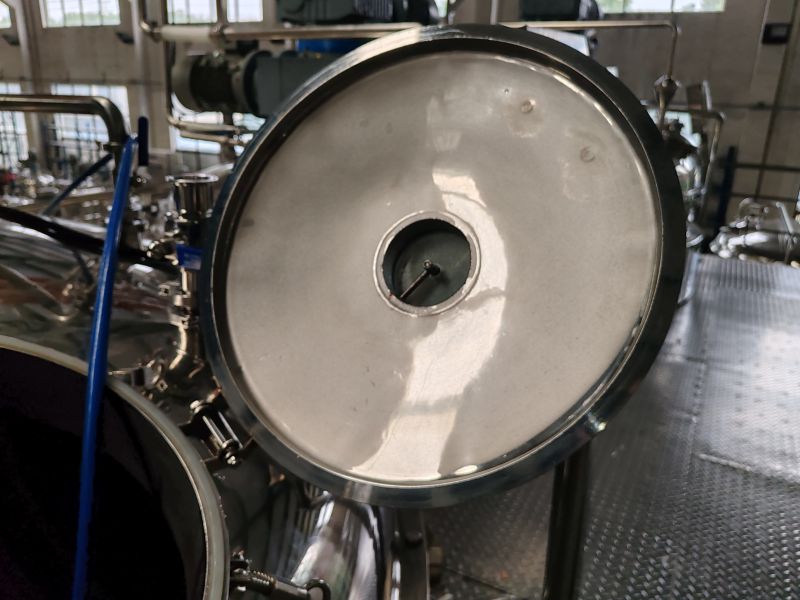

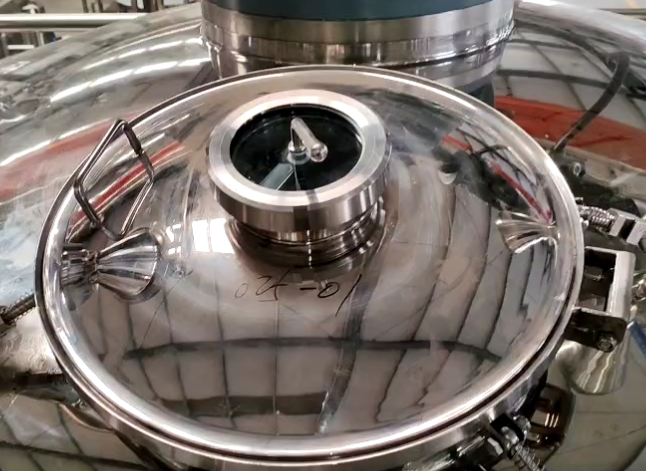

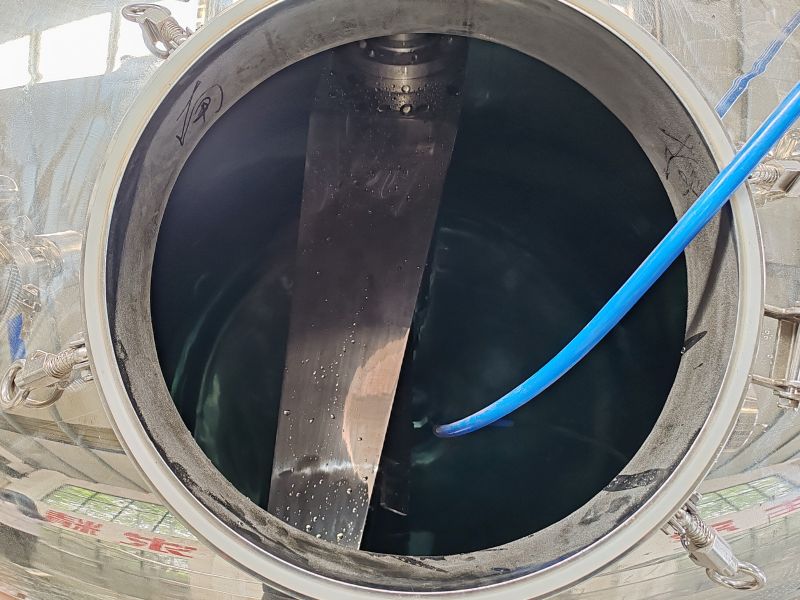

3.Manhole + screw view

: Dia-400mm Pressure Manhole

Improve the brightness of the pot, easy to observe the material situation..

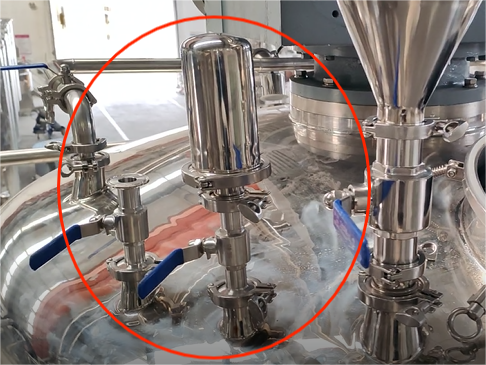

4.Air breath unit with filter cartridge

To avoid the dust particles in the air into the tank when the liquid level
lower.

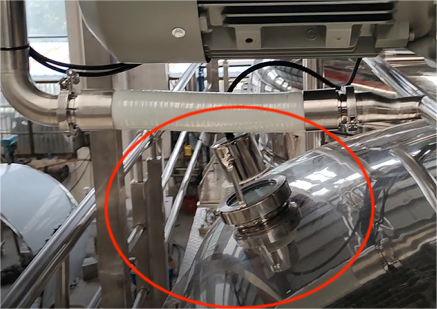

5.LED Light

Improve the brightness of the pot, easy to observe the material situation.

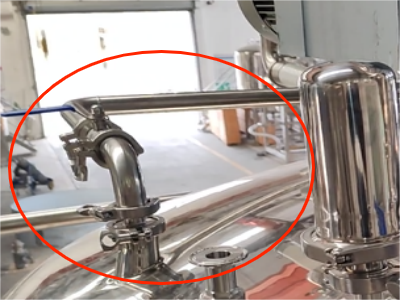

6.360°cleaning ball – CIP

Cleaning 360 water sprinkler inside the pot. Inlet water tube shall be connected. (2 Pcs for 1000L capacity)

7.Positive pressure inlet

It used for pushing thick product discharge out quickly.

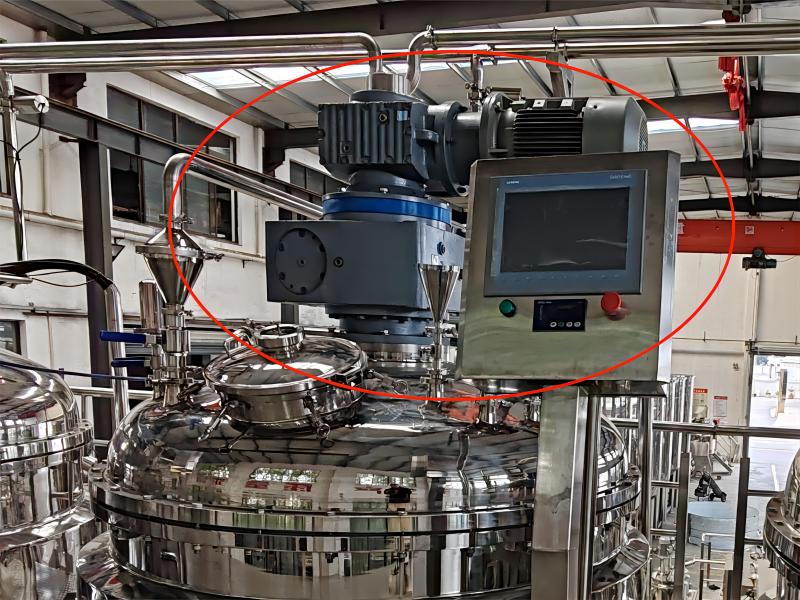

Part 2. top Stir System

(The machine mixing system adopts single-way spiral belt scraping wall mixing The motor brand of the mixing system )

Part 3. Bottom External circulation Homogenizer System

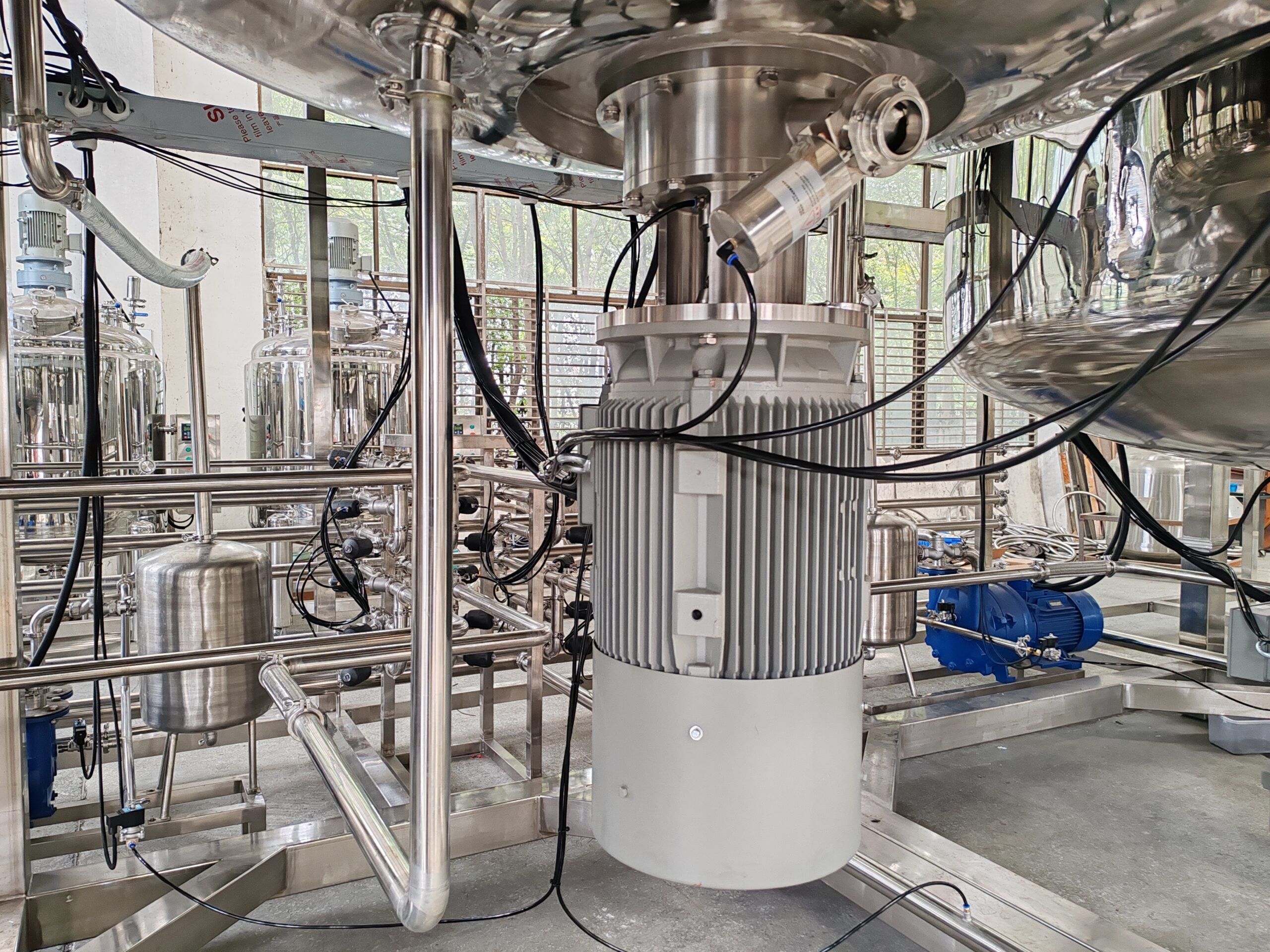

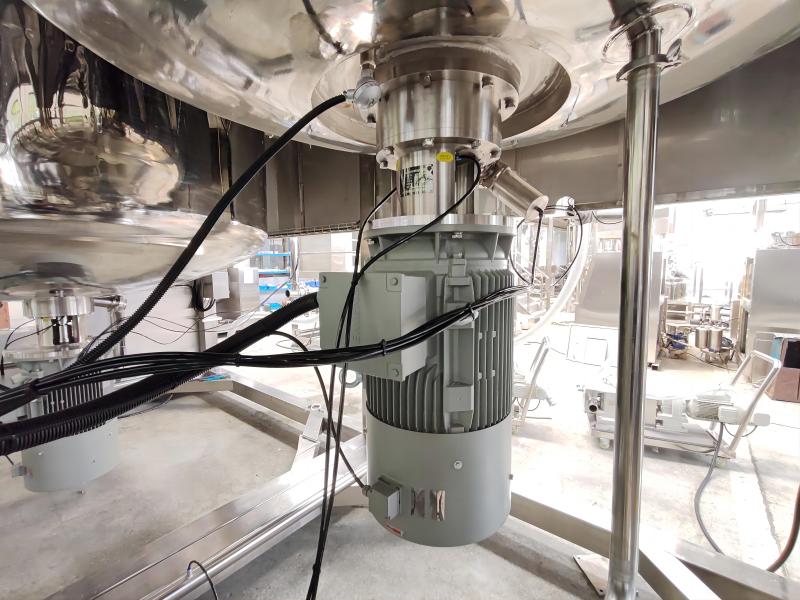

: Bottom Homogenzier Motor

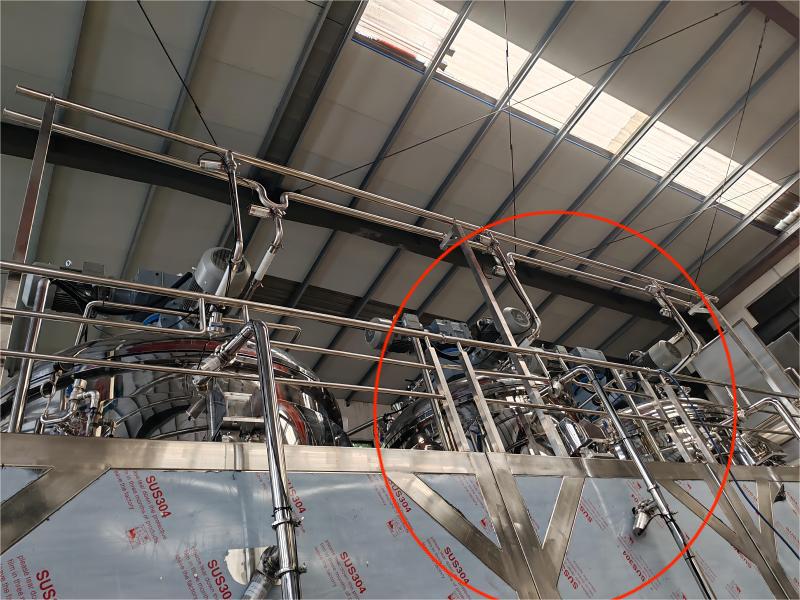

: Material circulation pipe

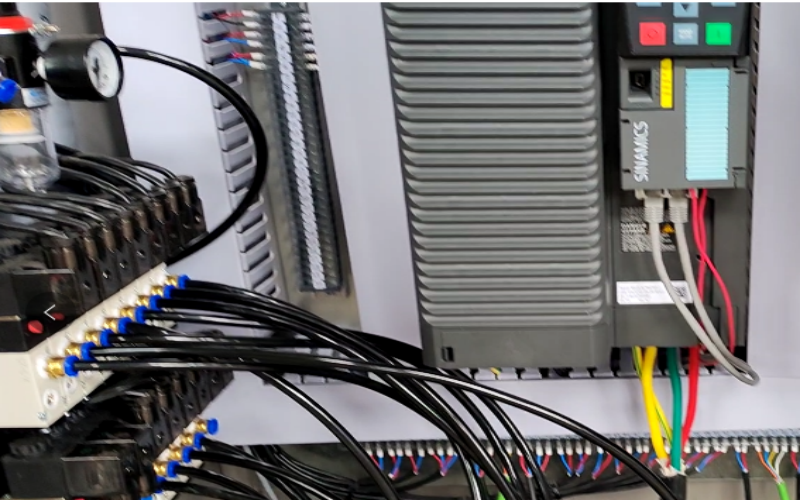

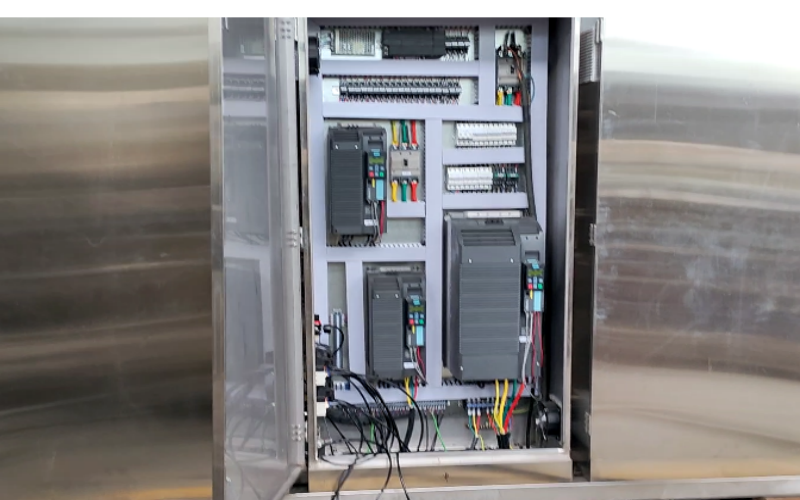

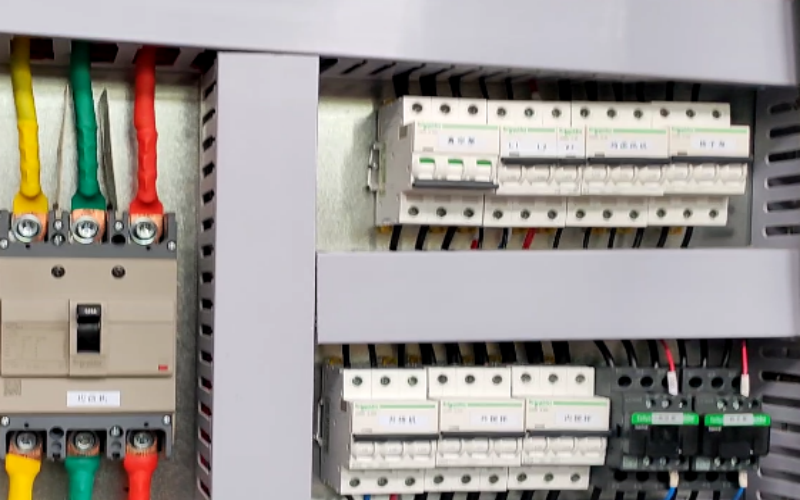

Part 4. Electrical Control Cabinet

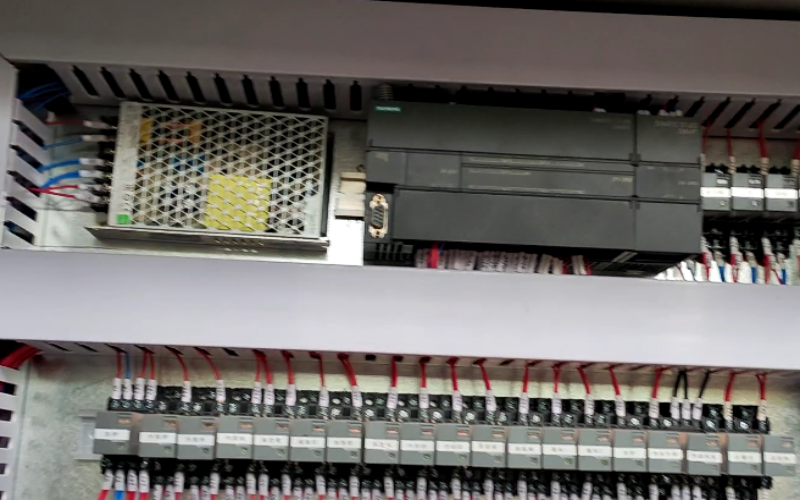

: Siemens PLC

: Solenoid valve

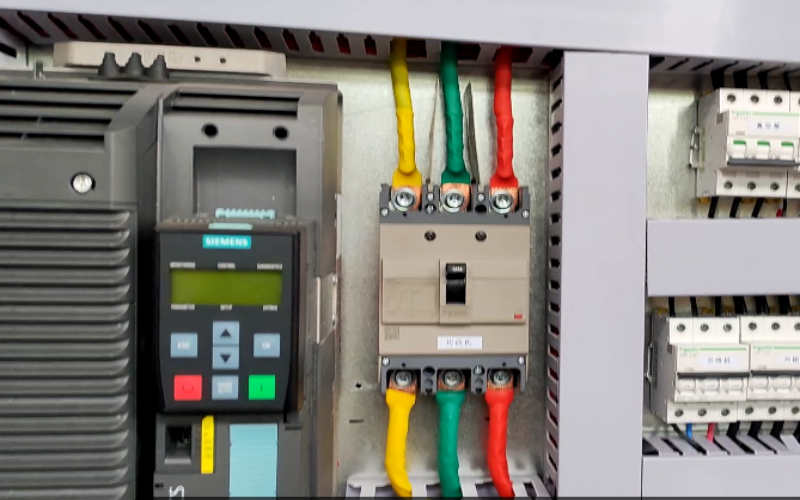

: Siemens frequency converter

: Schneider electrical original

Related products

We can offer machines for you as following :

(1)Cosmetics cream ,ointment ,skin care lotion ,toothpaste production line

From Bottle washing machine -bottle drying oven -Ro pure water equipment -mixer -filling machine -capping machine -labeling machine -heat shrink film packing machine -inkjet printer -pipe and valve etc

(2)Shampoo, liquid soap ,liquid detergent(for dish and cloth and toilet etc ) ,liquid wash production line

(3)Perfume production line

(4)And other machines ,powder machines ,lab equipment ,and some food and chemical machines

: RO Water Machine

: Bottle Washing Machine

: Bottle Drying Sterilizer

: Stainless steel storage tank

: Cream & Paste Filling Machine

: Labelling Machine

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, food chemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.

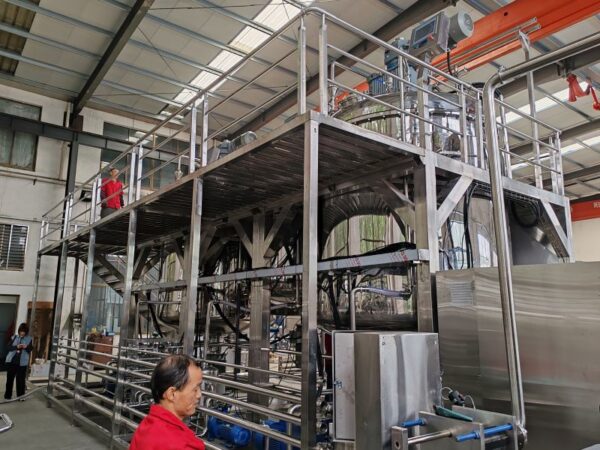

Workshop Production
