Description
Product Instruction

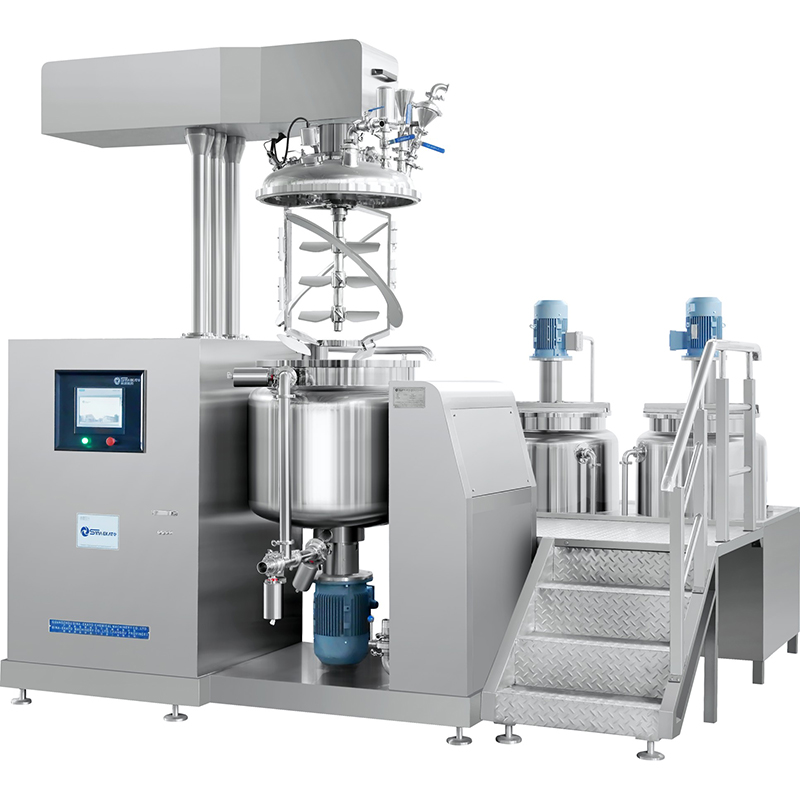

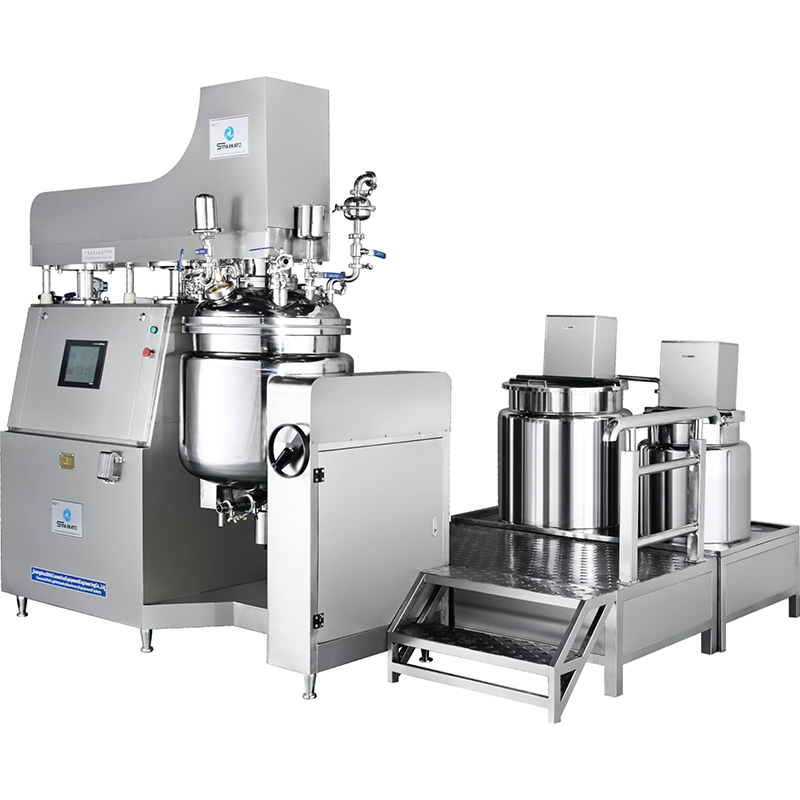

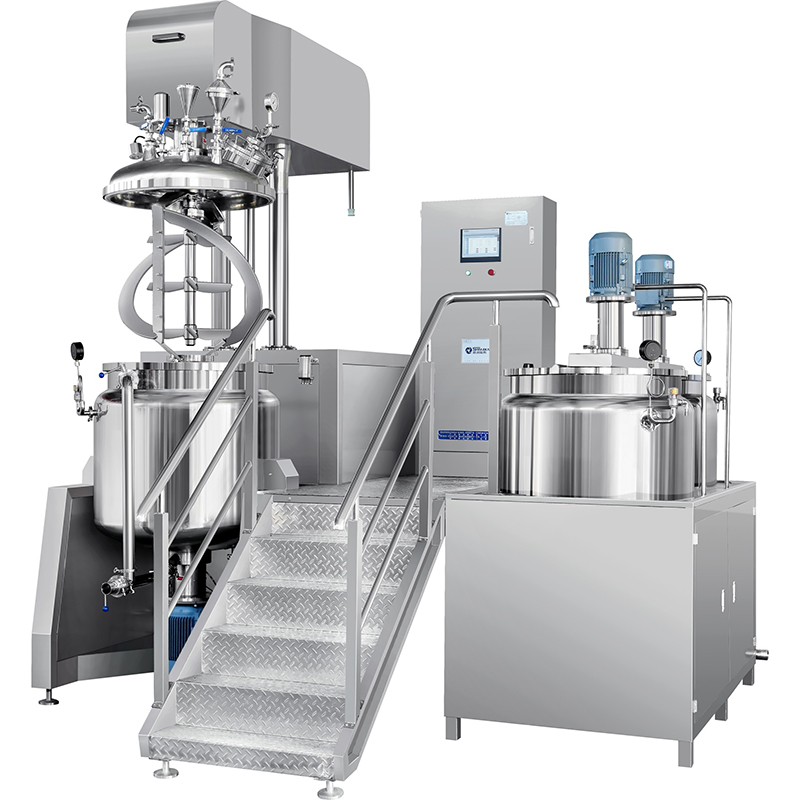

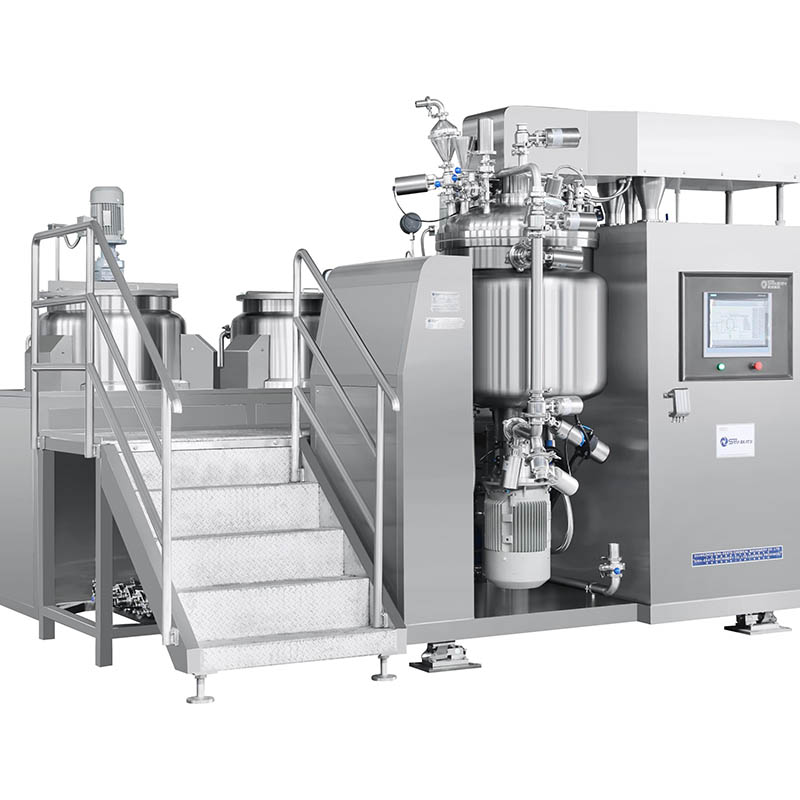

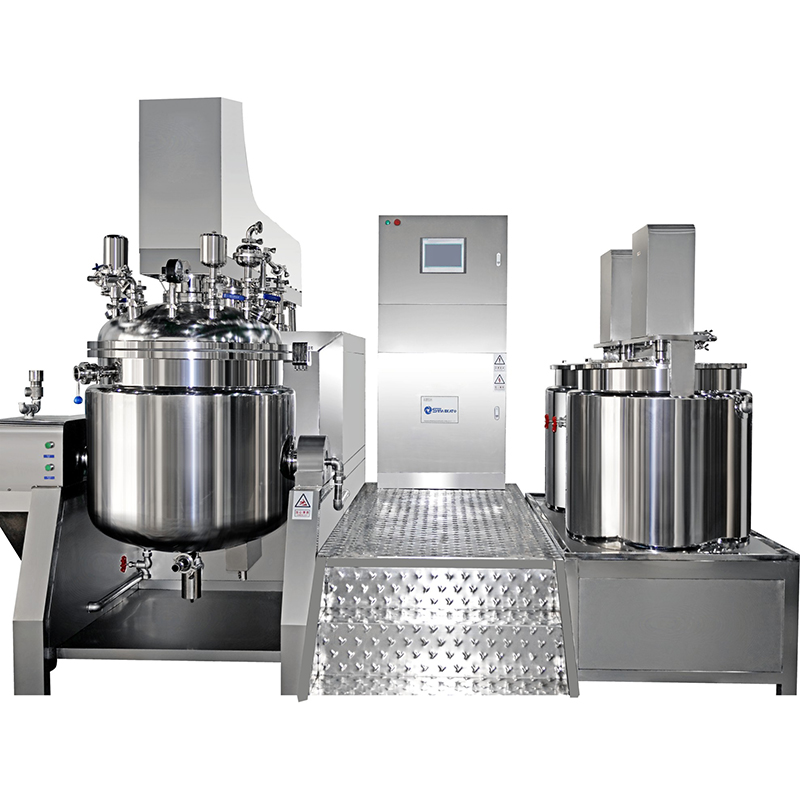

The machine composed of two pre-mixing pots, vacuum emulsifying pot, vacuum pump, hydraulic system, discharge system, electric control system and working platform etc.
The machine is easy operation, stable performance, perfect homogenizing performance high work efficiency, easy for cleaning, reasonable structure, occupy small space, highly-automatized.
Product Feature
1. Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
2. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust,especially for the powder products.
3. Mechanical sealing, good sealing effect and long working life.
4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5. Material contact parts all use SUS316L stainless steel.
6. The heating method mainly include electric or steam heating for customer’s choice.
7. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Customers Test
Product Detail
Application
The product is mainly applied in such industries as daily chemical care products biopharmaceutical industry, food industry, paint and ink, nanometer materials. petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide fertilizer, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Cream, Lotion Skincare
Shampoo/Conditioner/Detergent liquid washing products
Pharmaceutical,Medical
Mayonnaise Food
Projects
Product Parameters
| Model | Capacity | Mixing Power | Speed Variable | Homogenizer Power | Speed Variable | Heating Way | Lifting | Vacuum |
| SME-BE | 50L | 1.5KW | 0-63RPM | 3KW | 0-3000RPM | Electric heating or steam heating | Yes (Hydralic Lift up/down) |
Yes (-0.093Mpa-1.5Mpa) |
| 100L | 2.2KW | 4KW | ||||||
| 200L | 3KW | 5.5KW | ||||||
| 300L | 3KW | 7.5KW | ||||||
| 500L | 4KW | 11KW | ||||||
| 1000L | 7.5KW | 15KW | ||||||
| 2000L | 11KW | 18.5KW | ||||||
| 3000L | 15KW | 22KW | ||||||
| Accept Customized | ||||||||
