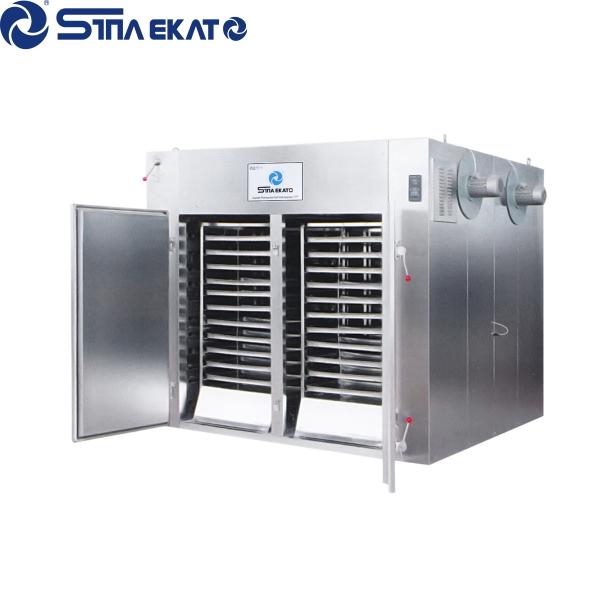

XHP-II Hot Circulated Drying Machine

The series of products completely adopt axial fan equipped with automatic constant temperature control system, which is provided with computer control system for option. The working principle is to make use of the steam or electric heat source, through heating the air by heat exchanger and adopting the axial fan as the driving power, the moisture content of hot materials is reduced so as to realize the purpose of drying.

Nearly all hot air cycle within baker, high heating efficiency, energy saving.
Utilizing forced heat air cycle within baker, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources.
Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance.
Various application; all kinds of materials drying; one of most common drying equipment.

Description

Application

Heat wind cycle baker can be used as drier of medicine, chemistry, food, agricultural and sideline products, sea food, light and heavy industries, such ad raw material medicine, Chinese herb, Chinese herb pill, extractum, powder, electuary. packing bottle, dye, paint, dehydration vegetable, fruit and nut, banger, plastic epoxy and components, bake paint etc.

Performances And Features

Heating source: Vapor, Heat conductive oil, hot water, electric heating pipe, FRI etc.
Operation temperature: Vapor heating ambient temperature ~140℃, Max 150 ℃.
Electric, FRI, ambient temperature~350 ℃.
Auto-control system and computer control system as option.
Common vapor pressure 0.2~0.8MPa.
Electro-heating (type 1)15kw.
Special requirements should be indicated while ordering.
No standard baker can be produced based on process parameter.
Operation ambient temperature exceed 140 ℃ or less than 60 ℃ should be marked out while ordering.
Bake vehicle and tray’s dimension are standard, changeable.
Bake tray dimension:460×640×45mm

Technical Parameter

Model Evaporating Area（㎡） Heating Power(KW) Fan Power(KW)

XHP-100(Single Door） 7 9 0.45

XHP-200(Double Doors） 14 15 0.45

Note: Filling precision ±1%. In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail
