Lab High Shear Homogenizing Emulsifying Machine

Description

Application

For small products, emulsion, uniform dispersion, simple operation, stable performance, widely used in laboratory science experiment, new product development and production of simulation.

Working principle:

Homogenizer is with special structure, which can ensure the rotor of homogenizer can has high rotating speed to produce strong liquid shear force and drastic high-frequency mechanical effect to make finished product cut, dispersed and homogeneous under the action of tremendous centrifugal force, through the rotor and stator mutual shearing and dispersing,to make the experimental content with as high as tens of thousands of times per minute of the shearing,mixing and dispersing.

Features and Advantages

1, Claw type structure, two-way absorb

2, Stepless speed regulation, digital display

3, low noise, can work long hours

4, head can quickly remove scattered, convenient and clean

Technical Parameter

Item	Value
Mixer Type	Homogenizer
Material Processed	Chemicals, Food
Max. Loading Volume (L)	5L
Weight (KG)	21KG
Material	SUS304, SUS304L, SUS316, SUS316L
Product Type	Cosmetic
Application	Viscous Fluid
Additional Capabilities	Milling
Voltage	220V50hz
Dimension(LWH)	33×23×58cm
Power (kW)	0.3kW
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Product name	Emulsion machine lab mixer homogenizer
Material	Stainless Steel 304 / SUS316L
Homogenizer	200-11000 R/min
Usage	Mixing Paste Proucts
Keyword	High Speed Dispersing Machine
Application scope	Chemical Cosmetic Food
Machine Name	High Shear Homogenizing Emulsifying Machine
Mixing type	High Speed Emulsifier

Product Details

Laboratory high shear homogenizer

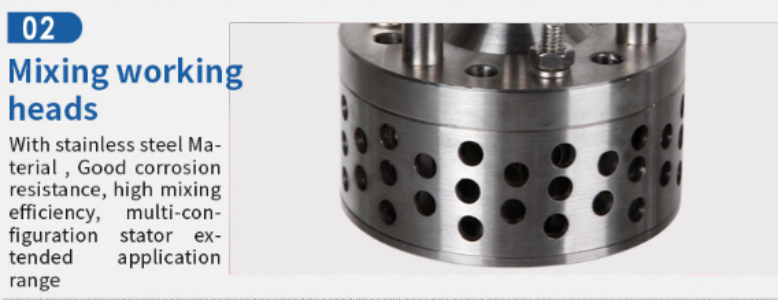

The operation process of changing the stator First unscrew the three nuts @with the supplied wrench, remove the three screws @remove the outer stator ring from the step of the stator base 3 of the working head, remove the stator @that is not suitable, and then apply the appropriate The stator is insert-ed, and then the outer ring and the screw are installed, the three nuts are evenly synchronized and slightly tightened, and the driveshaft @ is moved by hand, and there should be no periodic looseness.

Related products

We can offer machines for you as following :

(1)Cosmetics cream ,ointment ,skin care lotion ,toothpaste production line

From Bottle washing machine -bottle drying oven -Ro pure water equipment -mixer -filling machine -capping machine -labeling machine -heat shrink film packing machine -inkjet printer -pipe and valve etc

(2)Shampoo,liquid saop ,liquid detergent(for dish and cloth and toilet etc ) ,liquid wash production line

(3)Perfume production line

(4)And other machines ,powder machines ,lab equipment ,and some food and chemical machines

: RO Water Machine

: Bottle Washing Machine

: Bottle Drying Sterilizer

: Stainless steel storage tank

: Automatic aluminum foil sealing machine

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, foodchemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.

Workshop Production

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.
