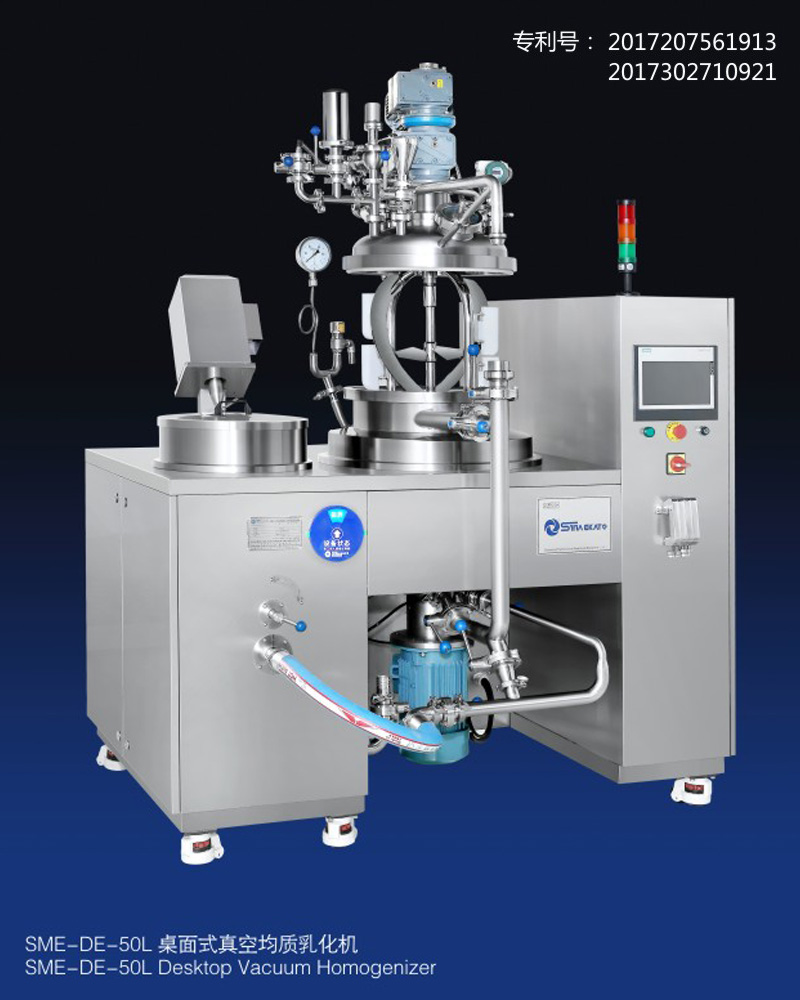

SME-DE-50L Desktop Vacuum Homogenizer Emulsifying Mixer

Description

Machine video

Application

With its advanced technology and user-friendly interface, this mixer is ideal for use in research laboratories, pharmaceutical companies, cosmetic industries, food processing plants or any other industry where precise mixing or emulsification is required. Its compact size also makes it an excellent choice for mobile labs or fieldwork.

Proformance And Features

1. It adopts European classic tabletop structure, and brushed stainless steel is beautiful and generous.
2. The homogenizer is placed at the bottom of the pot, the rotating shaft is very short, and there will be no shaking. The material enters from the bottom of the pot, enters the pipe outside the pot through the homogenizer, and then returns to the liquid level from the top of the pot for external circulation, which can fully ensure that all materials have an equal opportunity to flow to the homogenizer, so that the paste particles are controlled below 5 microns, and more delicate. At the same time, the external circulation can also be used as a discharge pump;
3. The main body of the homogenizer is similar to the structure of the centrifugal pump impeller. By using the centrifugal force generated, the thrown material passes through the homogenization mechanism composed of two fixed toothed rings (inner and outer stators) and one moving toothed ring (rotor). The material is crushed by intense shearing. The homogenization efficiency can be improved by 30% through multi-layer shearing, and the particles can be distributed in a narrow range;
4. The discharge pressure generated by the homogenizer (up to 3 bar) can be used for the discharge of high-viscosity finished products. The homogenizer has CIP cleaning function, which can shorten the cleaning cycle, improve the cleaning efficiency and save water.
5. With memory storage function.
6. PLC controls and reserves the interface port with MES.

Specification

– Contra-rotating slow mixing with teflon scrapers
– Homogenizing turbine (speed up to 3.600 rpm)
– Control Panel T&S color kind to show all the main machine.
– Mechanical lifting of the cover
– Mechanical vessel tilting to facilitate the finished product discharge
– Essences little hopper
– Central bottom valves to suck undervacuum raw material or discharge the finished product.
– Inspection window with light to check the mixing phases.
– Different optionals available to satisfy the different customer needs such as:
– cleaning system by spray balls
– printing of production data
– heating by steam or electric

Technical parameter

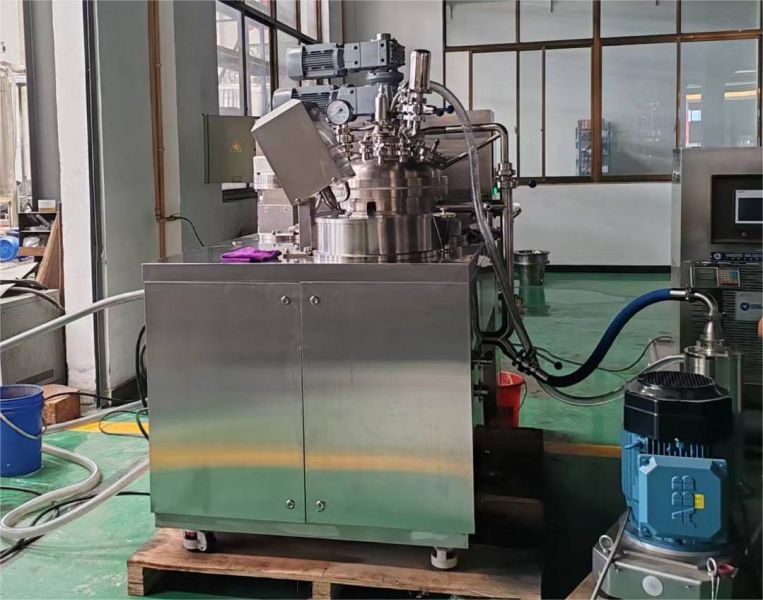

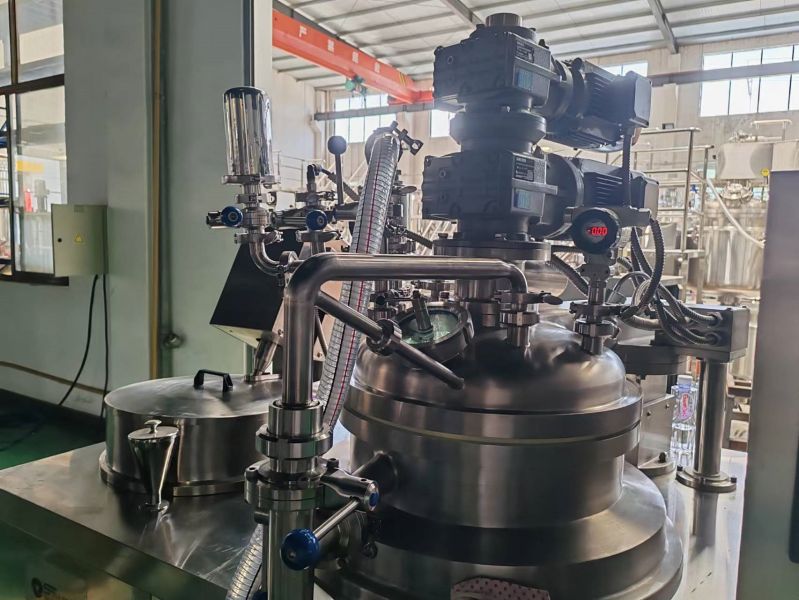

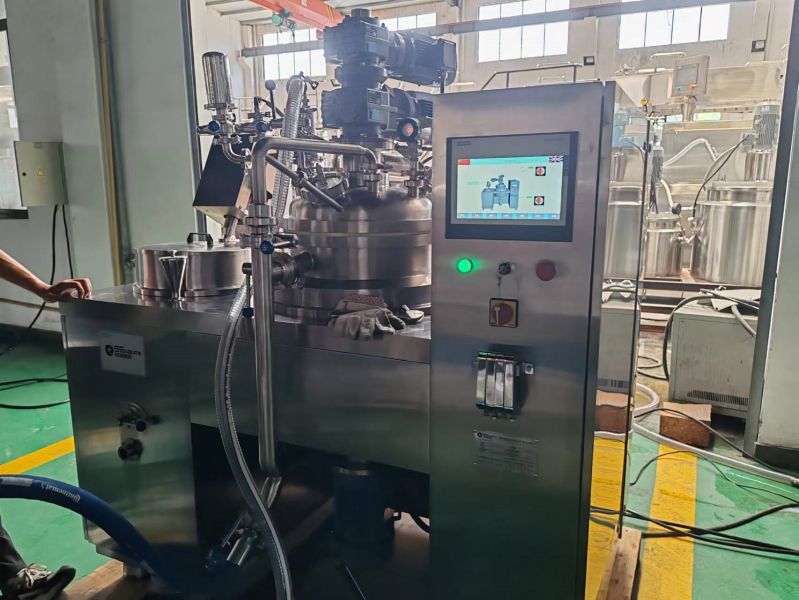

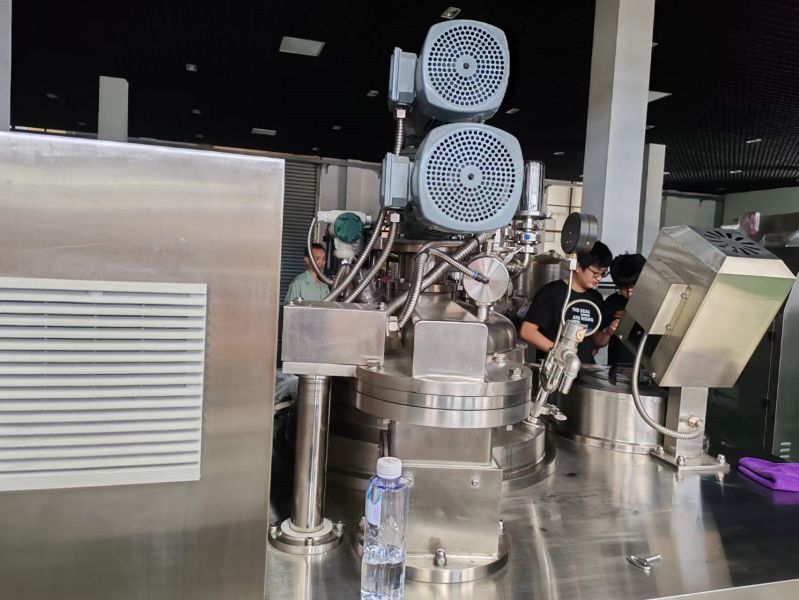

Product Details
