Description
Instruction
It is widely used in industries with high requirements for cleaning, such as daily chemical, biological fermentation, and pharmaceuticals, in order to achieve the effect of sterilizing. According to the process condition, single tank type, double tanks type, separate body type can be chosen. Smart type and manual type are also optional.
This washing machine is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

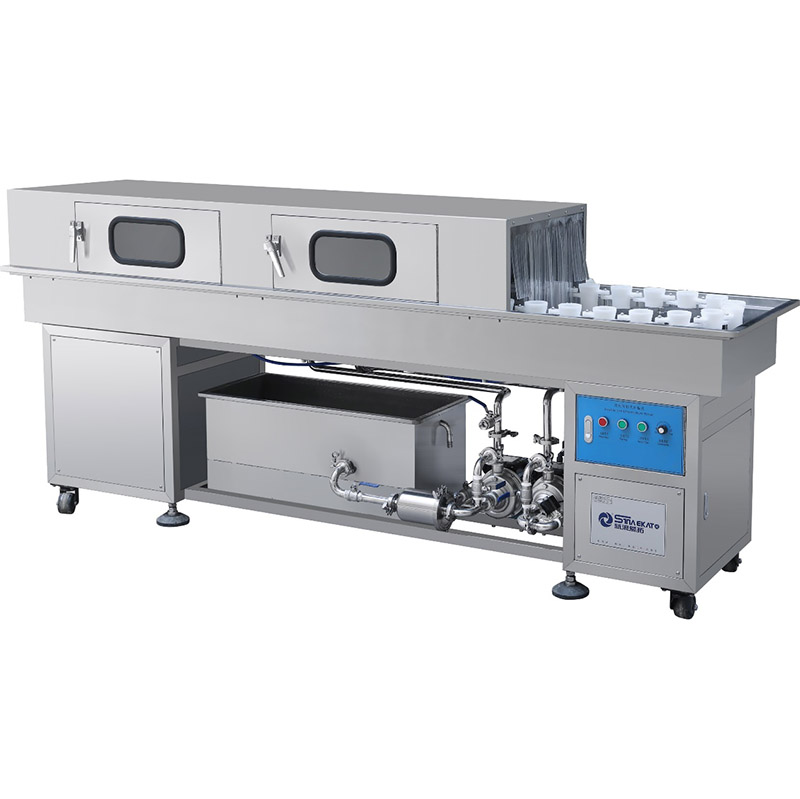

The bottle washing machine consists of a stainless steel water pump, a high-pressure nozzle, and an electrical box. Special equipment suitable for brush cleaning and water flushing cleaning of glass bottles, plastic bottles, etc., either alone or in combination. High pressure backwash spray washing is used to timely separate the impurities on the bottle wall and fall into the water tank.
Technical Parameter
| Washing Heads | 48pcs |
| Applied Bottle Range | 30-300ml |
| capacity | 3000bottles/hour |
| Power | 1.5KW/220V |
| Suitable Bottle Height | 100-350mm |
| suitable Bottle Diameter | 20-90mm |
| Water Consumption | 1.5CBM/hour |
| Working Pressure | 0.2-0.4MPa |
| Machine Size | 2700x670x1180mm |
Features
1.Applied in rinse varies kind of new and old bottles with different materials.
2.Inside and outside wash, clean and sanitary.
3.Simple structure and easy maintenance, adopts the SS storage tank which is resistance to corrosive.
4.High productivity, suitable for Small Medium Enterprise.
Equipent Charcteristics
– Fully pneumatic control
– Wide suitability
– High filling accuracy
– Labor saving
– Easy to use and maintain

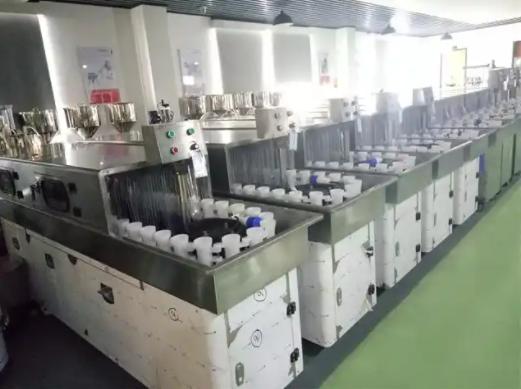

Production Base
