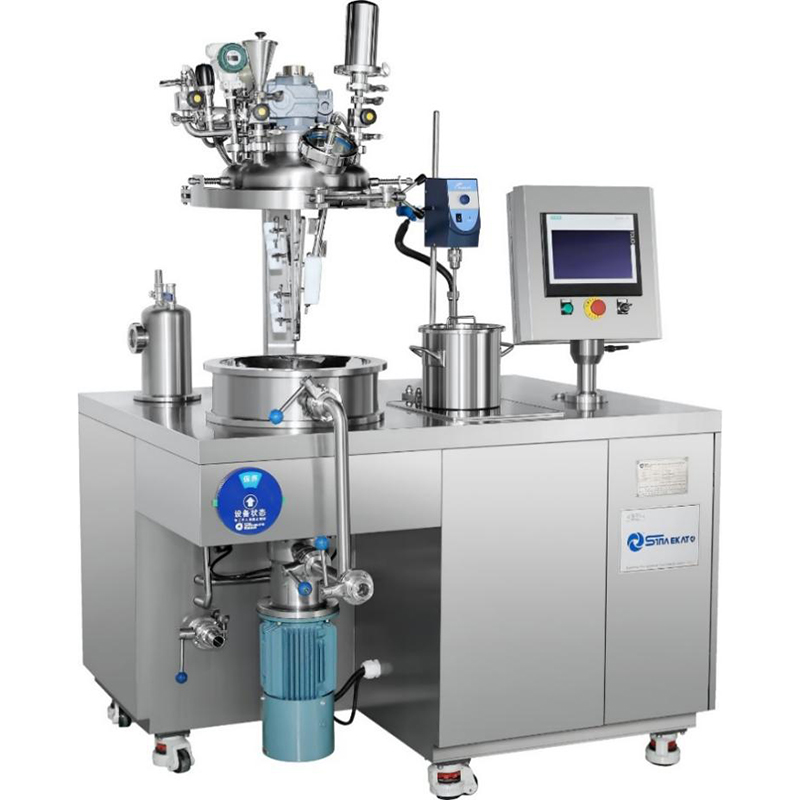

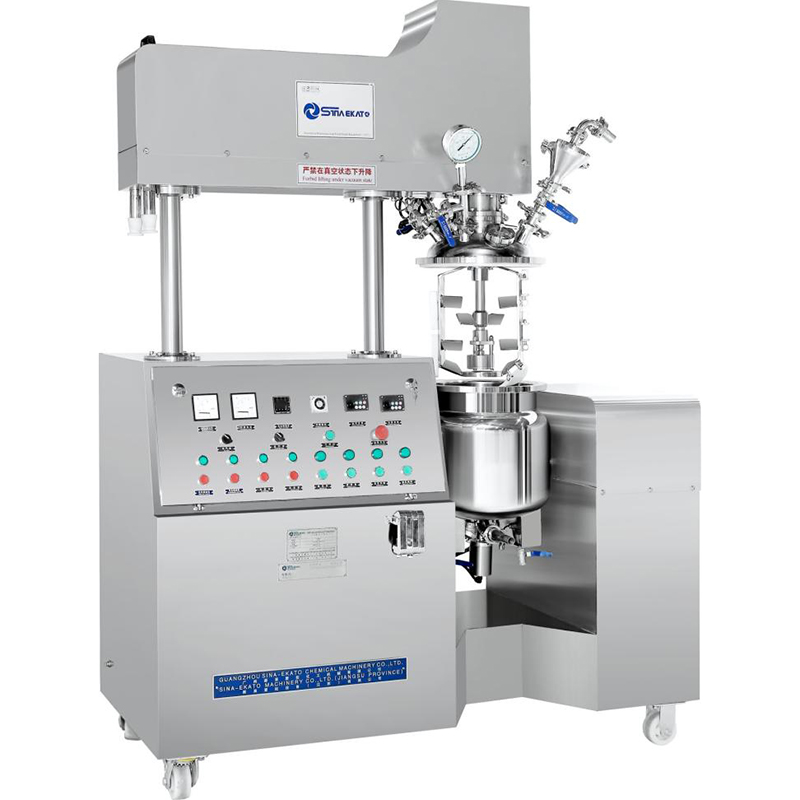

5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer

Description

Features

1. It adopts European classic tabletop structure, and brushed stainless steel is beautiful and generous.
2. The homogenizer is placed at the bottom of the pot, the rotating shaft is very short, and there will be no shaking. The material enters from the bottom of the pot, enters the pipe outside the pot through the homogenizer, and then returns to the liquid level from the top of the pot for external circulation, which can fully ensure that all materials have an equal opportunity to flow to the homogenizer, so that the paste particles are controlled below 5 microns, and more delicate. At the same time, the external circulation can also be used as a discharge pump;
3. The main body of the homogenizer is similar to the structure of the centrifugal pump impeller. By using the centrifugal force generated, the thrown material passes through the homogenization mechanism composed of two fixed toothed rings (inner and outer stators) and one moving toothed ring (rotor). The material is crushed by intense shearing. The homogenization efficiency can be improved by 30% through multi-layer shearing, and the particles can be distributed in a narrow range;
4. The discharge pressure generated by the homogenizer (up to 3 bar) can be used for the discharge of high-viscosity finished products. The homogenizer has CIP cleaning function, which can shorten the cleaning cycle, improve the cleaning efficiency and save water.
5. With memory storage function.
6. PLC controls and reserves the interface port with MES.

Specification

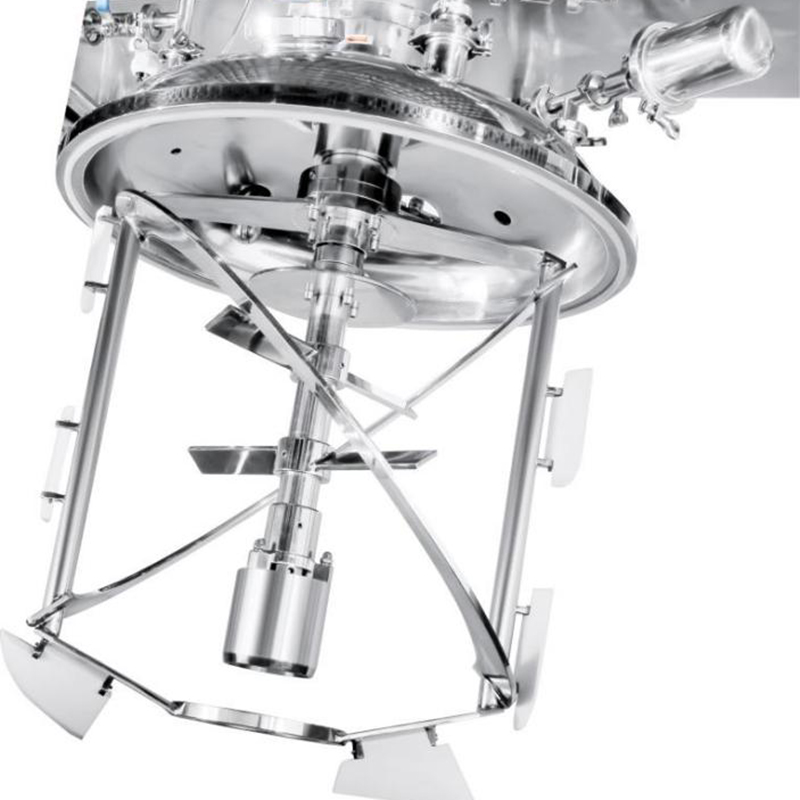

– Contra-rotating slow mixing with teflon scrapers
– Homogenizing turbine (speed up to 3.600 rpm)
– Control Panel T&S color kind to show all the main machine.
– Mechanical lifting of the cover
– Mechanical vessel tilting to facilitate the finished product discharge
– Essences little hopper
– Central bottom valves to suck undervacuum raw material or discharge the finished product.
– Inspection window with light to check the mixing phases.
– Different optionals available to satisfy the different customer needs such as:
– cleaning system by spray balls
– printing of production data
– heating by steam or electric

Model	Material Capacity	Homogeneous Motor		Stirring Motor		Overall Dimension			Total Power(KW)	Limiting Vacuum(Mpa)
Model	Material Capacity	KV	r/min	KV	r/min	Long(mm)	Wide(mm)	High/Full Height(mm)	Total Power(KW)	Limiting Vacuum(Mpa)
SME一DE10	10L	2.2	6000	0.55	0-93	1300	1000	1400/1900	10	-0.097
SME-DE20	20L	2.2	6000	0.75	0-93	1200	1200	1500/2000	10	-0.097
SME-DE30	30L	4	4500	1.1	0-83	1400	1400	1500/2000	17	-0.097
SME-DE50	50L	4	4500	1.7	0-83	1600	1100	1900/2400	10	-0.097

Main Components Used

a) Mixer: It is made by Germany Siemens motor
b) Drawing & final specification should be sent to customer for approval before production
c) Equipment made in China by international companies must be interchangeable with equipment made in Europe
d) All welding should be tested with liquid penetrant.
e) Minor modifications & changes if needed with no charge.

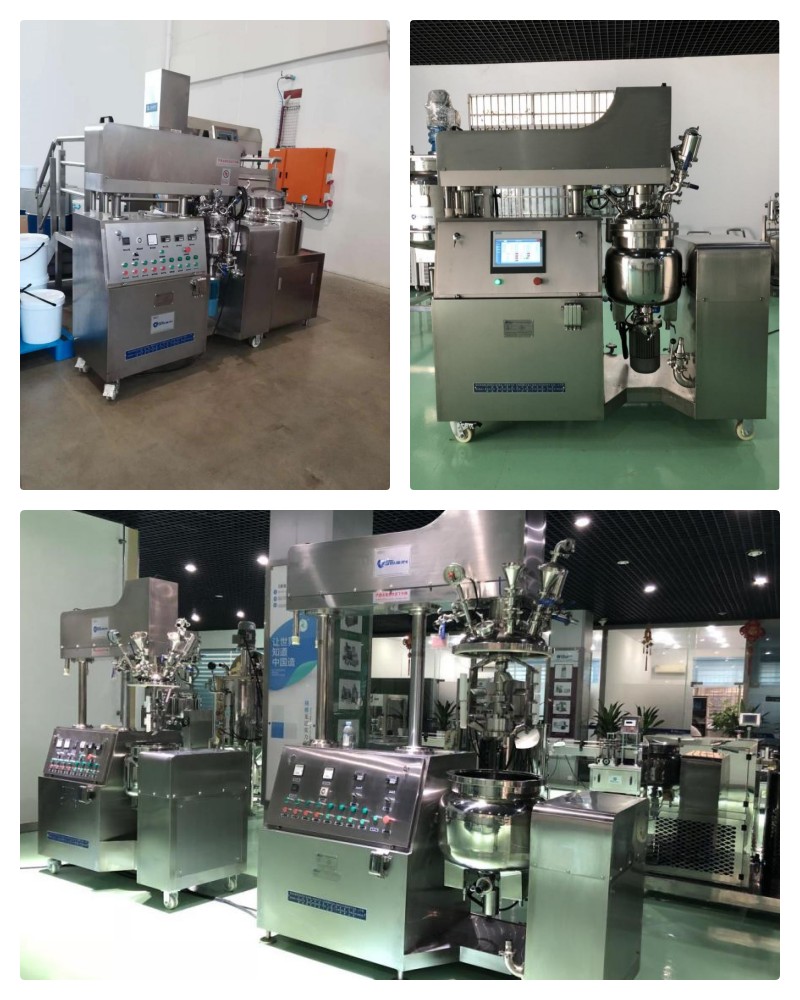

Machine Display

Tube Filling & Sealing Machine (Semi-auto & Full-auto)

Our Production Base

(Around 10000 square meters production base with 150 employees)

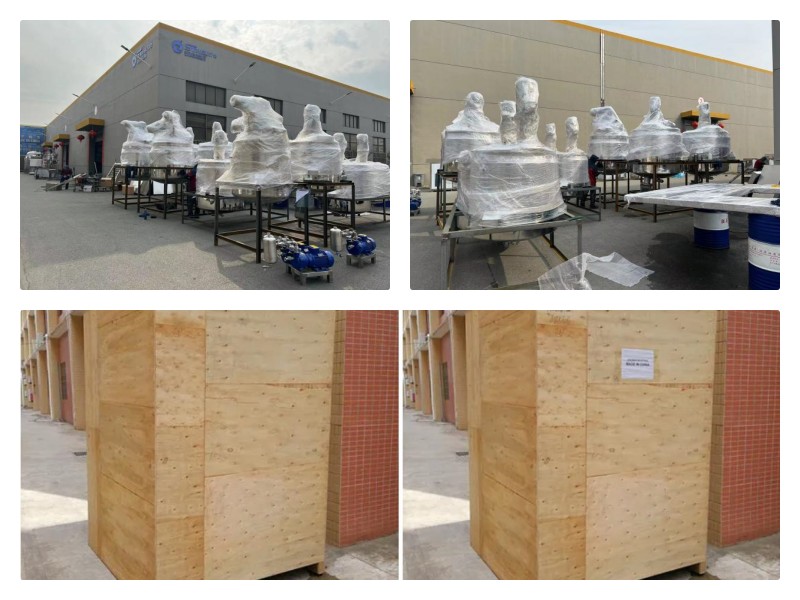

Packing & Delivery

Packing details: The normal package is wooden box (Size: L*W*H). If machine is delivery to European countries, the wooden box will be fumigated. If container is too tighter, we will use PE film for packing or pack it according to customer’s special request.
