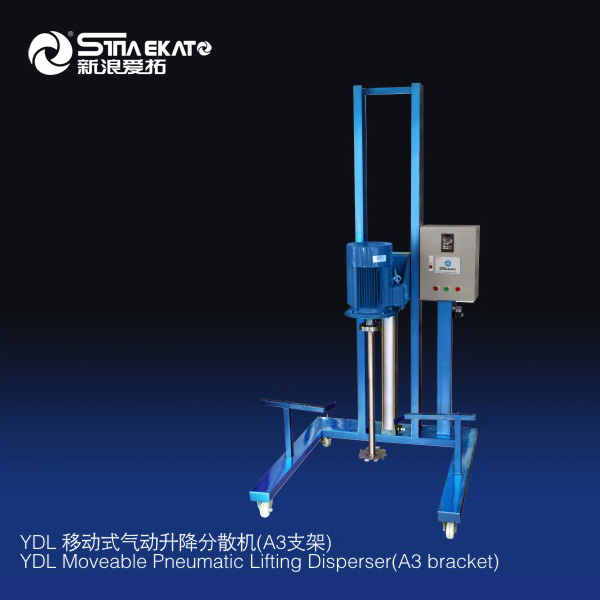

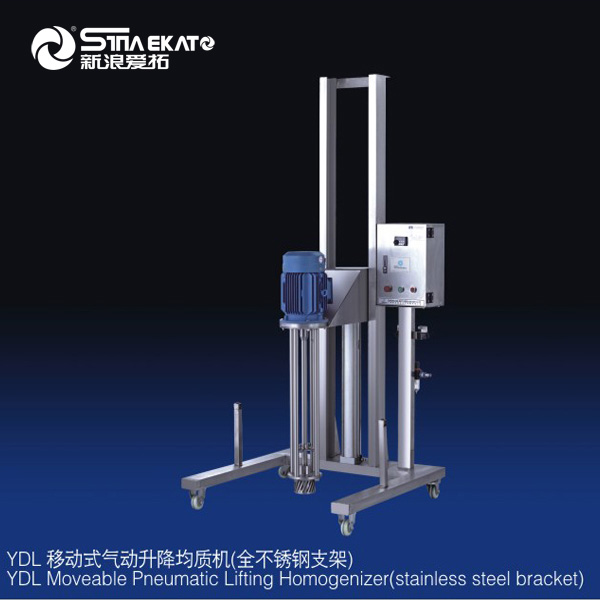

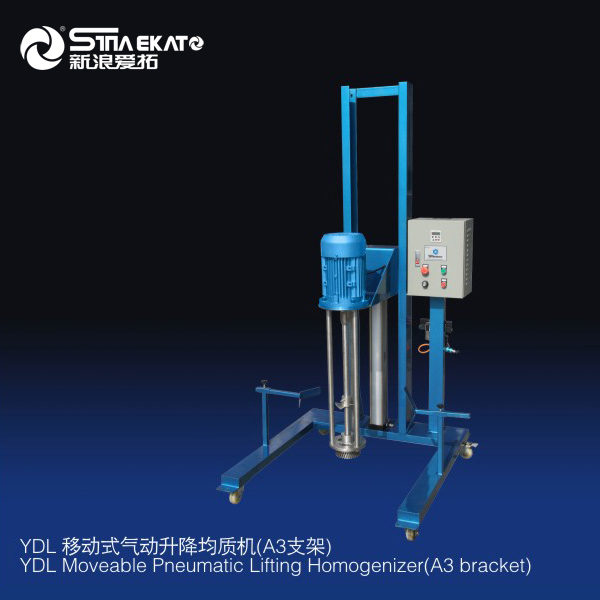

YDL Electrical Pneumatic Lifting High Speed Shear Dispersion Mixer Homogenization Machine

Description

Product Introduction

The shear head adopts a claw and two-way suction structure, which avoids the dead angle and vortex caused by the difficulty of upper material suction. The high-speed rotating rotor produces strong shear force, which makes the shear rate higher and the shear force stronger. Under the centrifugal force generated by the rotor, the material is thrown into the narrow and precise gap between the stator and rotor from the radial direction, and at the same time, it is subject to centrifugal extrusion, impact and other forces, so that the material is fully dispersed, mixed and emulsified.

Note: If it is used on vacuum or pressure vessels, the shear needs to be equipped with corresponding mechanical sealing devices

The high speed shear emulsifier integrates the functions of mixing, dispersing, refinement, homogenization, and emulsification. It is usually installed with the kettle body or on a mobile lifter stand or a fixed stand, and is used in conjunction with an open container. High shear emulsifiers are used in emulsification and homogenization production processes in various industries such as food, pharmaceuticals, cosmetics, chemicals, mining, paper making, water treatment, and fine chemicals.

High shear mixers developed by our company are based on the theory of stability of emulsion. The mechanical equipment uses the mechanical energy provided by the system of high shear rotor stators with high speed rotation to blend one phase into the other. Depending on the deformation and rupture of the thick droplets, the thick droplets will break into micro-droplets, ranging from 120nm to 2um. Finally, the liquid droplets are completed as regards a uniform emulsification process.

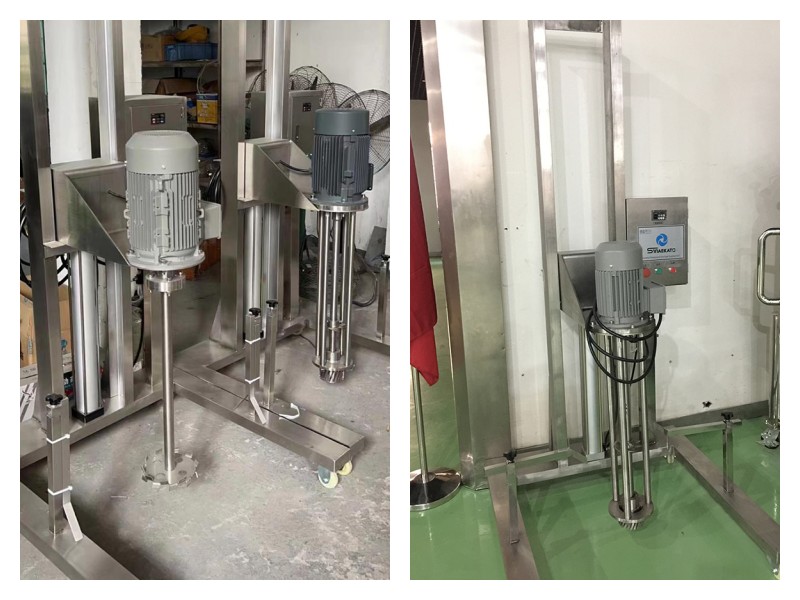

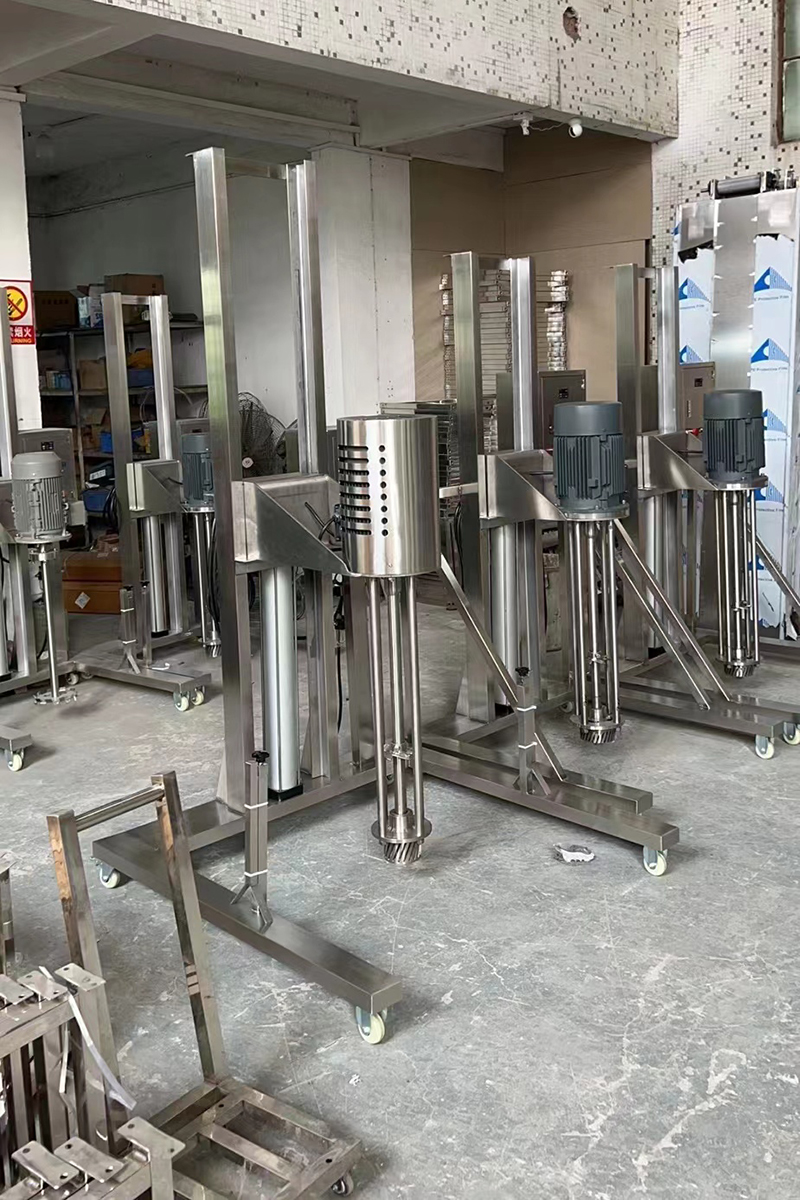

Actual Photo

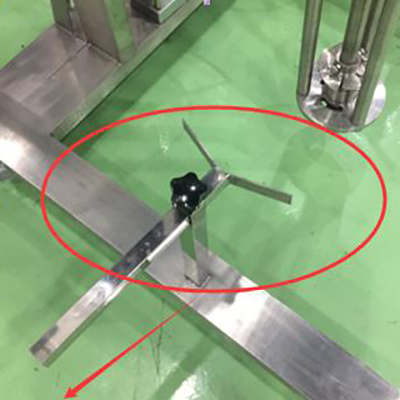

Adjustable X stand for make tank stable or move

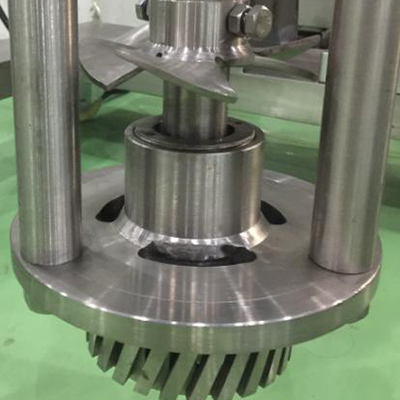

Homogenizer head (shape can customized)

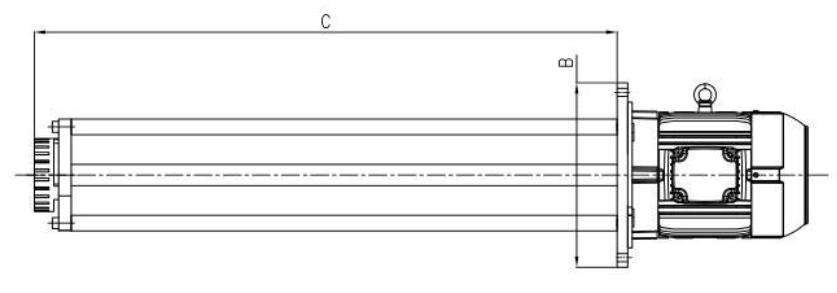

Specification

Model	Power(Kw)	Speed(r/min)	C(mm)	B(mm)	Processing capacity(L)
YDL	1.5	2900	430-530	270	10-70
	2.2	2900	550-650	270	50-150
	4	2900	750-1000	320	100-400
	7.5	2900/1450	830-1100	380	200-1000
	11	2900/1450	830-1700	450	300-1500
	18.5	2900/1450	1150-1950	450	500-2000
	22	2900/1450	1200-1950	485	800-2500
	30	2900/1450	1350-2700	485	1000-3500
	37	2900/1450	1350-2700	485	1500-6000
	55	1450	1600	640	2000-10000
	75	1450	1600	640	3000-12000
	90	1450	1600	640	4000-15000
	110	960	1600	755	5000-17000
	132	960	2000	755	6000-18000
Can be customized
