GL Steam Generator Steam Boiler

Description

Product Instruction

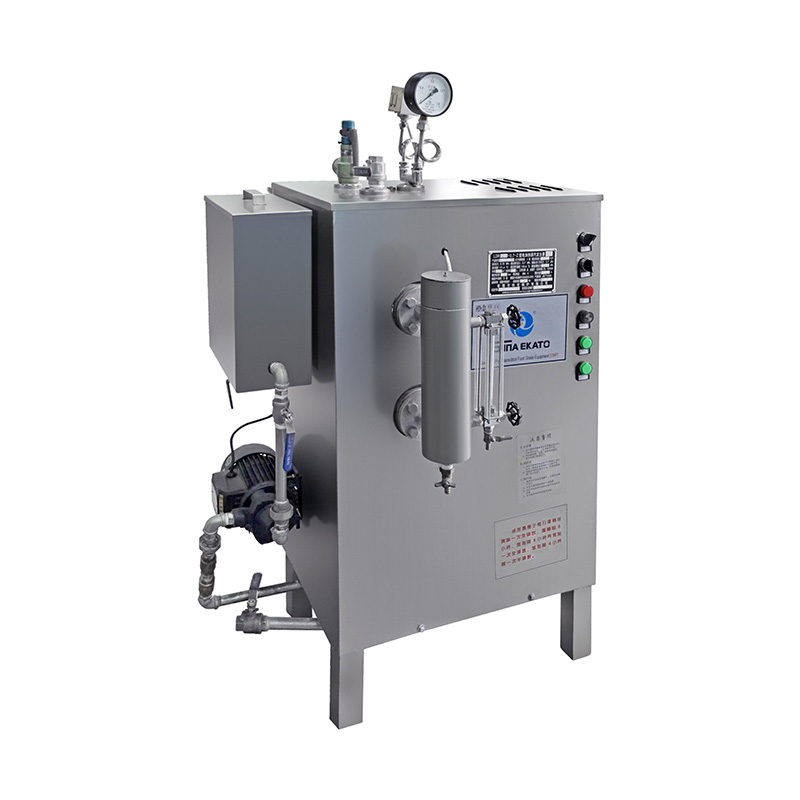

GL electric generator is to boil water in the container by electric heating tube, thus cause steam and convey steam into steam cabinet.

According to fuel, steam boilers can be divided into electric steam boilers, oil fired steam boilers, gas fired steam boilers, etc; According to the fuel supply mode, steam boilers can be divided into manual combustion steam boilers and fully automatic chain combustion steam boilers; According to the structure, it can be divided into vertical steam boilers and horizontal steam boilers. Smaller steam boilers are mostly of single and double return vertical structures, while large steam boilers are mostly of three return horizontal structures.

A steam generator, also known as a steam heat source machine (commonly known as a boiler), is a mechanical device that uses the heat energy of fuel or other energy sources to heat water into hot water or steam. The original meaning of a boiler refers to a water container heated over a fire. A furnace refers to a place where fuel is burned. A boiler includes two parts: a boiler and a pot.
Good material, Excellent quality SS304 high-quality stainless steel water tank.

Specification

Power(Kw)	Rated Steam Capacity(Kg/h)	Rated Steam Pressure(Mpa)	Voltage(V)	Dimension(cm)
4	6	0.4-0.7	220/380	48x32x60
6	8	0.4-0.7	220/380	50x35x68
9	12	0.4-0.7	220/380	55x35x80
12	16	0.4-0.7	380	55x38x80
18	24	0.4-0.7	380	58x45x110
24	32	0.4-0.7	380	58x45x110
36	50	0.4-0.7	380	70x50x130
48	65	0.4-0.7	380	70x50x130
60	85	0.4-0.7	380	80x60x145
72	108	0.4-0.7	380	85x70x145

Housing of SS304 or carbon steel with galvanized and powder coating, corrosion-resistant, excellent color and gloss retention.
Easy Maintenance electrical probe for water level control
Water inlet valve enhanced for 10 million operations.
Excellent insulated steam boiler improves energy efficiency and safe operation.
Stainless Steel Auto Steam Generator, Sauna Steam Bath, with good performance
Promotes well being and a total body experience.
