Lipstick Wax Ink Paint High Viscosity Paste Three-Roller Grinding Mill Rolling Machine Three Roll Mill

The three-roll grinding machine, which is also known as three-roll mill, is a cosmetic machinery to grind different kinds of ingredients such as printing ink and pigments. Thus, it is widely used in the production of cosmetic, ink, food, drink and so on. The liquid phase will be improved through a series of cutting and grinding. Basically, there are three horizontal rolls in the machine: feeder, center and apron. When the cosmetic machinery begins to work, three rolls will rotate in the opposite direction and the different speeds, through which the high shear will be produced. With the high shear force, the phase will be mixed, refined, dispersed or homogenized effectively.

Description

Machine Video

Application

Three-roller grinding machines are commonly used in industries that require precise control over the particle size and distribution of the final product, including the cosmetics, pharmaceuticals, and food industries.

Performance & Features

The machine consists of three horizontally positioned rollers that rotate in opposite directions, with each roller having a different speed and direction.

The material to be ground is fed between the rollers, and the pressure between them causes the particles to be compressed and sheared, resulting in a fine, homogeneous mixture.

The rollers in a three-roller grinding machine can be made of various materials, depending on the type of material being ground. typically made of high-quality stainless steel or ceramics for durability and corrosion resistance.

The machine is designed to be easily adjustable, so operators can fine-tune the pressure and speed of the rollers to achieve the desired particle size and consistency.

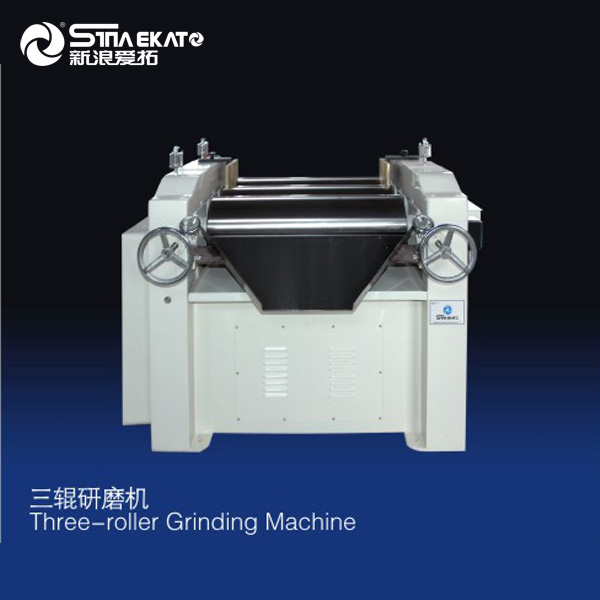

Product Details

Product inlet

1/Between the fast and middleroller.

2/Grind the products in fineness.

Middle and slow rollers

1/Second time grinding

2/Increase the grinding effect.

Product outlet

1/The product will come out fromthis plate once finished

Power switch

1/Green button is turn on switch.

2/Red button is turn off switch.

Wheel to adjust the distance

1/The black wheel is to adjustthe distance between the rollers.

2/The small roll is to adjust thegradient of the product outlet

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

Company Profile

With the solid backing of Jiangsu Province Gaoyou City Xinlang Light

Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKATO Chemical Machinery Co., Ltd. is a professional manufacturer of various types of cosmetic machinery and equipment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises such as Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., Ltd., Liangmianzhen Group, Zhongshan Perfect, Zhongshan Jiali, Guangdong Yanor, Guangdong Lafang, Beijing Dabao, Japan Shiseido, Korea Charmzone, France Shiting, USA JB, etc.
