Automatics Rotary Piston Multifunctional Filling and Capping Machine

Description

Application

Daily cosmetic
hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food & Pharmaceutical
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

Performances And Features

1.Versatility: The machine can handle a wide range of cosmetics, including creams, lotions, serums, oils, and other similar products.

2.Precise Filling Accuracy: The rotary piston mechanism allows for precise control over the volume of product dispensed, ensuring consistent fill levels.

3.Rotary Piston Mechanism: This machine utilizes a rotary piston mechanism, which ensures precise and consistent filling of cosmetic products.

4.Adjustable Filling Volume: The machine is equipped with volume adjustments for accurately filling various container sizes and product quantities.

5.High-Speed Production: Despite its compact size, the machine is capable of high-speed production, ensuring efficient throughput.

6.Multiple Capping Options: The capping system is customizable to accommodate different types of caps, including screw caps, snap-on caps, or pump dispensers.

7.Easy-to-Use Control Panel: The machine is equipped with an intuitive control panel, simplifying operations and allowing for easy adjustment of settings.

8.Quality Sealing: The capping system ensures reliable and secure sealing of containers, preventing leakage and maintaining product integrity.

9.Compact and Space-Saving Design: The desktop design of the machine ensures it occupies minimal space, making it suitable for smaller production environments or laboratories.

10.Easy Maintenance: The machine is designed for easy maintenance and cleaning, minimizing downtime and maximizing productivity.

Technical Parameter

Product name
Filling Range	5-500ml customized
Bottle Height	50mm-200mm
Filling Nozzles	Lifting Japan Panasonic Motor
Hopper	40L (can be customized
Filling Speed	30-50 bottles per minute
Air Cleaning	Static elimination air cleaning, vacuum suction
Filling System	Japan Panasonic otor
Voltage	220Vcan be customized

Product Details

1.Detection electronic eye Equipped with high quality electriceye,this can be used to detectbottles and make the machinestart or stop to work. The sensitivityof the electric can be adjusted bythe adjusting part. Improves working accuracy.

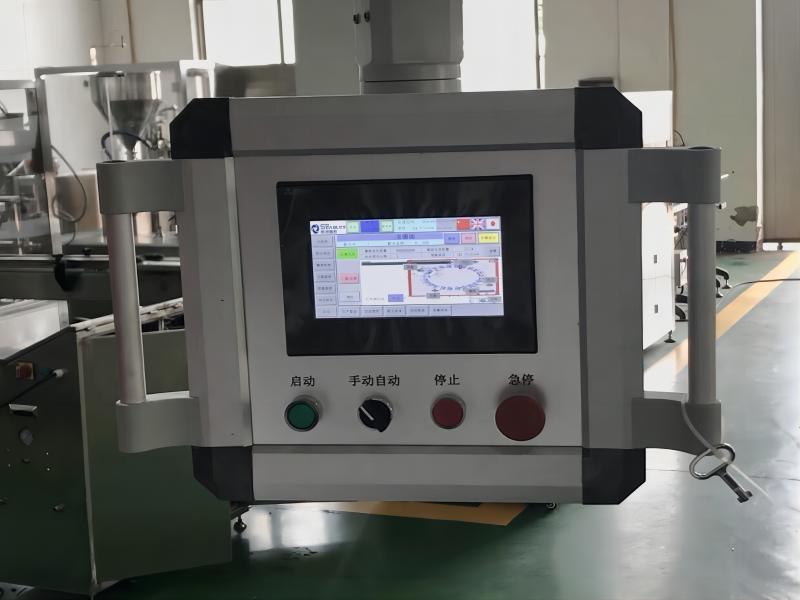

2. Intelligent control panel and touch screen control panel

Working parameters can be set easily without the need to train operators, which helps improve work efficiency. Operation panel language can be customized in different languages, if you need, please contact us

3.Suitable for filling both high and non viscosity products, Japan Panasonic servo motor control, the filling precision is 0.5gfilling rang 5-500ml. Height adjustable Fit for different height bottle ,easy to adjust and more flexible

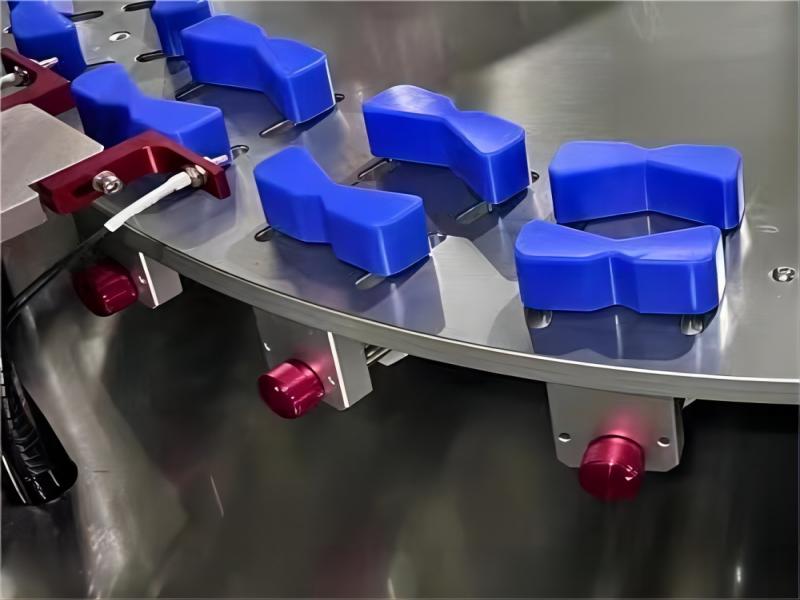

4.Adjustable mold The blue molds are adjustable, they are suitable for different shapes and sizes of glass/plastic bottles & jars from 5-500mlno need any tools to adjust, only by manual, very quick to adjust

5.Anti-drip filling nozzle Equipped with two filling nozzles,andeach one can be controlled separatelyThe filling nozzle can be customizedaccording to filling materials,makesthe machine works better with yourproducts This machine is equippedwith high quality filling pump,ensuresfilling accuracy.

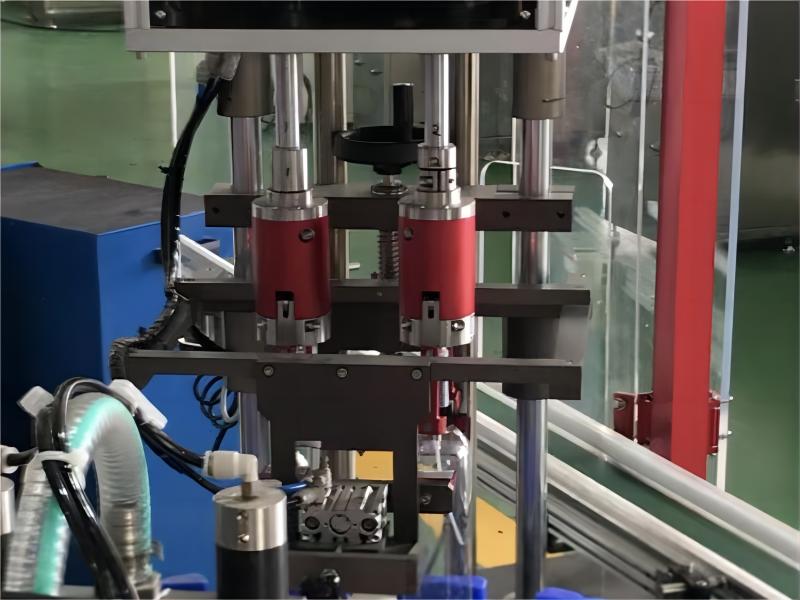

6.Two screw capping Suitable for capping both small mouth and wide mouth bottles/jars
