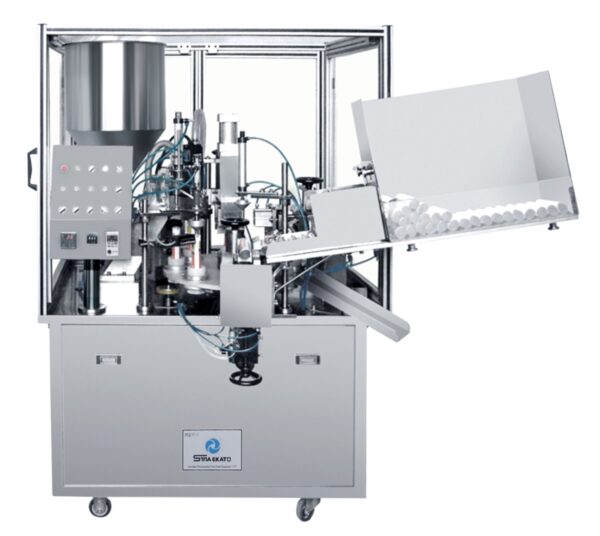

GZF automatic laminated tube filling and sealing machine

This product is our company’s foreign technology using, combined with the requirements of GMP optimization design and development of successful high-tech equipment. It has the characteristics of reasonable structure, complete function, convenient operation, accurate loading, stable operation and low noise. Adopt PLC programmable controller to make the whole machine run program, from liquid to high viscosity fluid material (paste) filling and folding to code batch number (including production date) and other processes automatic operation. Is cosmetic, pharmaceutical, food, adhesives and other industries of aluminum pipe, plastic pipe, composite pipe filling and sealing the ideal equipment, in line with the GMP specification requirements.




he series of machine is widely suitable for filling and sealing products packed by tubes in such industries as cosmetics, toothpaste, medicine, food, chemical industry, etc.

Working Principle

The high frequency vibration acts on the two inner surfaces of the plastic tube, and the heat generated by the vibration causes these two surfaces to be welded together tightly. The strength of the welded area is the same as that of the original plastic. There is no need for adhesive or heating, which replaces the traditional hot pressing or bonding process. It is a low-cost method that does not lead to pollution or damage to the plastic tube.


Performances And Features

1) High grade LCD programming controller and button combined operation video screen, fully grasp the equipment stepless speed regulation, parameter equipment, output count statistics, pressure indicator, fault display and other operating conditions, so that the operation is simple and user-friendly.

2) The whole process of fully automatic pipe supply, marking, inert temperature gauge (optional), filling, folding, coding and finished products outlet.

3) High precision calibration system reduces the range of color difference between the tube body and the color standard.

4) External adjustment part, position digital display, quick and accurate adjustment (suitable for multi-specification, multi-variety production).

5) Integration of machine, light, electricity and air, no pipe without filling in the real column, the supply pipe is not in place, low pressure, automatic display (alarm); Open the protective door can stop automatically and other automatic functions.

6) If the rejection rate is not caused by the demander’s pipes, the qualified rate of the equipment shall be above 99.5%.

Technical Parameter

1) Model GZF
2) Description : Filling and Sealing Machine
3) Packaging Speed : 3,000 – 3,600 pcs / hour
4) Filling Volume : 50–200 ml
5) Power : 3-phase 4-line socket(380V50HZ)
6) Electric Machinery Power : 0.75kw
7) Heat Up Power : 4kw
8) Air Pressure : 0.5Mpa—0.7Mpa
9) Max.Air Consumption : 0.5m3/min
10) Timing Mode : Stepless speed regulating
11) Machine Dimension 2250*1050*2190mm
12) G.W. : 1500 kg

Product Details


Auto Tubes Feeder.
Equipped with auto tubes feeding device.It’s stable and high efficiency.It can save one labor cost.
Eye detector
With high sensitive Panasonic sensor, plastic tube can stop in the right position once the infrared eye detects the mark on the tube.
Date code
We can make date code on tube, also it’s very easy to replace the code.
Cold Water Circulation
Install cold water circulation in back mould, which can assure sealing quality under high output status.
Anti-drip filling nozzle
With Anti-drip design,standard filling nozzle is make from SUS 304 stainless steel, also can customize SUS 316.Easy to clean and convenient maintenance.
40L Hopper
Equipped with stainless steel hopper,It is good for filling paste and liquid.The big hopper can also be customized with heater and mixer type.
Unloading device
Auto unloading, can unload finished goods to conveyor.

Relevant Machines

We can offer machines for you as following

Reverse osmosis water purifier, vacuum homogenizing emulsifier. aseptic storage tank, drying sterilizer, ointment filling machine. conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine

Click the picture to jump to the link related to the product
