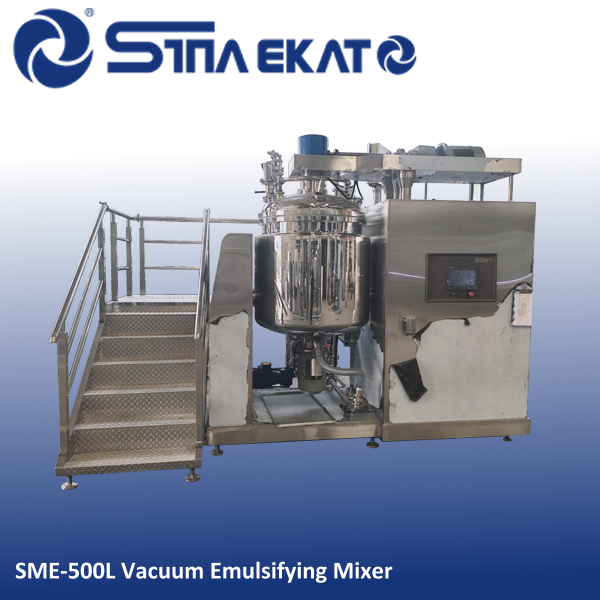

SinaEkato SME-500L vacuum homogenizing emulsifying machine (PLC Control)

We are thrilled to introduce the SME-500L Hydraulic Lift Vacuum Emulsifying Mixer, a cutting-edge solution designed to meet the demanding requirements of the cosmetics, pharmaceutical, and food industries. This innovative mixer, developed by Sina Ekato, is equipped with advanced features that ensure efficient and precise emulsification, homogenization, and mixing processes.



Daily cosmetic

hair conditioner facial mask moisturizing lotion suncream
skin care shea butter body lotion sunscreen cream
cream hair cream cosmetic paste BB Cream
lotion face wash liquid mascara foundation
hair color face cream eye serum hair gel
hair dye lip balm serum lip gloss
emulsion lipstick highly viscous product shampoo
cosmetic toner hand cream shaving cream moisturizing cream

Food & Pharmaceutical

cheese milk butter ointment ketchup
mustard peanut butter mayonnaise wasabi
toothpaste margarine Salad dressing sauce


Performances And Features

1.Internal Circulation Homogenizer System: The SME-500L mixer is equipped with a high-performance homogenizer system that enables both internal circulation, ensuring thorough mixing and emulsification of various ingredients.

2. Two-way ribbon wall scraping mixing system:This feature facilitates uniform mixing and scraping of the vessel walls, resulting in a consistent and high-quality product.

3. Three-Layer Stainless Steel Jacket Pot Body: The robust construction of the mixer’s pot body ensures durability, while the stainless steel material meets the highest hygiene and safety standards.

4. Stem Heating System: The Stem heating system provides precise temperature control, allowing for the efficient heating and processing of ingredients.

5. PLC Touch Screen Control: The mixer is equipped with a user-friendly PLC touch screen control interface, enabling operators to easily monitor and adjust the mixing parameters.

6. Hydraulic Lifting System: The hydraulic lifting system allows for effortless adjustment of the mixer’s height, providing convenience and flexibility during operation and maintenance.

7. Water Cooling System: The integrated water cooling system helps maintain the optimal temperature during the mixing process, contributing to the preservation of sensitive ingredients.

8. Vacuum System: The vacuum system ensures the removal of air and bubbles from the product, resulting in a smooth and homogeneous mixture.

10. Stainless Steel Platform Railing Ladder: The inclusion of a stainless steel platform railing ladder enhances the safety and accessibility of the mixer during operation and maintenance procedures.


Technical Parameter

Items Vacuum Emulsifying Mixer
Model SME-500L
Design Capacity 625L
Working Capacity 500L
Specification (L*W*H) unit(mm) 2900*1150*2800
Homogenizer Motor Power 7.5KW
Revolution 0-3000r(min)
Stir Motor Power 5.5KW
Revolution 0-60r(min)
Heat Method Steam Heating
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail



Product Details

Note: The picture is customized for reference only

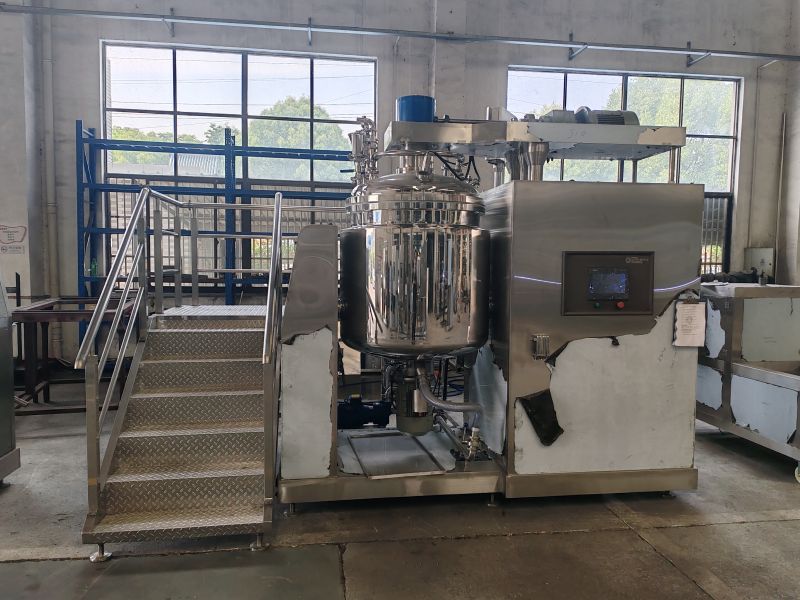

SME-500 Vacuum Homogenizer Emulsifying Machine

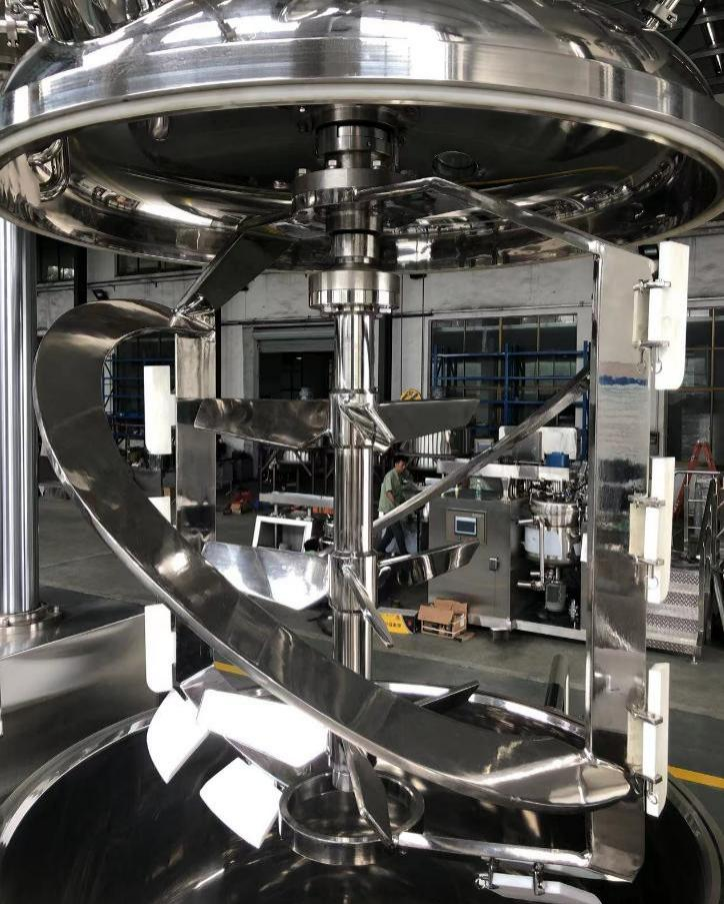

The vacuum homogenizer emulsifying mixer with helical ribbon mixing and double-way mixing system, along with wall scraping stirring, is a highly efficient and versatile mixing system

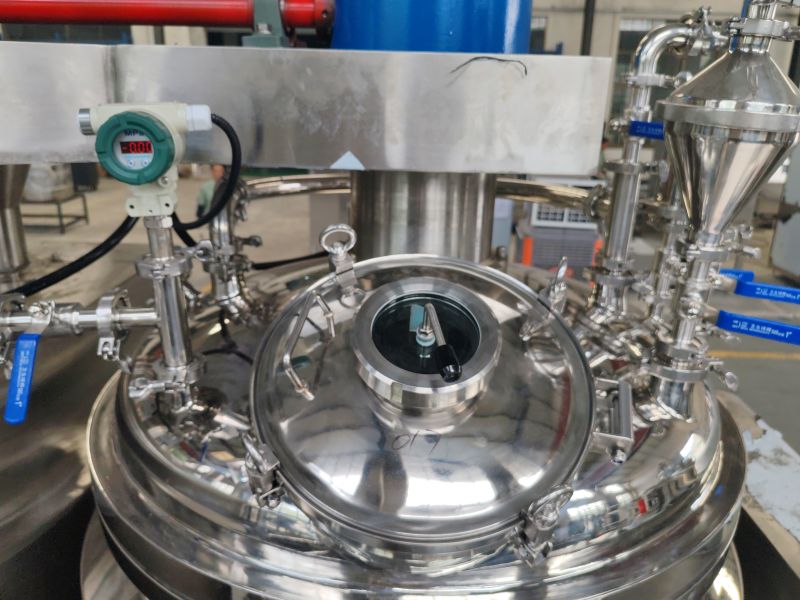

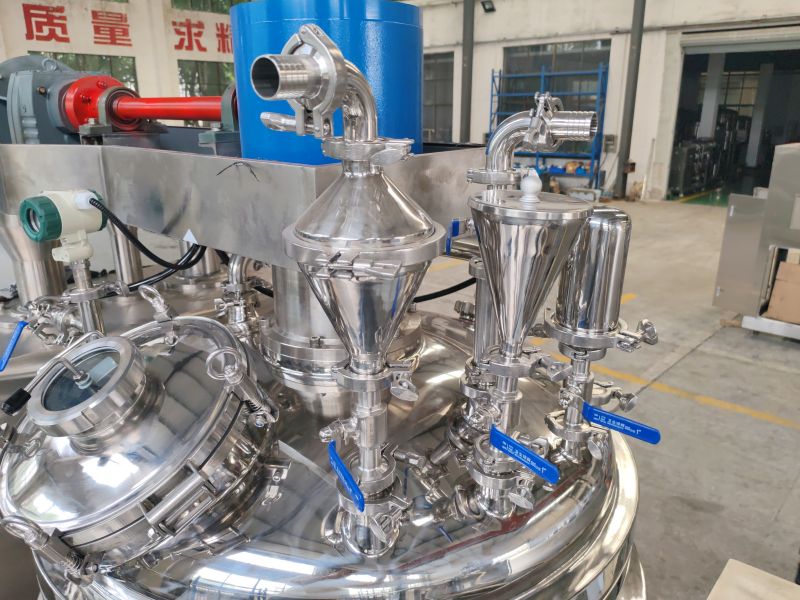

Cover Element

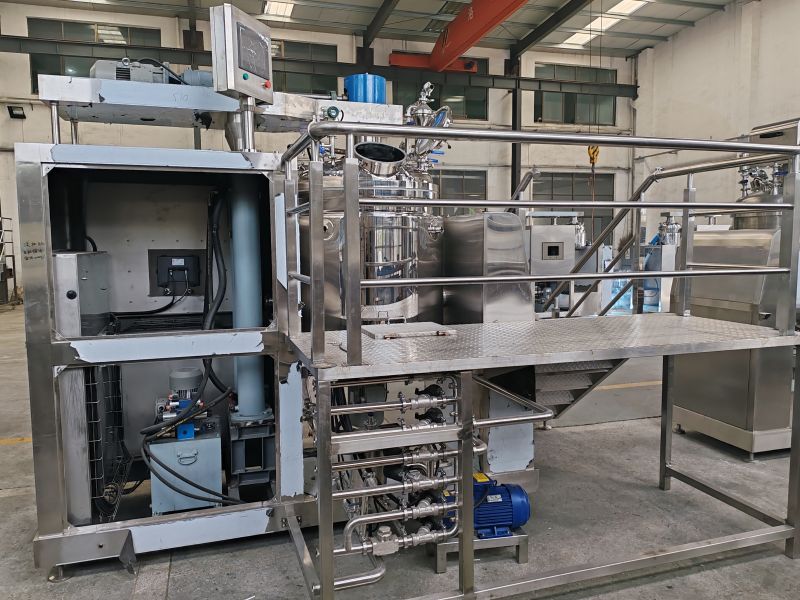

The use of hydraulic lifting system and main pot dumping system can greatly improve the production efficiency and reduce the workload of manual operation

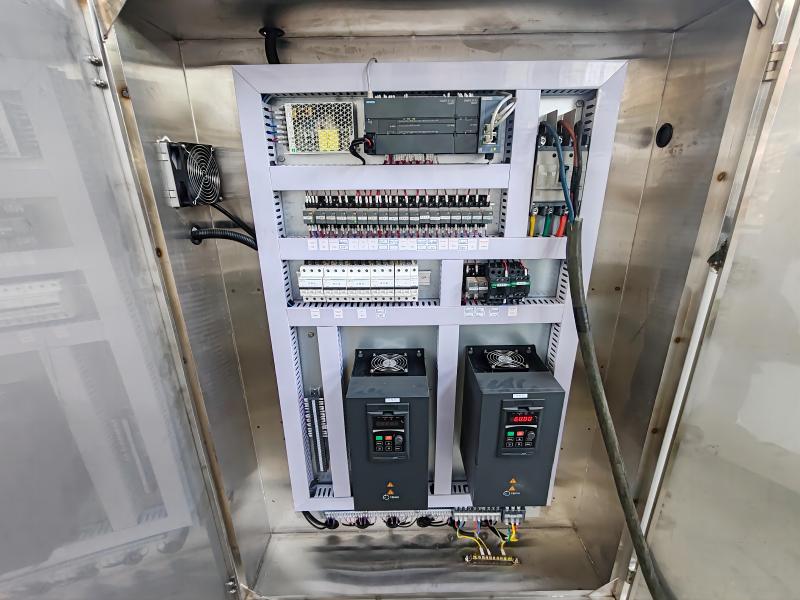

Control part

(PLC Control Touch screen control)


The emulsifier’s product configuration also includes Siemens Motor  components. These brands are well-known for their high-quality electrical and mechanical components that enhance the overall performance and longevity of the machine.

Schneider Electric is responsible for the electrical control of the emulsifier, ensuring reliable and safe operation. The Delta components further enhance the efficiency and performance of the electrical system.

Relevant Machines

We can offer machines for you as following

Reverse osmosis water purifier, vacuum homogenizing emulsifier. aseptic storage tank, drying sterilizer, ointment filling machine. conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine

Click the picture to jump to the link related to the product

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, foodchemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.


Workshop Production

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.


Our Project



Packing and Shipping

Exhibitions & Customers visit factory


Cooperative Customers



Material Certificate
