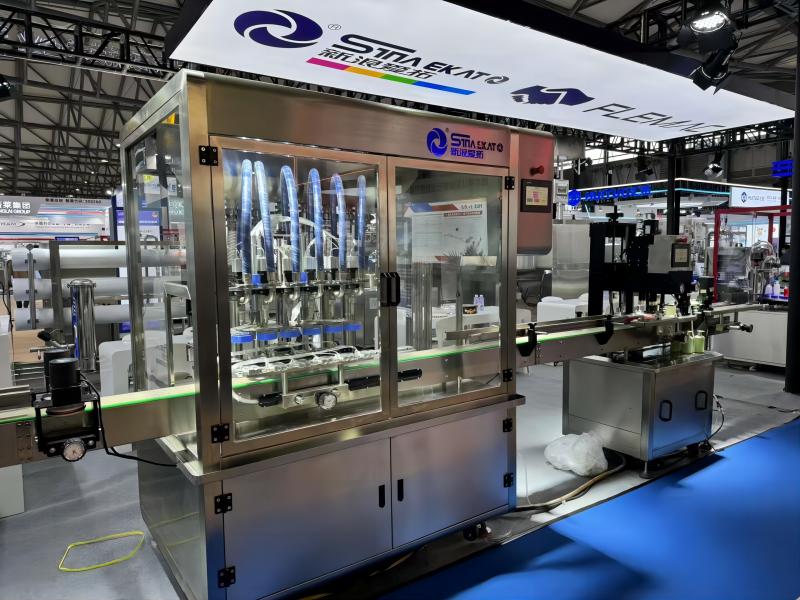

TVF Six Heads Liquid Filling Machine is suitable for shampoo, body wash, laundry detergent




Application:l is widely used in the flling ot warious semi-fuids, pastes, visccus bcdies, sauces and wariousgrarule-corsaining material, such as pup-cantaining beverages,shampoo, laundry datergent, hand washing.

Performances And Features

Using German Siemens PLC, man-machine interface, servo control system, low-voltage components to ensure excellent quality and long-lasting performance

l The filling volume adjustment only needs to change the target filling amount in the touch screen, and the adjustment is convenient and accurate.

l Photoelectric counting, PLC control, no bottle no filling.

l Anti-drip filling system effectively prevents dripping and wire drawing.

Machine Details

-Filling Nozzles
Vith anti-dripping function,can contnozzle separately,filling nozzles caby servo motor and filling from the kbotlle. Wve have the 2146,8/10 nozzchine,please send us message

-Feeding pump
With automatic piston pump, paste ibe flled, the material is directly pumbucket for filling. no need manual feaccuracy is high.If your bottle volume over 1000ml. pour online service to change air pre:diaphragm pumps

Transfer bottles and filling paste automatical-ly, reduce working error and works efficientyConveyor speed is adjustable, Stainless stee!conveyor can do is customer need

-Servo motor drive filling
Servo motro controll filling volume and time,fillingprecision is about ±0.5%filling machine which is equipped with One walve witheasy dispatch clamp,it fills quicky and can improveworking efficiency

Technical parameter

1 Filling heads 6
2 Filling speed 0-40bottles/min
3 Filling volume 50-500ml
4 Suitable bottle dimension) Diameter: 40-100mm, Height: 100-320mm (customized )
5 Filling precision ±0.5%
6 Voltage Customized
7 Air pressure 0.6-0.8Mpa
8 Power ≤1KW
9 Filling type: servo filling
10 Lifting type: Cylinder lifting
11 Air source: 0.4-0.8Mpa.
12 Control system: Siemens PLC control system

Configuration table

No Item QTY Manufacturer
1 PLC 1 set


2 Touch screen 1 set
3 Gear motor 1 set Mitsubishi
4 Servo filling motor 1 set Panasonic
5 Conveyor belt motor 1 set JSCC
6 Alternating current contactor 1 set




7 Emergency switch 1 pc
8 Power switch 1 pc
9 Buzzer 1 pc
10 Frequency motor 1 set Mitsubishi
11 Block bottle cylinder 2 sets


12 Clip bottle cylinder 2 sets
13 Photoelectric detecting 2 sets


14 Approach switch 4 pcs
15 Cylinder lifting 1 set Airtac
