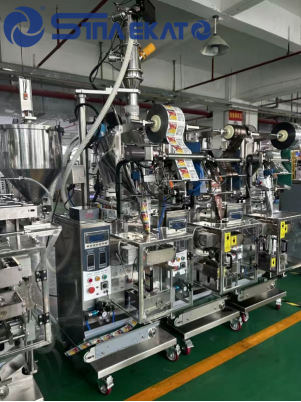

Sachet Packing machine

This machine is widely applied for food,pharmacy ,and chemical products in mesh size range from 120 to 400,such as milk powder, soya powder,cosmetic powder, slimming tea,medical powdered.


Mechanical video

Applicable packing film:

Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

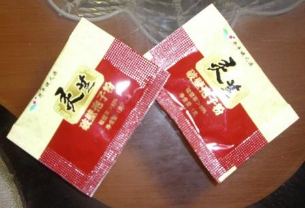

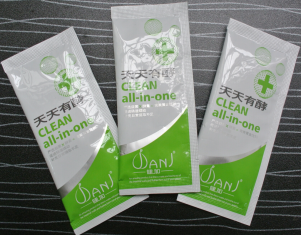

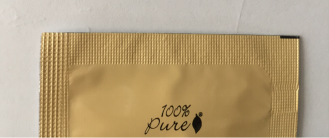

Sample Picture


Performances And Features

1.This machine can finish :forming bag–measuring–material filling—sealing—counting—date code printing, all the work automatically;

2.Photoelectric and tracing system or computer systemcan be provided without your specific requirements.

3.The PLC controllerhas the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4.This machine can be installed to code printer for 1-3 lines characterssuch as production and expiry date according to your special request.

5.Eye Mark System ,machine can cut complete logo

6.Machine Stop Automaticlly if it is out of film

7.Fine Packaging performance.low noies .clear sealing texture and strong sealing performacnce

8.Straight line easy tearing&emboss code as Free Options

Technical Parameter

Capcity 30-50 bags/min
Range of measurement 1-50g(need change auger screw)
Accuracy percent +2%
Bag size (L)20-145 (W)15-100mm
Sealing Type 3 or 4 side sealing
Power 1180W
Total power 380V/50HZ  220V/50-60HZ
Packing material Paper/the  polyethylene,nylon/polyethylene,tea filter paper,etc
Net weight 230kg
Overall dimensions (L)800*(W)800*(H)1700mm

Product Details

Machine configuration

Name Detail
Model NO.: TVF-QZP
Sensor Changtong
PLC Controller Mitsubishi/Japan
Stepping motor Jiangsu huanyu
Main Motor TaiWan Jiayu
Temperature control       meter module Yuyao families meter.
Color code photoelectric Zhejiang both
Intermediate relay Zhejiang both
Solid state relay Zhaoqing Zhongbao
Luck film motor Jiangsu huanyu
Proximity switch Jiangsu huanyu.
Push button switch OMRON
Power switch OMRON
Color Printer for Date Nanyun(Customize)
Machine Body SS202 , Material Control Parts SS304

Relevant Machines

We can offer machines for you as following

Reverse osmosis water purifier, vacuum homogenizing emulsifier. aseptic storage tank, drying sterilizer, ointment filling machine. conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine

Click the picture to jump to the link related to the product

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, foodchemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.


Filling Workshop Production

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.


Our Project



Packing and Shipping

Exhibitions & Customers visit factory


Cooperative Customers



Material Certificate
