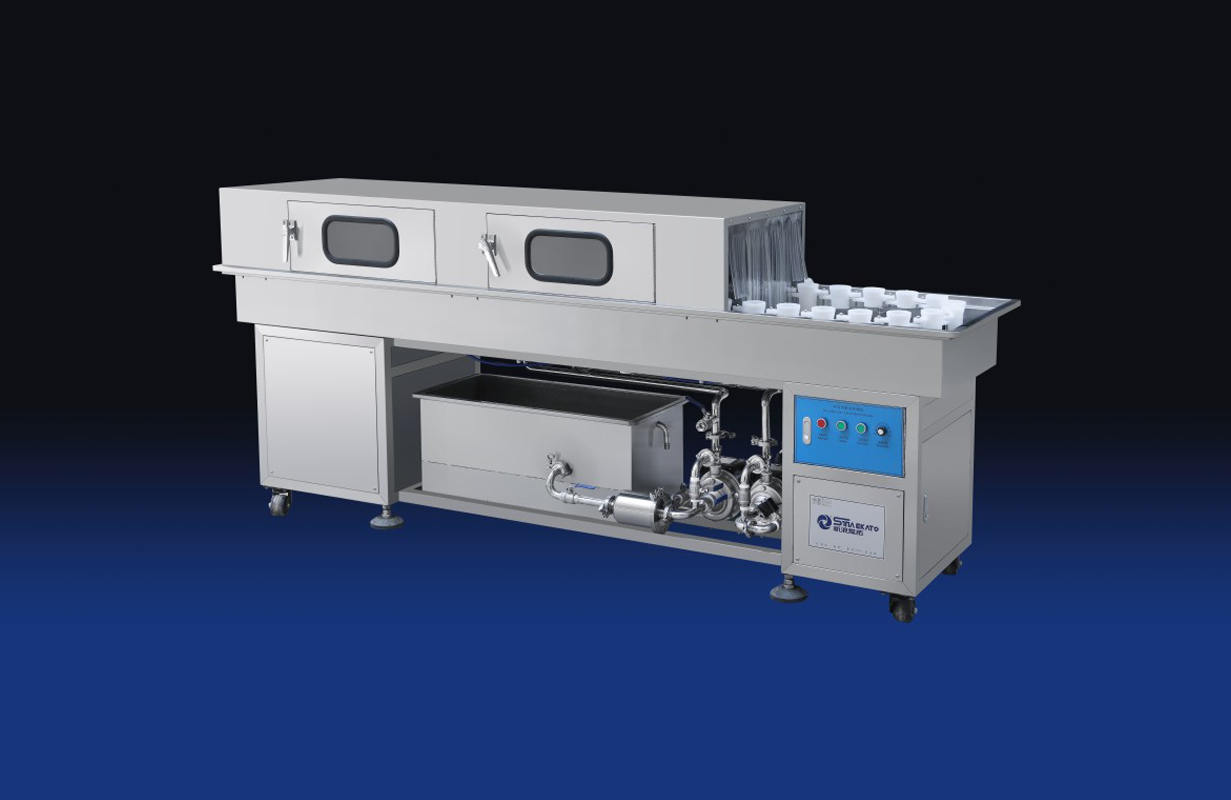

XL-SXP-A Bottle Washing Machine

Description

Product introduction:

It adopts positive fluctuation bottle, intermittent positioning flush, guaranteeing the accuracy of the high pressure water inject into the bottle, equipped with two water segregators, circulating water tank, water pump. Flushed by a tap water, a pure water; Variable frequency speed regulation, control water effect good.

Auto Grade: Automatic

Advantage: Put the inverted bottles on the mould by manual. The machine adopts batch-type positioning, washing inside and outside of the bottle, ensuring that the high pressure water column sprinkle in the bottle precisely.

1.Wash the bottle with tap water in the first time.

2.Blow the bottle with air in the second time.

3.Wash the bottle wit pure water(alcohol) in the third time.

4.Blow the bottle with air in the fourth time.

Feature

1.Put the inverted bottles on the mould by manual. The machine adopts batch-type positioning,washing inside and outside of the bottle, ensuring that the high pressure water column sprinkle inthe bottle precisely. The machine is equipped with two water separator, a water pump and circulating water tank. Firstly, the machine cleans the bottle by tap water, secondly, clean by air,thirdly,cleans by pure water (alcohol), finally, cleans by air.

2.Frequency control is available and water output is adjustable according to the different bottle shape. Water control effect is good.

3.Easy operation and high efficiency

4.It is the best choice for cleaning bottles in cosmetic, pharmaceuticals and food industries.

Main parameter
Flushing water nozzle: 48

Working efficiency: 2000-3000blts/h

Motor power: 1.25KW/220V/frequency control

Suitable bottle height: 50-150mm

Suitable bottle diameter: 25-80mm

Water consumption: 1.55m ³/h

Flushing bottle pressure: 0.2-0.4MPa

Weight: 330kg

Dimension: 2700×670×1180mm(L*W*H)

Configuration List

Accessories included
