PME-4000L Liquid Homogenizing Mixer

Description

Application

Blender is suitable for the production of various types of detergents cosmetics
spices and other fine chemicals necessary equipment

Features and Advantages

1. The PME-4000L Mixer adopts fixed pot body, pot cover and pot body with flange connection can not be lifted.

1.2The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc.during the liquid detergent production process so as to save energy consumption and shorten production period.

2. The Mixer pot is made of three-layer stainless steel welding, the inner layer in direct contact with the material is made of imported SUS316L stainless steel, the middle jacket layer and the external thermal insulation layer are made of 304 stainless steel, and the tank body and pipeline are mirror-polished or matte, which fully meets the GMP requirements.

3. The stirring system adopts double-direction wall scraping mixing and frequency conversion speed adjustment, so as to satisfy product of different technological requirements

4.The machine adopts the bottom external circulation homogenizing system, the homogenizing motor adopts Germany Siemens, and adjusts the homogenizing machine speed through the PLC control Siemens inverter in the electric cabinet, and the homogenizing speed is 0-2880r/min

5.The machine is controlled by an independent PLC electronic control cabinet, the cabinet is made of imported stainless steel materials, the electrical components are made of Germany Schneider Electric, the inverter and PLC are made of Germany Siemens, the instrument is Omron, and the operation equipment can be monitored through the Siemens PLC touch screen equipment. And through the Siemens touch screen of the cabinet to control the stirring speed, homogenization speed, temperature control and other data

Technical Parameter

Model		PME-4000L
Working Volume		4000L
Design Volume		5000L
Homogenizer	Power(KW)	30KW
Motor	Rotate speed(r/min)	0-2880 r/min
Stir Motor (internal Mixing)	Power(KW)	7.5KW
Stir Motor (internal Mixing)	Rotate speed(r/min)	0-57r/min
Stir Motor (internal Mixing)	Power(KW)	15KW
Stir Motor (internal Mixing)	Rotate speed(r/min)	0-33r/min
Overall Dimension(LWH) unit(mm)		23002300
Type of Heating		Steam heating
Note: in case of inconformity of the data in the table due to
technical improvement or customization, the real object shall prevail.

Product And Details

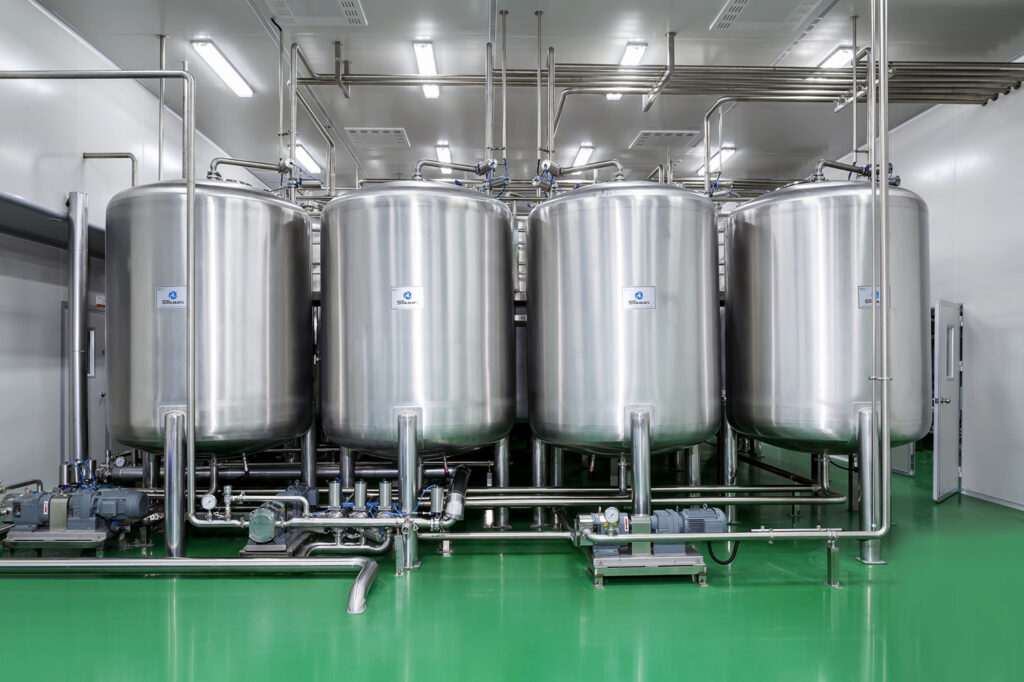

: CG-8000L Storage Tank

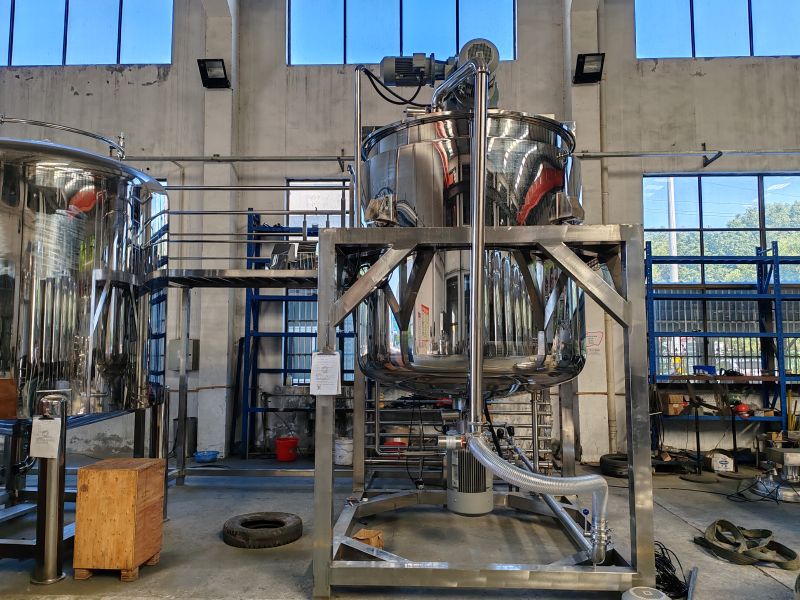

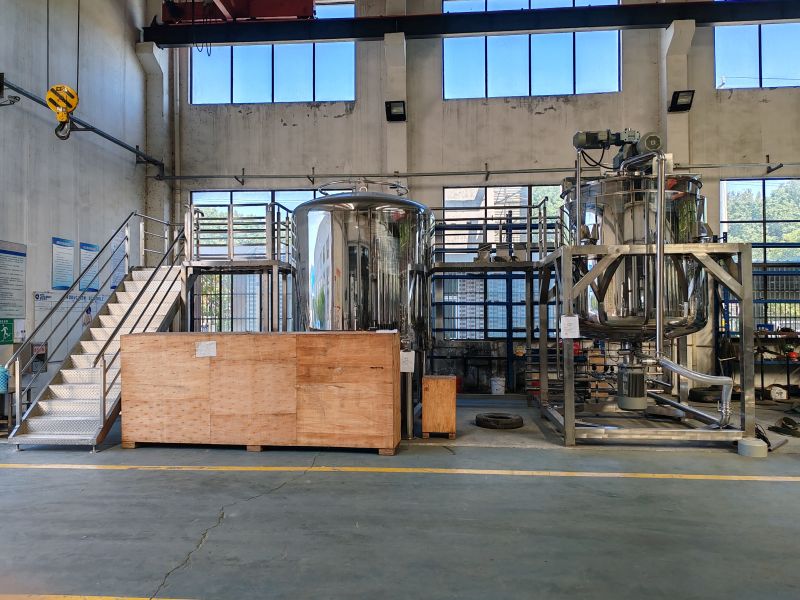

: PME-4000L Mixer

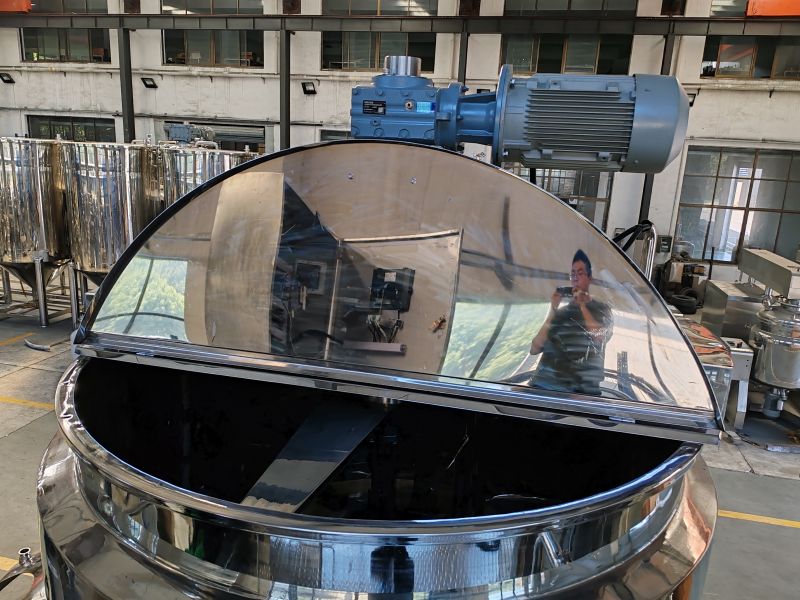

1.Cover Element

: Single Side Open Cover

2.Top stirring system

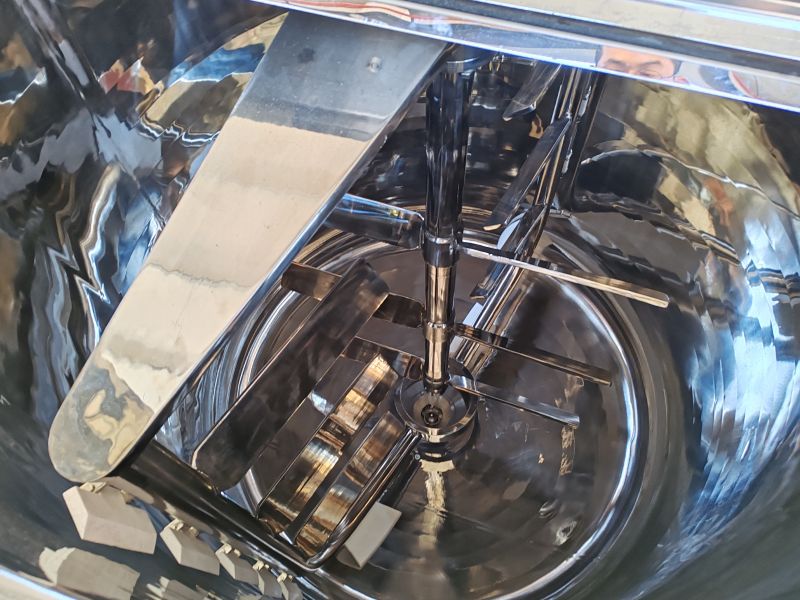

: Double-Way Wall Scraper Mixing System

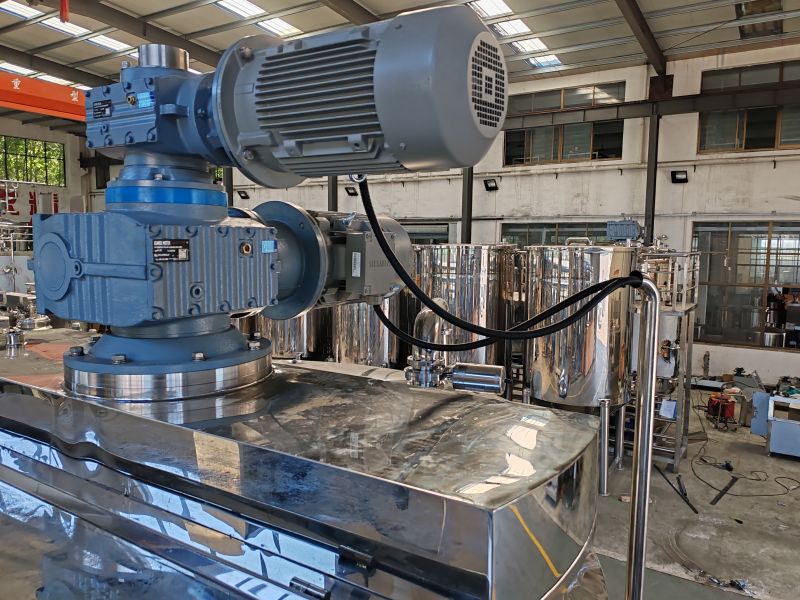

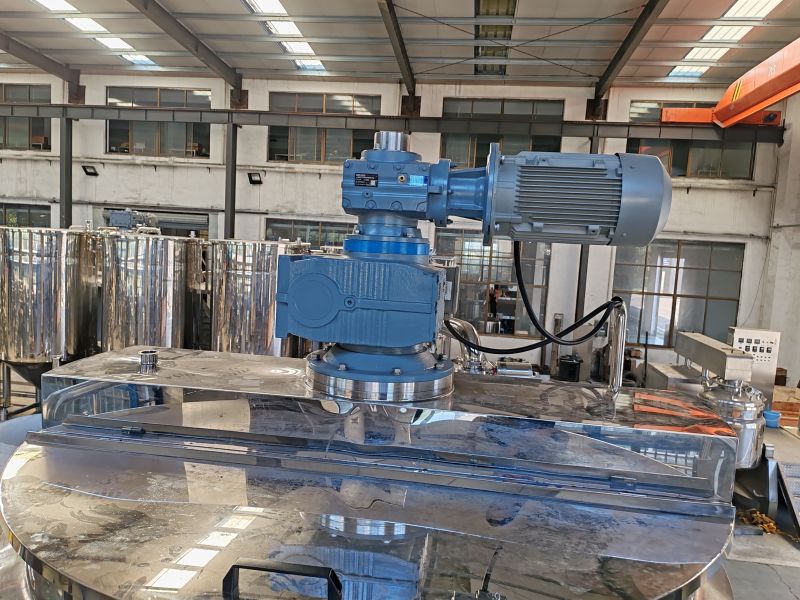

: Top Stirring Motor

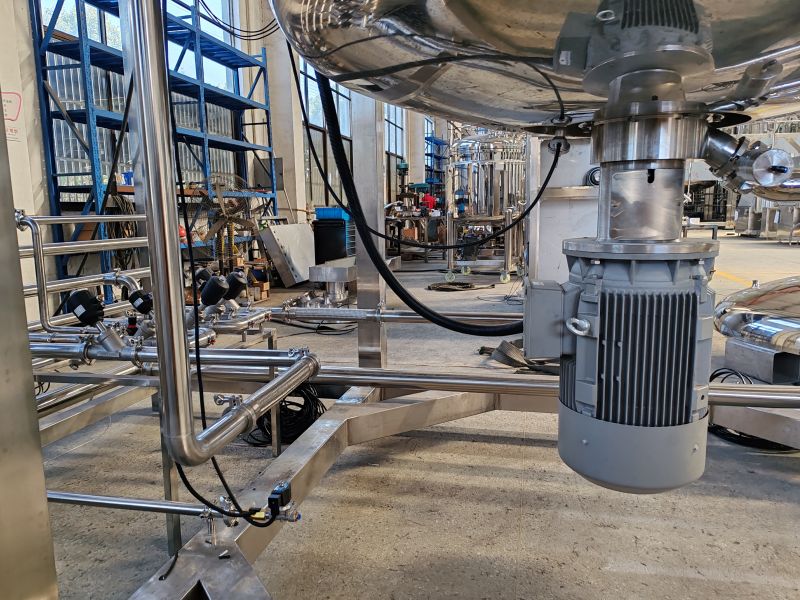

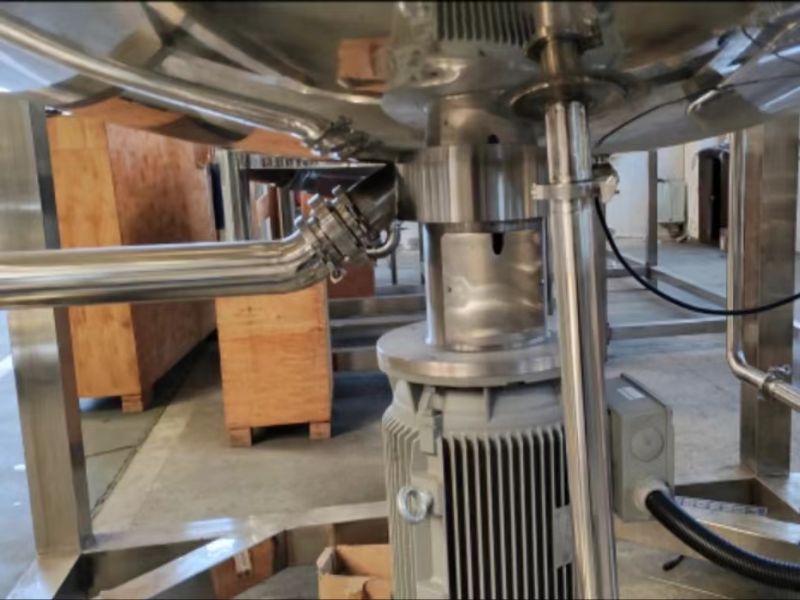

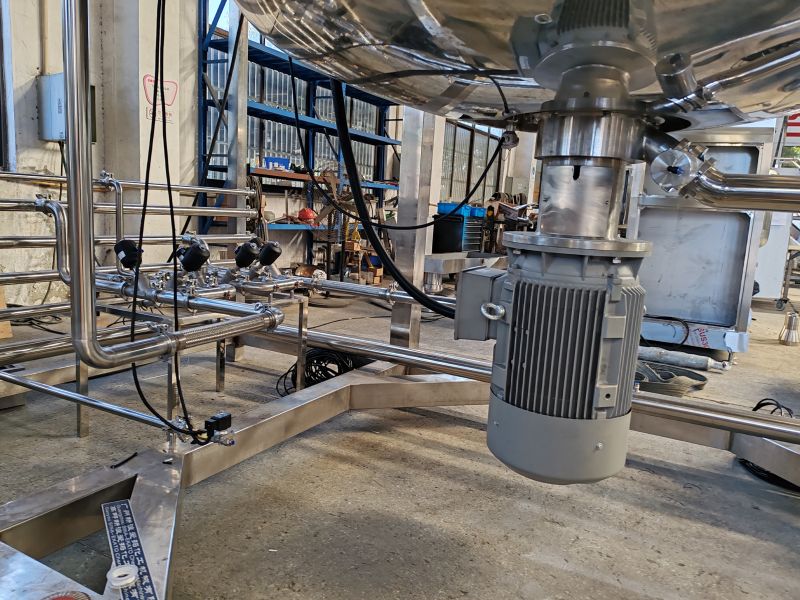

3.Bottom External Homogenizer System

5.Bottom discharge

: Pneumatic quick installation butterfly valve

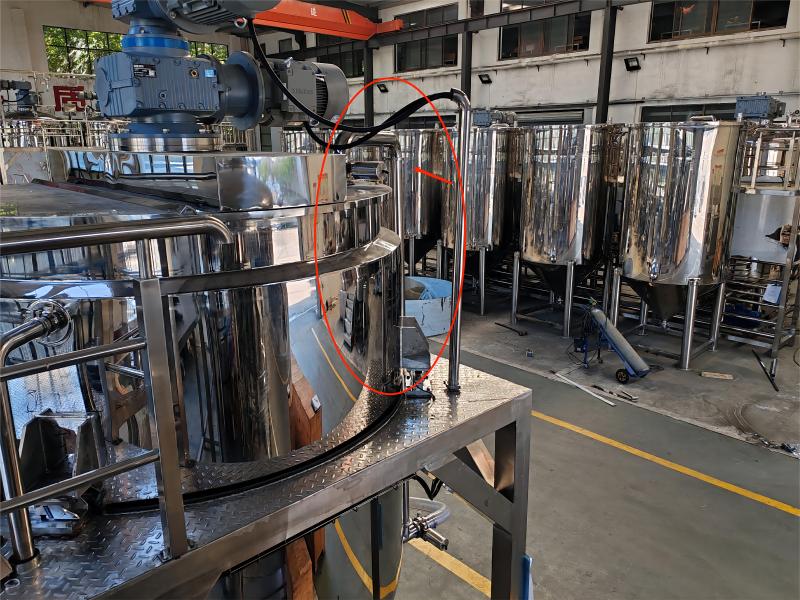

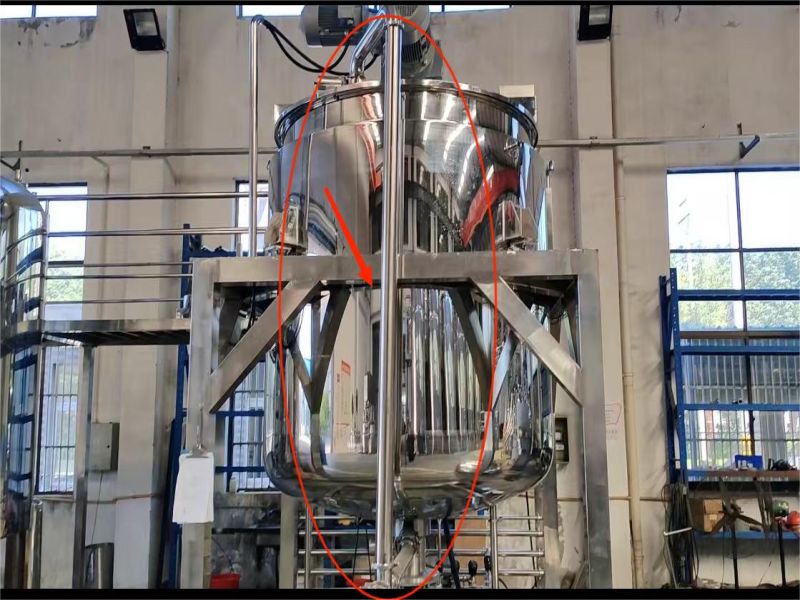

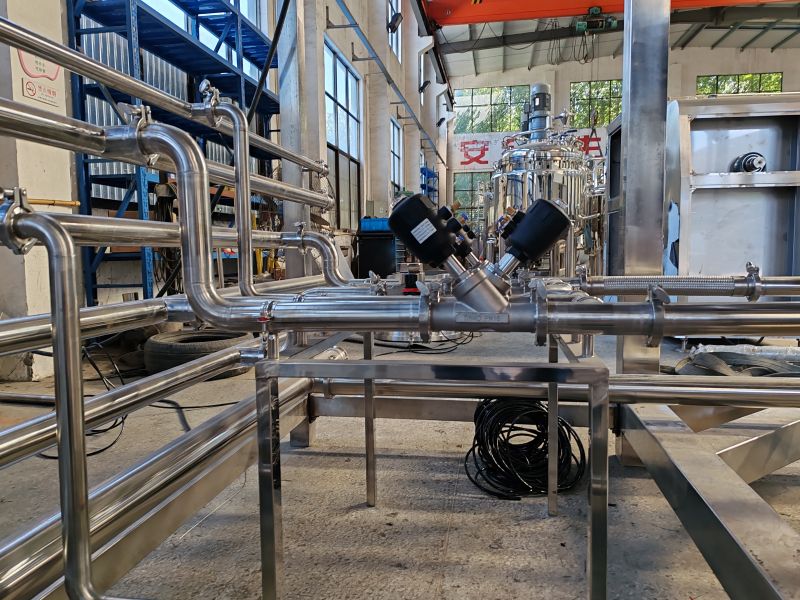

6.Circulation Pipe

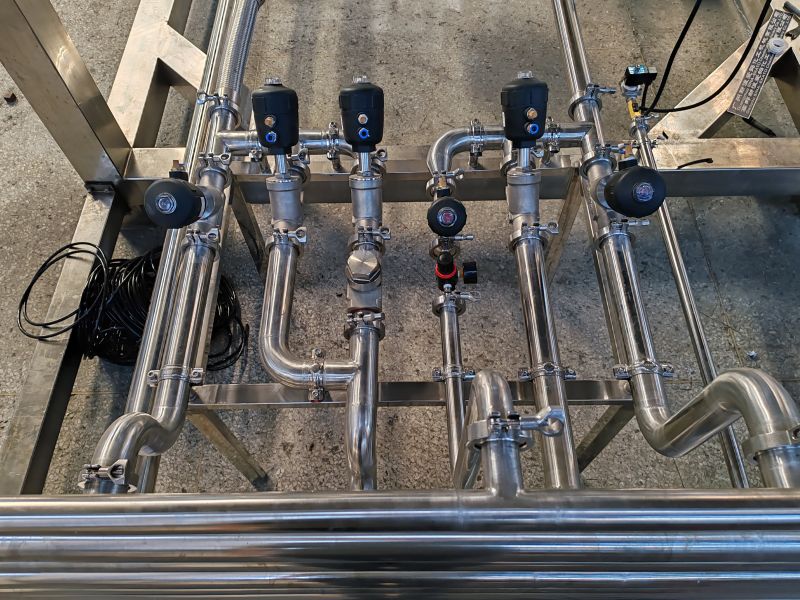

7.Pipe Connect

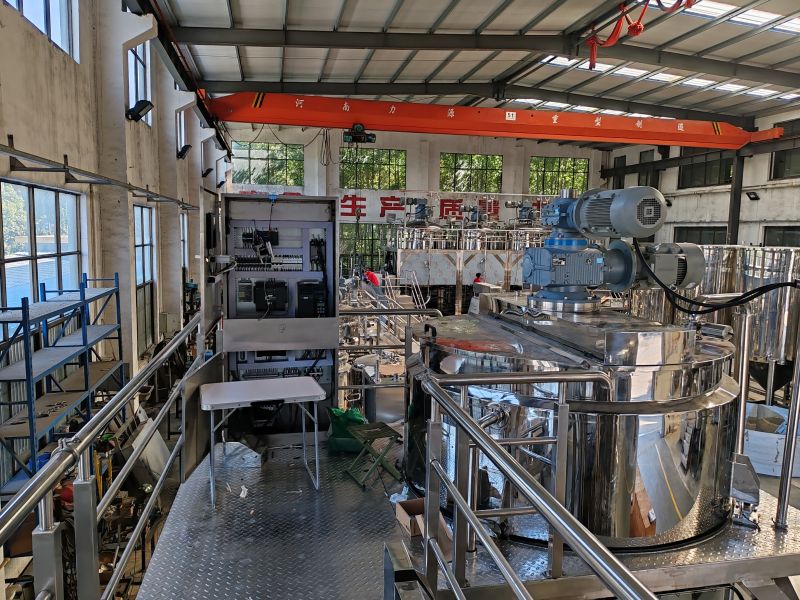

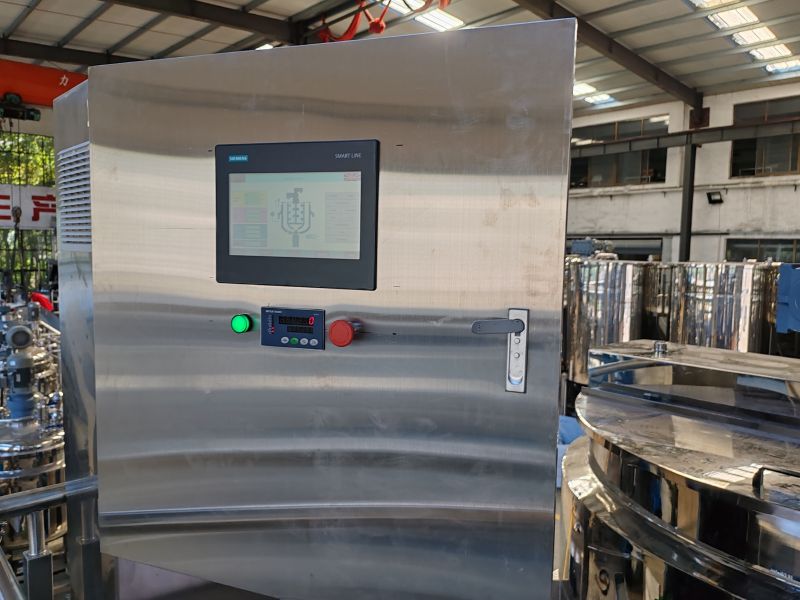

8.Independent PLC control cabinet

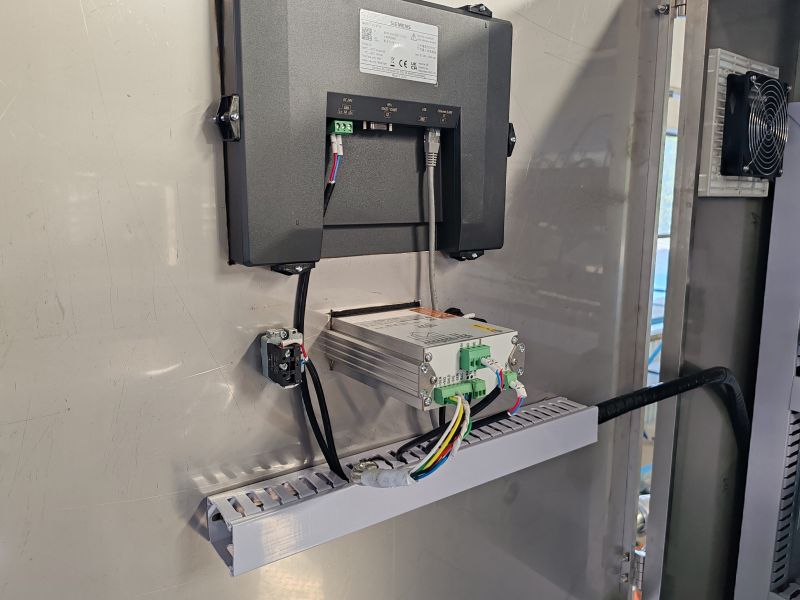

: Touch Screen for PLC

8.1 Human-computer interaction system

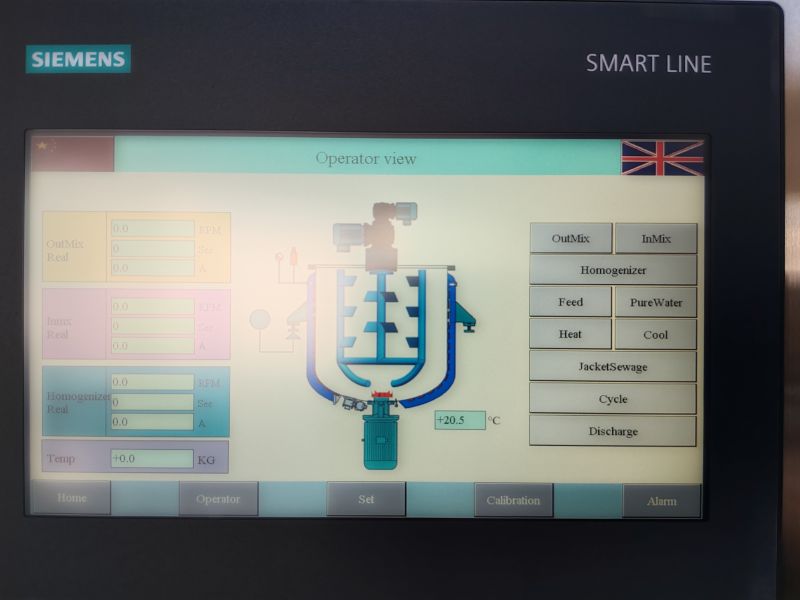

: PLC control interface

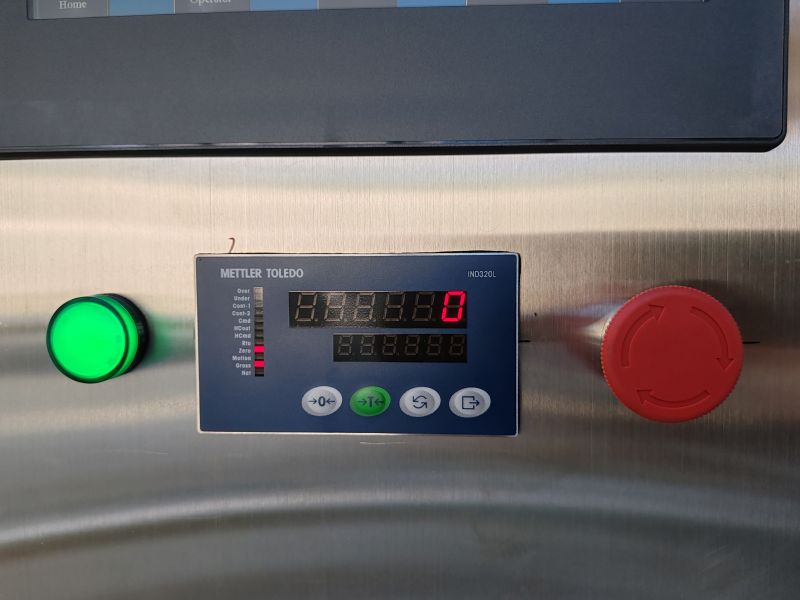

: Emergency stop/start knob

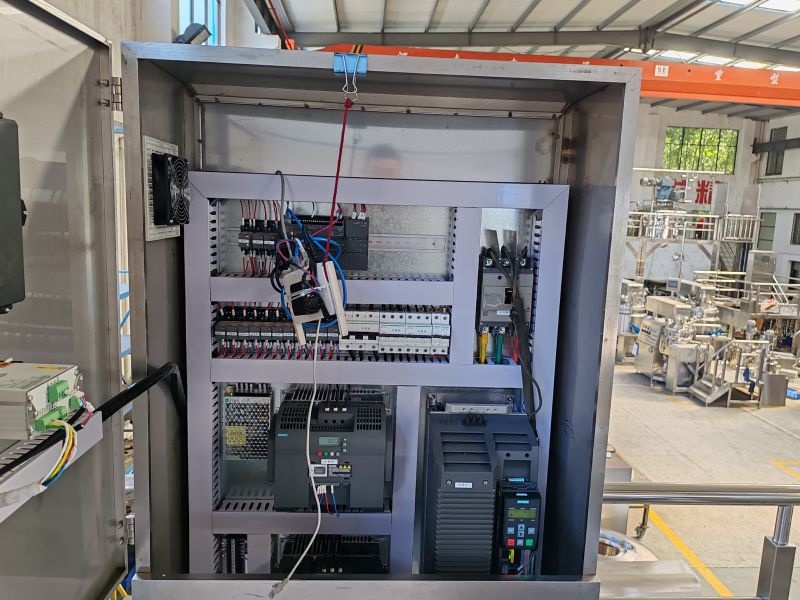

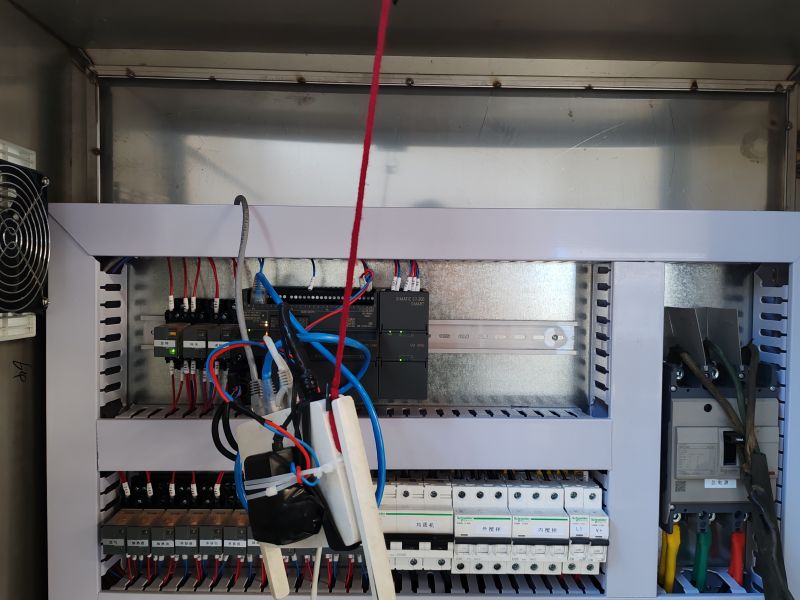

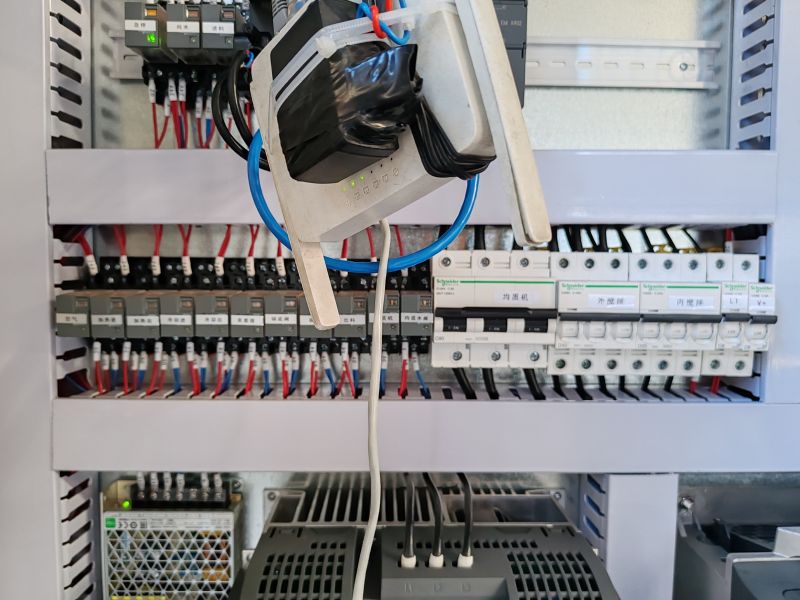

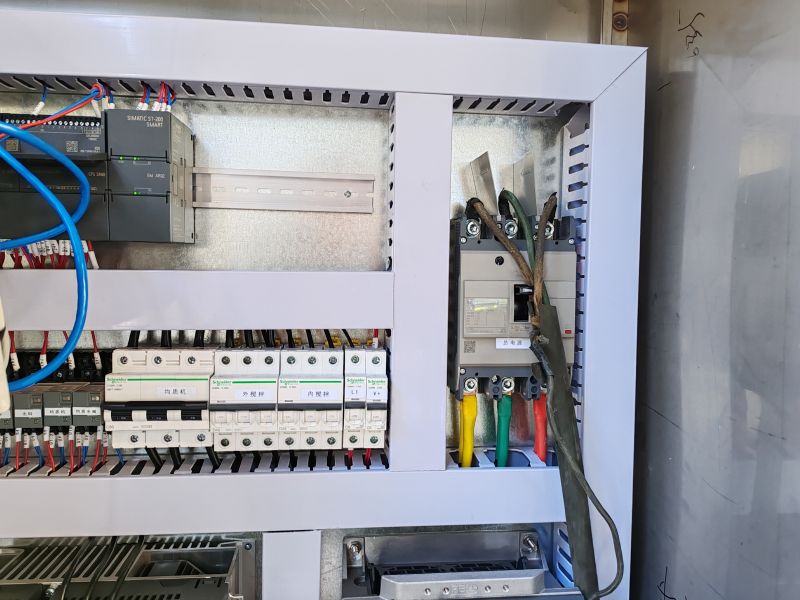

8.2.PLC control cabinet inside

: Siemens PLC system under test

: German Schneider electric original

: German Schneider electric original

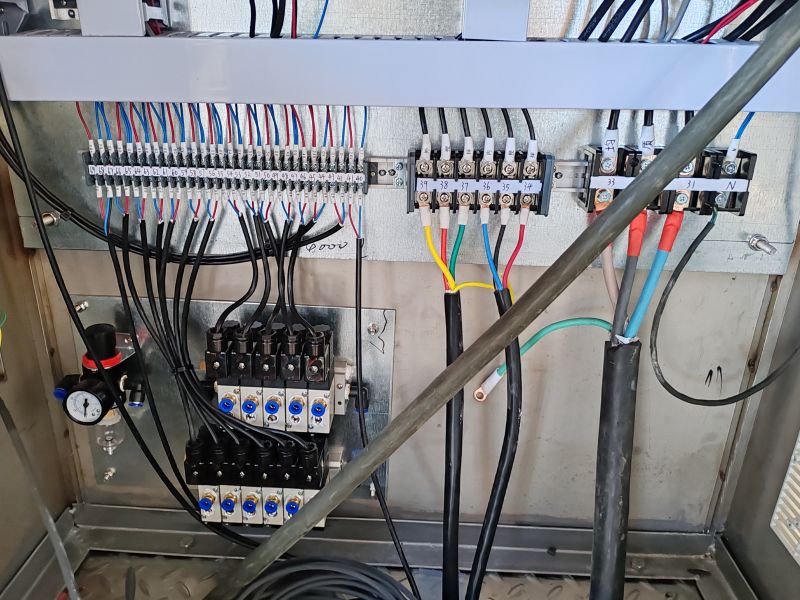

: Wiring of electrical components

: Wiring of electrical components

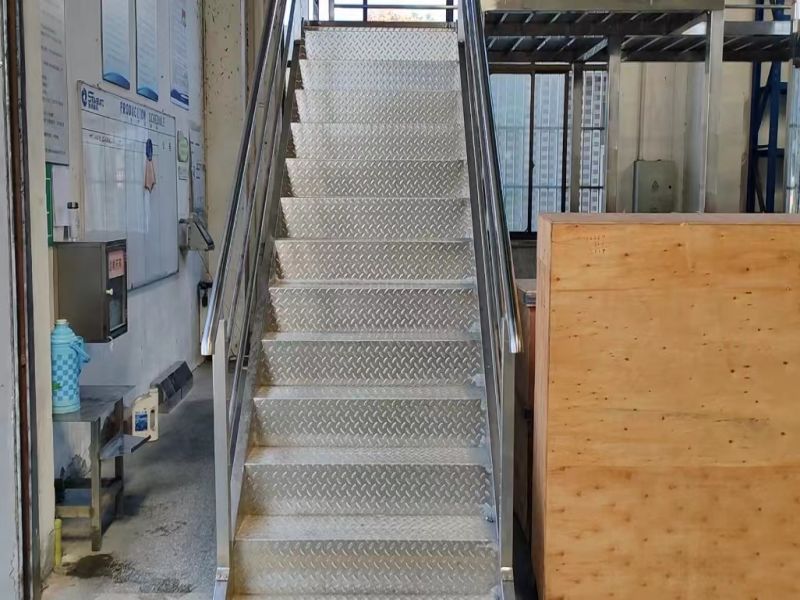

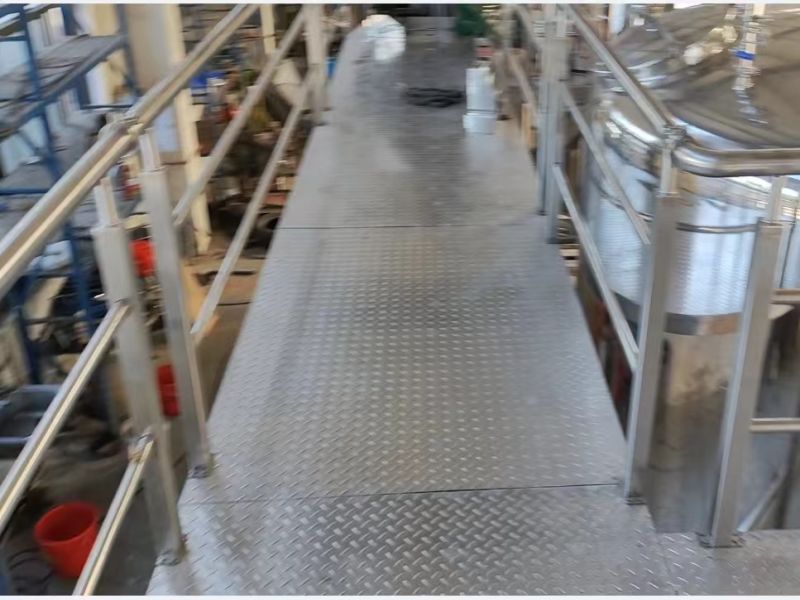

9.Stainless Steel Platform armrest step (can be customized according to customer factory needs)

Material contacted parts adopts SUS.316All guard bar and platform, frame adopts stainless steel

Related products

We can offer machines for you as following :

(1)Cosmetics cream ,ointment ,skin care lotion ,toothpaste production line

From Bottle washing machine -bottle drying oven -Ro pure water equipment -mixer -filling machine -capping machine -labeling machine -heat shrink film packing machine -inkjet printer -pipe and valve etc

(2)Shampoo, liquid soap ,liquid detergent(for dish and cloth and toilet etc ) ,liquid wash production line

(3)Perfume production line

(4)And other machines ,powder machines ,lab equipment ,and some food and chemical machines

: RO Water Machine

: Bottle Washing Machine

: Bottle Drying Sterilizer

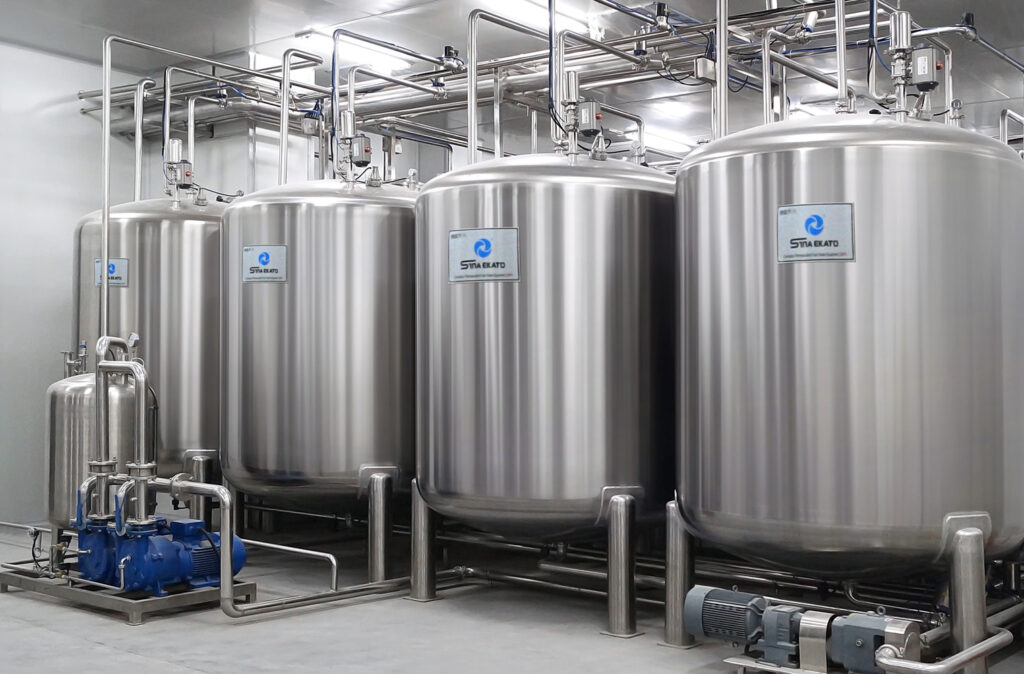

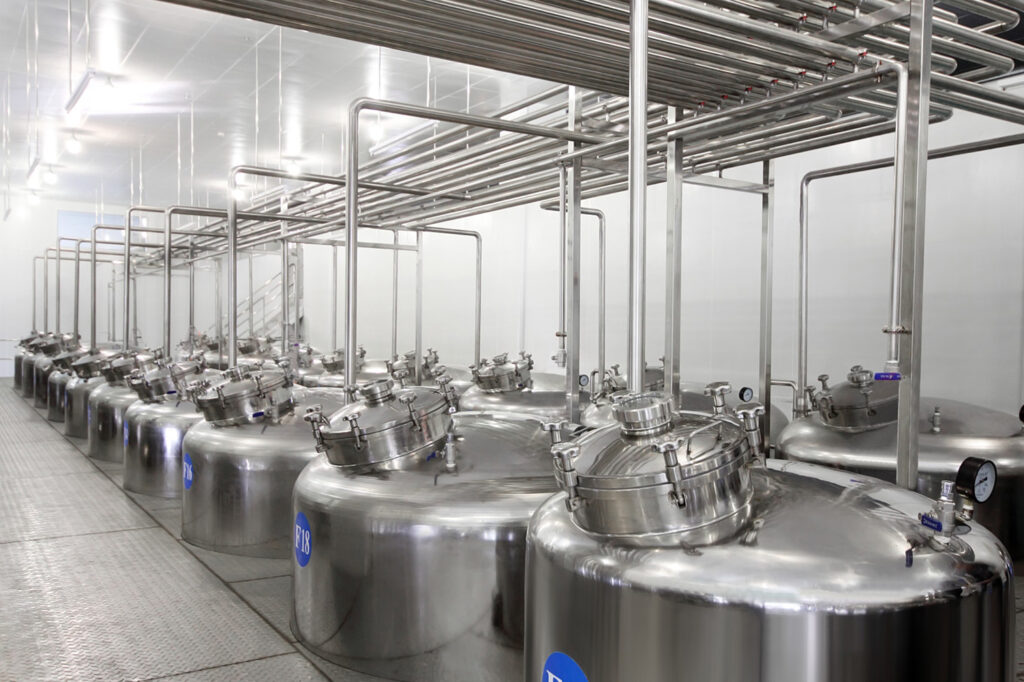

: Stainless steel storage tank
