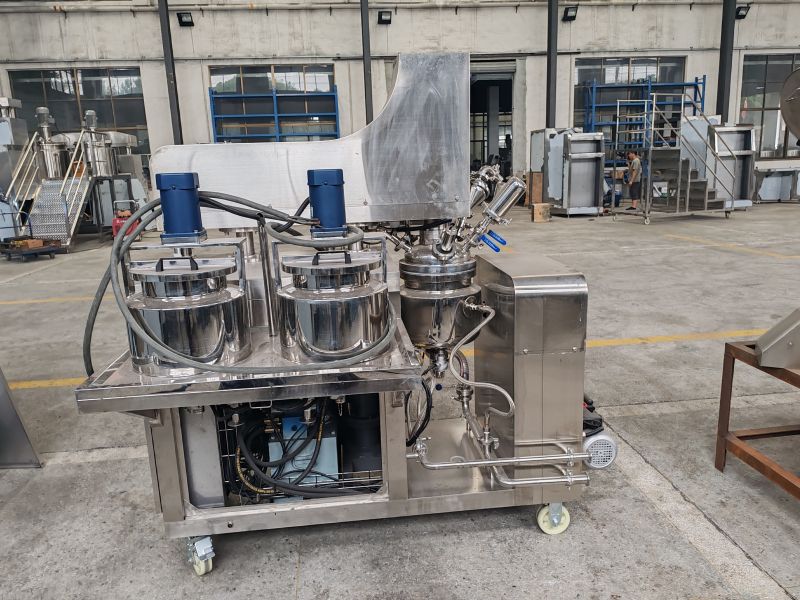

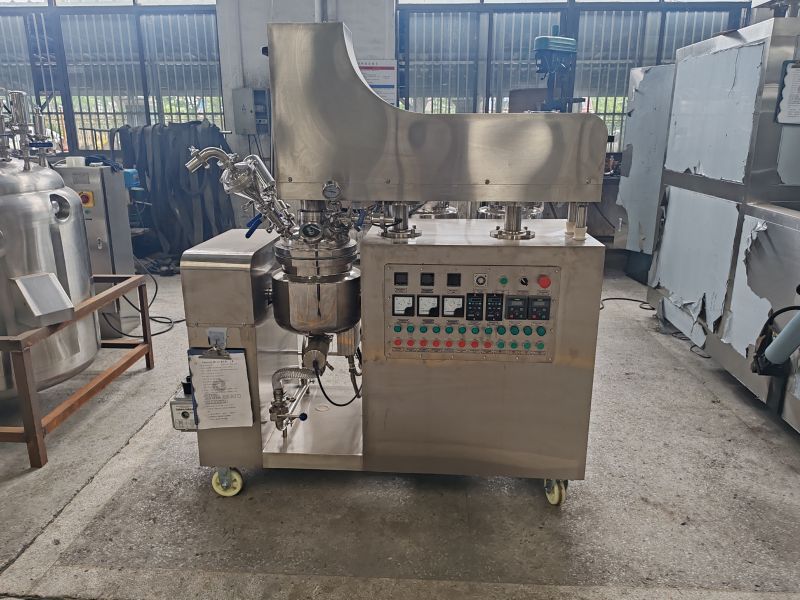

SinaEkato SME-10L movable vacuum Top homogenizing emulsifying machine (Electrical Button Control)

Description

Application

Daily cosmetic
hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food & Pharmaceutical
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

Performances And Features

1. 1. Homogenizing head: used to homogenize and emulsify materials to produce strong centrifugal and shear forces.

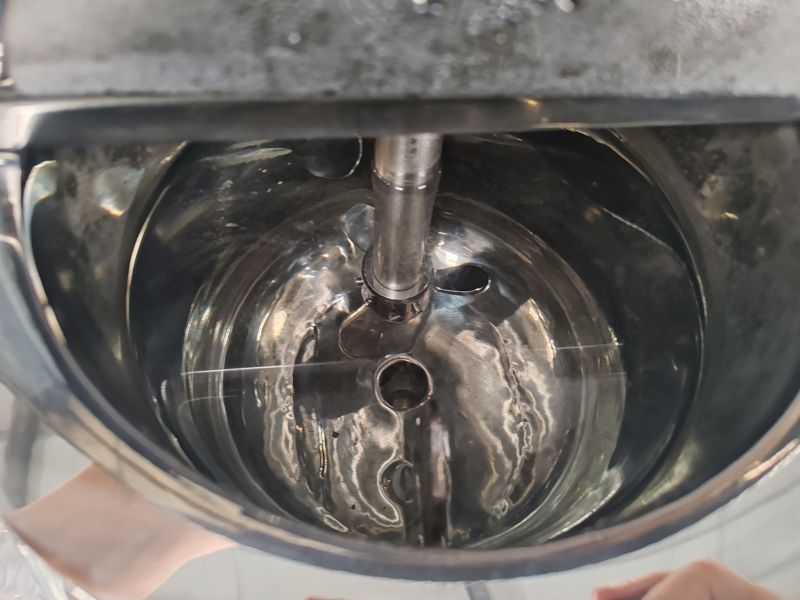

2. Two-way wall scraping mixing system:This feature facilitates uniform mixing and scraping of the vessel walls, resulting in a consistent and high-quality product.

3. Three-Layer Stainless Steel Jacket Pot Body: The robust construction of the mixer’s pot body ensures durability, while the stainless steel material meets the highest hygiene and safety standards.

4. Electric Heating System: The electric heating system provides precise temperature control, allowing for the efficient heating and processing of ingredients.

5. Electronic control button control system: used to control the operation of the whole vacuum homogenizing emulsifier, including start and stop, speed adjustment, heating temperature control and other functions. Use buttons to operate.

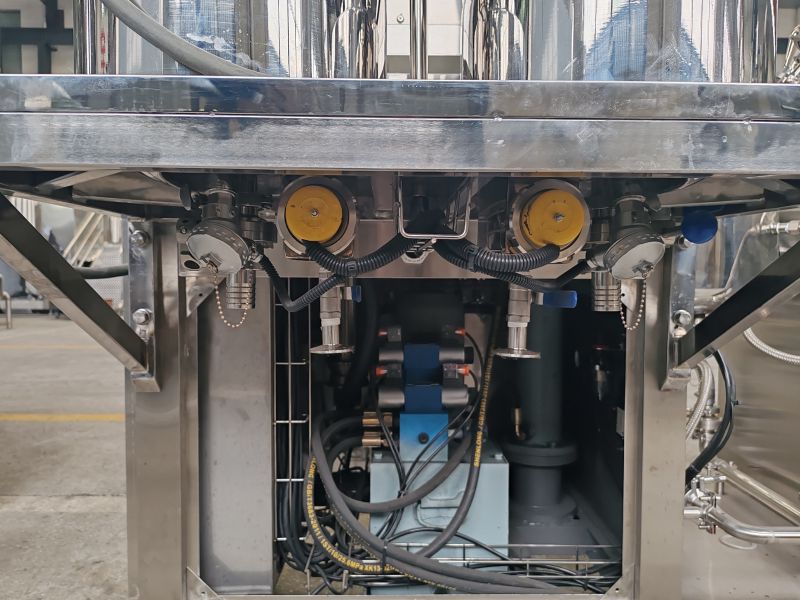

6. Hydraulic Lifting System: The hydraulic lifting system allows for effortless adjustment of the mixer’s height, providing convenience and flexibility during operation and maintenance.

7. Water Cooling System: The integrated water cooling system helps maintain the optimal temperature during the mixing process, contributing to the preservation of sensitive ingredients.

8. Premixed Oil Water Pot: This feature enables the efficient premixing of oil and water components, streamlining the overall production process.

9. Vacuum System: The vacuum system ensures the removal of air and bubbles from the product, resulting in a smooth and homogeneous mixture.

Technical Parameter

Items		Vacuum Emulsifying Mixer
Model		SME-10L
Design Capacity		12.5L
Working Capacity		10L
Specification (LWH) unit(mm)		260011002350
Homogenizer Motor	Power	0.75KW
	Revolution	0-3000r(min)
Stir Motor	Power	0.55KW
	Revolution	0-80r(min)
Heat Method		Electrical Heating
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail

Product Details

Note: The picture is customized for reference only

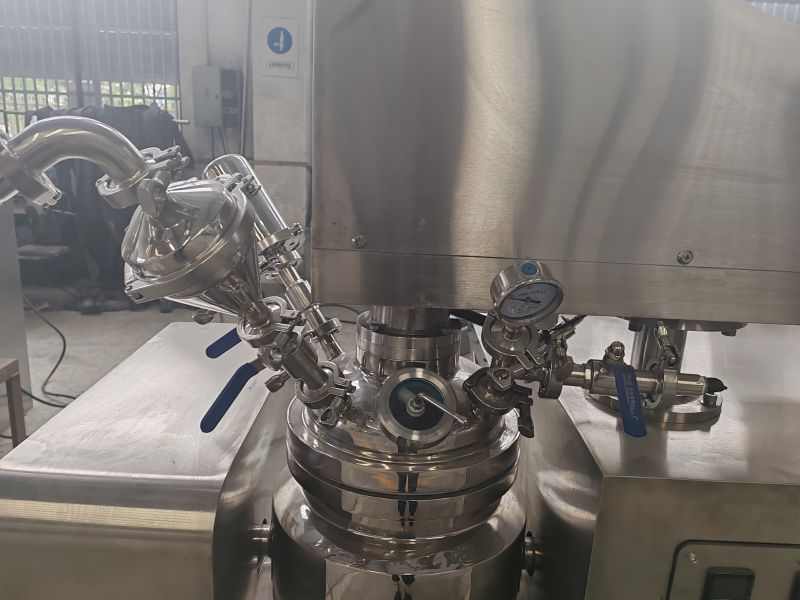

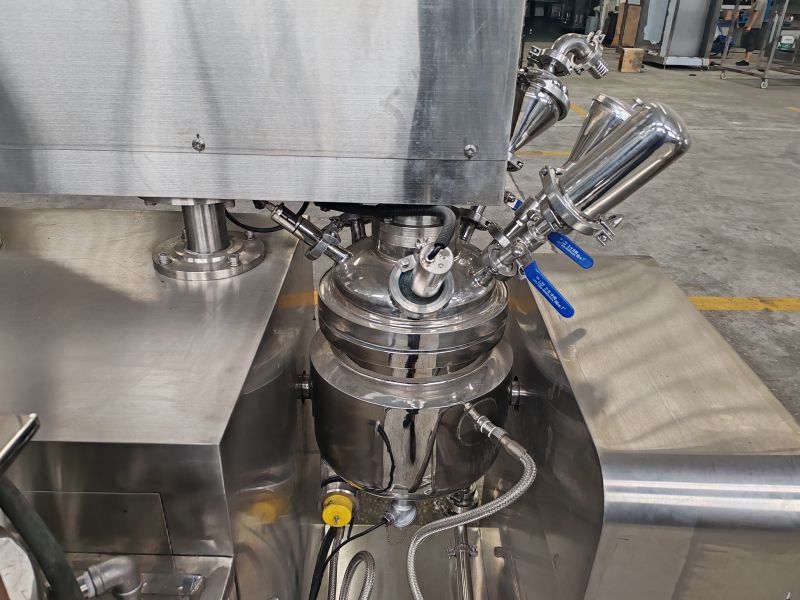

Cover Element

The use of hydraulic lifting system and main pot dumping system can greatly improve the production efficiency and reduce the workload of manual operation

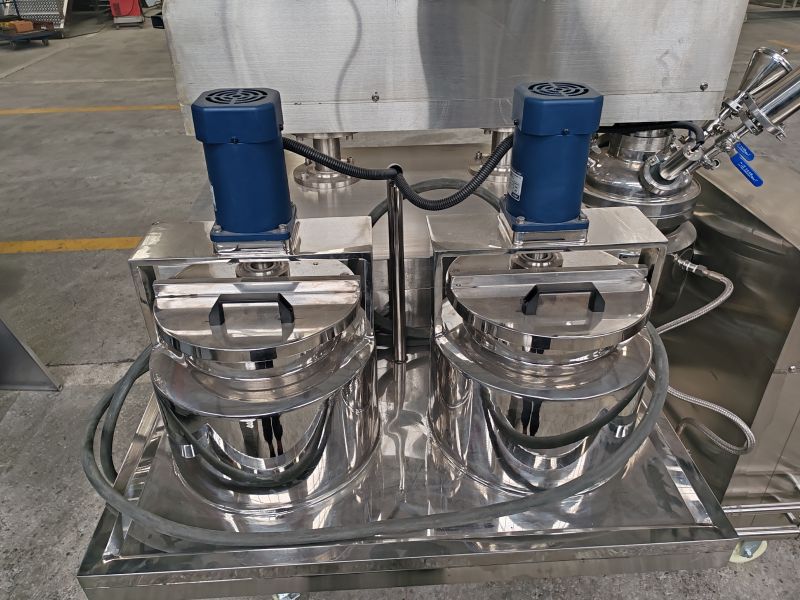

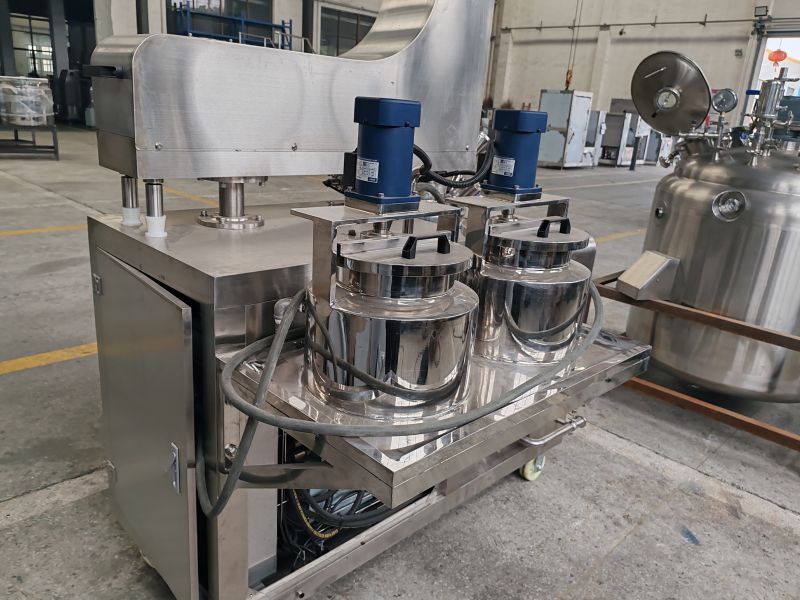

Premixer

8L Oil-phase Premixer: The oil pot is used to store and mix oil-based ingredients in the emulsifying process. It has a heating system to heat the oil to the desired temperature. The oil pot is responsible for melting and heating oil-based materials and ensuring their proper dispersion and emulsification.

5L Water-phase Premixer: The water pot, is used to store and mix water-based ingredients in the emulsifying process. It has a heating system to adjust the water temperature as required. The water pot is responsible for heating and dispersing water-based materials, ensuring their proper mixing and emulsification

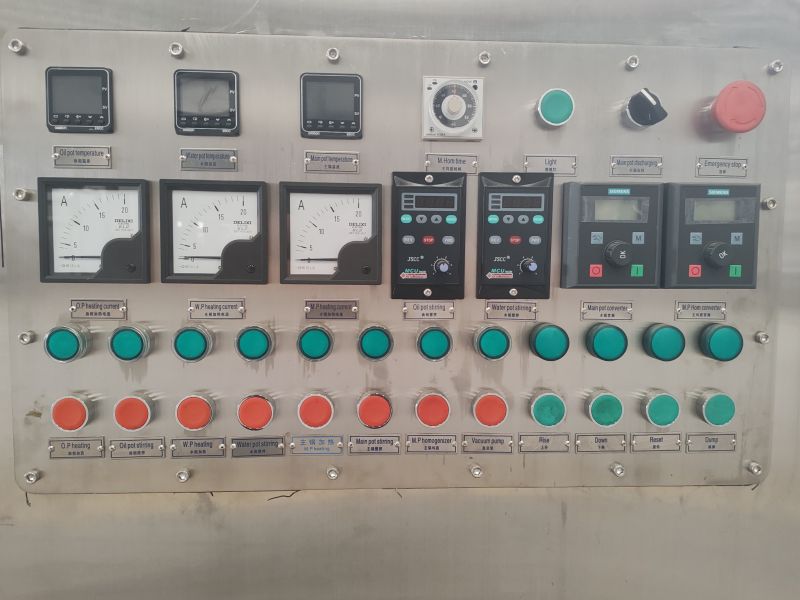

Control part

(Electrical button control)

The emulsifier’s product configuration also includes Siemens Motor and Siemens converter components. These brands are well-known for their high-quality electrical and mechanical components that enhance the overall performance and longevity of the machine.

Schneider Electric is responsible for the electrical control of the emulsifier, ensuring reliable and safe operation. The Delta components further enhance the efficiency and performance of the electrical system.
