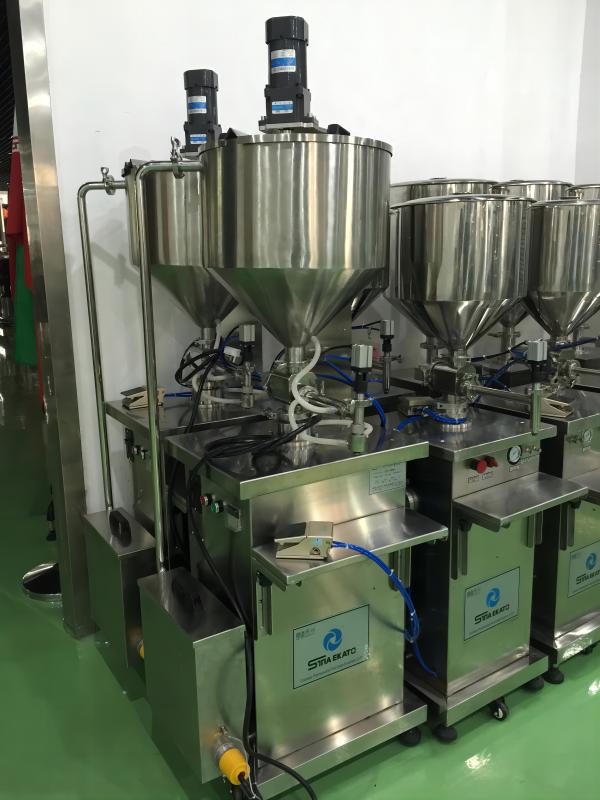

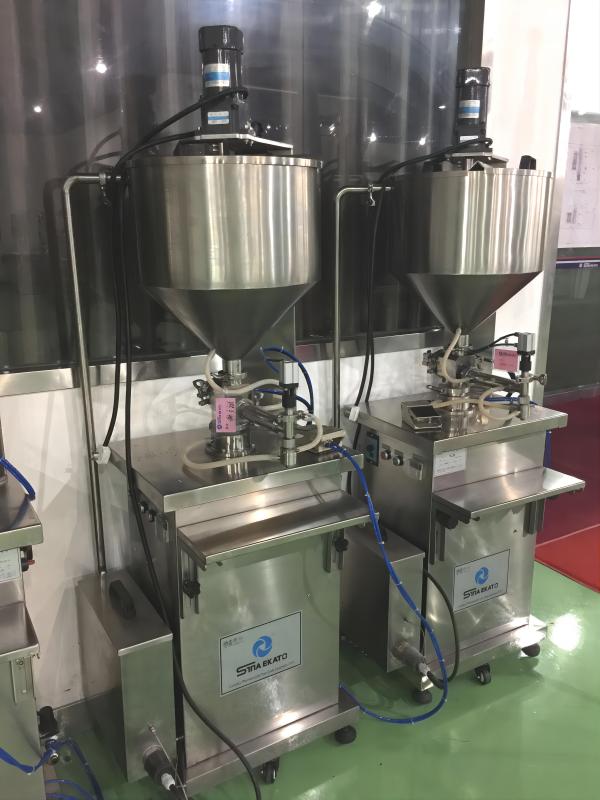

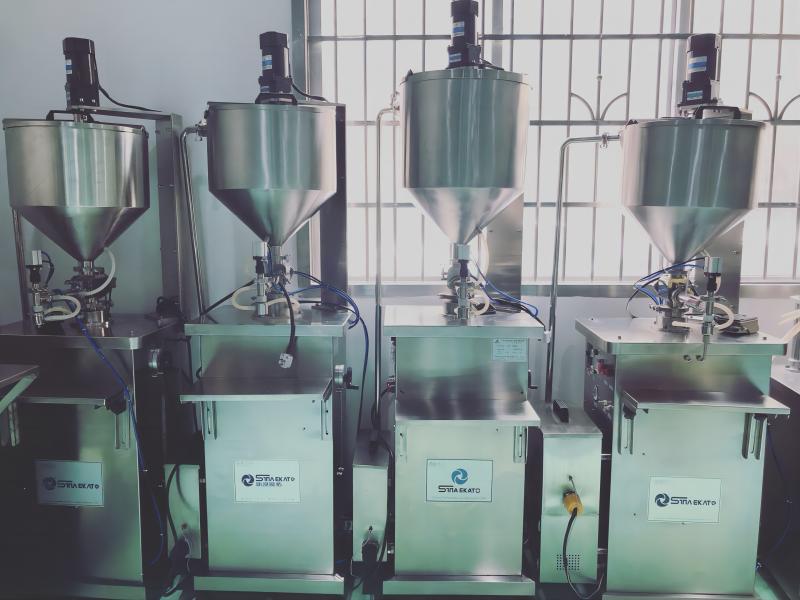

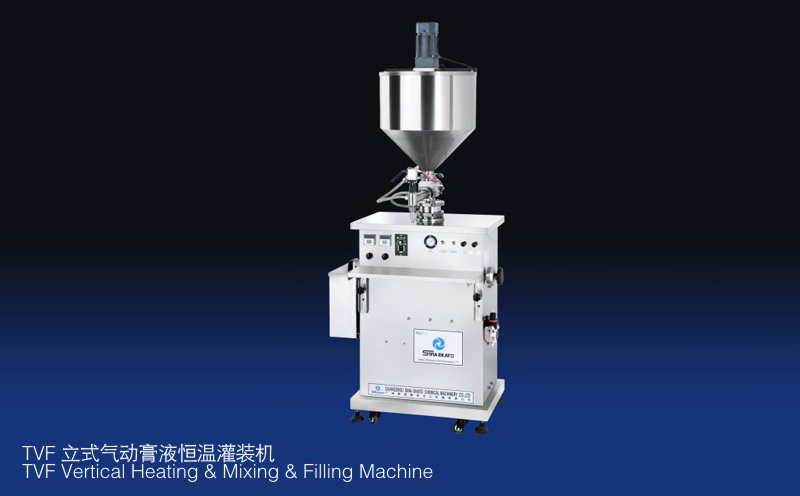

TVF Semi Auto Cream And Liquid constant Temperature Filling Machine

Description

Application

Semi-automatic Liquid Balm/Hair Wax Filling Machine is suitable for filling materials with high viscosity. It adopts pneumatic filling, electric heating for the hopper and tube, also assembled with mixing functions. The whole machine is with easy cleaning, convenient operation and conforms to GMP

Working principle

Through the up and down movement of the cylinder, the piston in the cylinder is driven to reciprocate, so that the front chamber of the cylinder produces negative pressure. When the cylinder moves down, the piston is pulled down, and the front chamber of the cylinder generates negative pressure. The material in the supply bucket is sucked into the cylinder by the atmosphere and enters the cylinder through the check valve.

When the cylinder moves upward, the piston is pushed forward to squeeze the material, and the material enters the empty bottle to be filled through the one-way valve in the discharge joint to complete a filling.

Features and Advantages

1. The contact part of the material is made of 316L, 304 stainless steel, in line with GMP requirements;

2, the whole machine uses compressed air as the power source, the machine operation without collision and hard friction; Suitable for use in the occasions with explosion-proof requirements;

3, the use of fixed volume measurement and piston type push-pull rod structure, the equipment filling precision is high, small error (error ≤±0.5%);

4, there is a filling volume adjustment handle, filling speed can be arbitrarily adjusted;

5, with automatic suction, quantitative filling, uniform discharging, filling volume and speed can be arbitrarily adjusted and other practical functions;

6. Cylinder valve or mechanical valve is used at the filling nozzle; The filling nozzle is provided with an anti-dripping plug to prevent the filling nozzle from drawing and dropping material;

7, each part through the clamp connection, convenient assembly disassembly, cleaning, maintenance;

8, the machine has [manual] and [automatic] gear, [manual] through foot control filling, [automatic] machine continuous filling.

Technical Parameter

Item	Specification
Filling Range	5-150ml(can be customized)
Filling accuracy	±1%
Capacity (bottles/min)	20-60b/m)
Hopper Volume	45L(can be customized)
Heating Temperature	0-95°C (Adjustable)
Air Source	0.2-0.45(Mpa)
Mixing Speed	10-60r/min
Mixing Power	90W
Water Pump	0.25Kw
Hot Water Hopper Capacity	15L
Pneumatic Parts	AirTAC
Machine Material	Machine cover is made of SUS304. Material contact parts are SS316L.

Product Details

1. Piston weighting

Piston quantitative, suitable for all kinds of liquid paste filling, quantitative accuracy, filling amount can be adjusted

2. Foot switch

Easy to operate

3. Stainless steel housing

The box is made of stainless steel to prevent rust, and the corners are obtuse to prevent cuts

4. Rotary valve

Automatic detailed chat, easy and fast

5. Filling nozzle

Filling nozzle is drip-proof, all stainless steel

6. Heating water tank

The water inside the tank is heated by a heating rod and then transmitted to the sandwich in the hopper

7.Water separator Effectively filter compressed air, eliminate pore impurities and moisture, and make the cylinder life longer

8.Simple control panel Two working modes of automatic/manual are optional, quick to get started
