Description

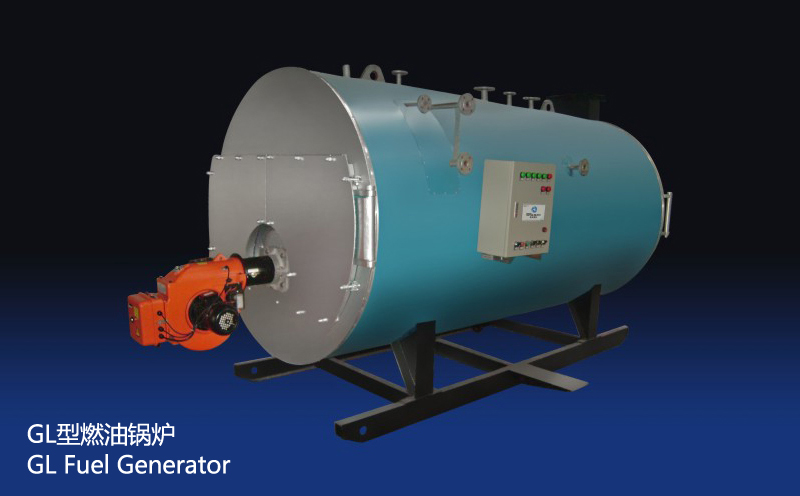

GL fuel generator is to put the vertical pipes on both ends in a ring. flue gas goes up and down in pipe groups and then flows towards the flue tube.
| Technical parameter | ||||||
| Model | LH0.1-0.7-Y(Q) | LH0.15-0.7-Y(Q) | LH0.2-0.7-Y(Q) | LH0.3-0.7-Y(Q) | LH0.3-0.7-Y(Q) | |
| Rated Steam Capacity (t/h) |
0.1 | 0.15 | 0.2 | 0.3 | 0.5 | |
| Rated Steam Pressure (Mpa) |
0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Rated Static Steam Temperature (℃) |
170 | 170 | 170 | 170 | 170 | |
| Water Supply Temperature (℃) |
20 | 20 | 20 | 20 | 20 | |
| Heating Area (㎡) |
3.12 | 4.55 | 6.25 | 8.57 | 13.158 | |
| Water Volume (m³) |
0.199 | 0.225 | 0.248 | 0.34 | 0.68 | |
| Avaible Fuel : Natural / Gas | ||||||
| Fuel Consumption | Oil Consumption (kg/h) |
8.1 | 10.1 | 15.5 | 20.8 | 34.6 |
| Gas Consumption (Nm³/h) |
8.9 | 13.4 | 17.1 | 25.1 | 41.7 | |
| Discharge Smoke Temperature (℃) |
260 | 255 | 255 | 250 | 250 | |
| Electric Power (kw) |
1.0 | 1.15 | 2.5 | 2.5 | 2.85 | |
