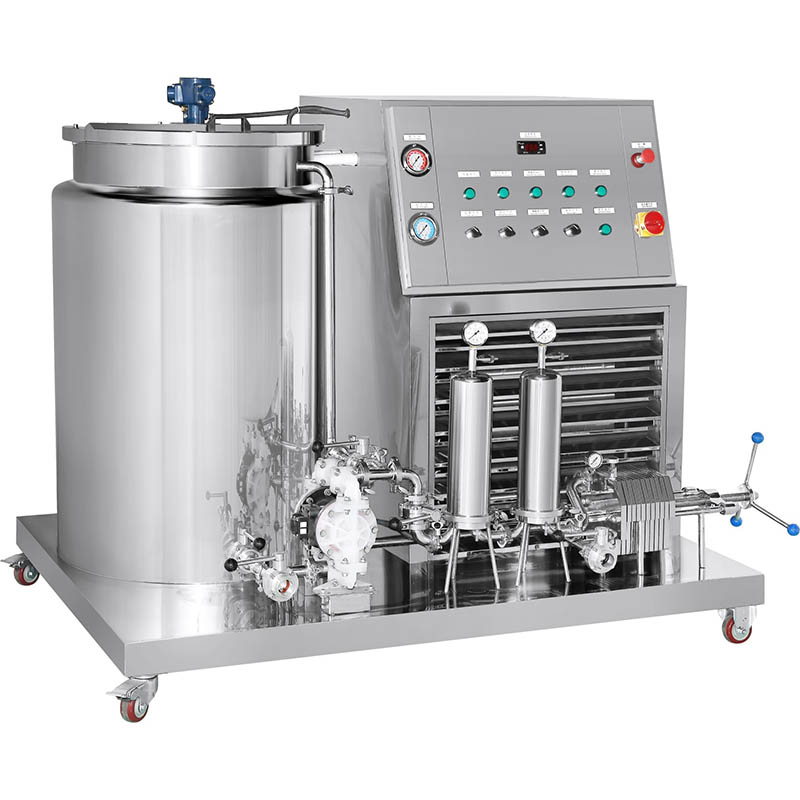

SinaEkato XS Perfume Making Machine Fragrance Chiller Filter Mixer

It can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

Description

Product Instruction

The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection from, with convenient assembly, disassembly and cleaning. Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

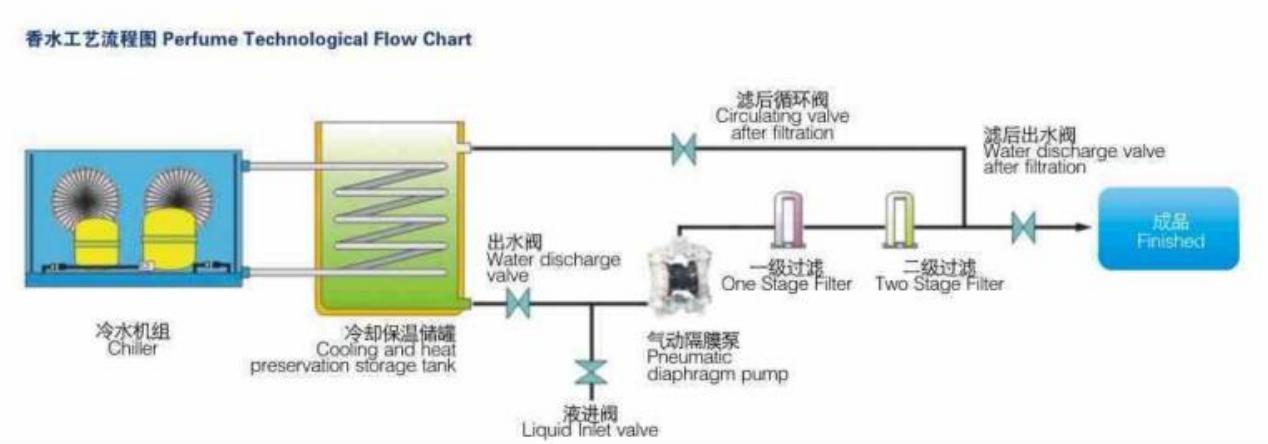

(It includes: Mixing tank for raw material + Chiller system for cooling perfume+ Pump for circulation & discharge + 3 times filter process)

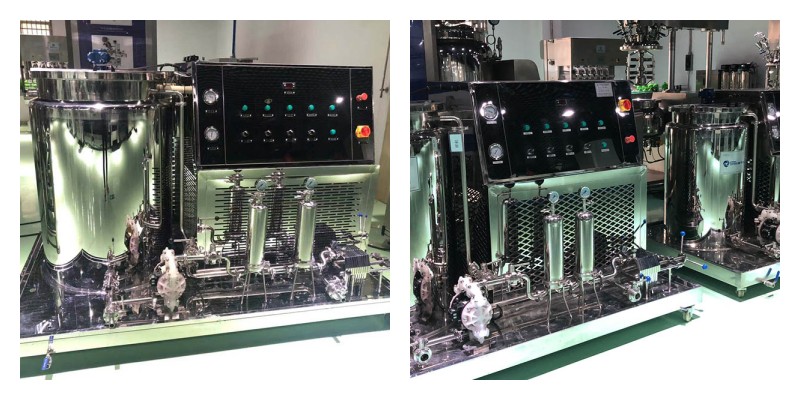

Product Detail

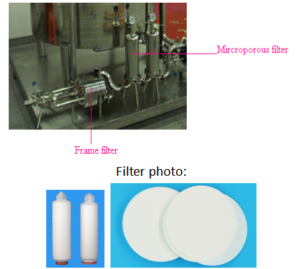

	Equipped with polypropylene microporous filtration film, Filtration accuracy reach to 0.2 μm.

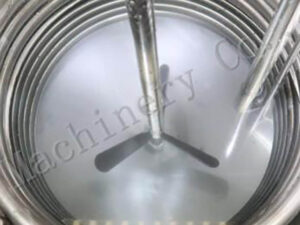

	Mixing paddle and chilling coil; 1: Material contact part: SUS316L. 2: One machine realizes mixing, chilling and filtering functions.

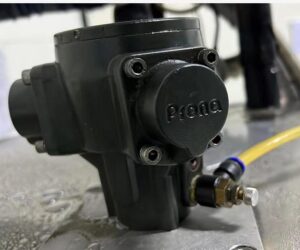

	Pneumatic mixing motor – Brand From Taiwan Prona; 1: Safety. 2: Suitable for mixing the liquid with alcohol. 3: Brand: MBP. 4: Mixing speed: 0-900rpm.
	Control components – Germany Schneider brand; 1: Button control. 2: Each function can be controlled separately. 3: With emergency stop switch, it can protect the machine and operator.

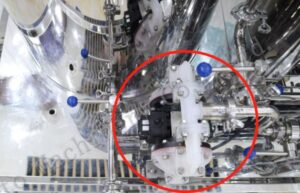

	Pneumatic pump- USA Brand; 1/Double function for the pump: pump the raw material from the storage tank to the mixing tank, and pump the finished product from the mixing tank to the storage tank.

Product Parameters

Technical Parameter:
Model	2P-100	3P-200	5P-300	5P-500	10P-1000
Freezing power	2P	3P	5P	5P	10P
Freezing capacity	100L	200L	300L	500L	1000L
Filtration precision	0.1μm	0.1μm	0.1μm	0.1μm	0.1μm
Refrigeration temperature	-5°C- -15°C
Refrigeration liquid	R22 (can be other medium, according to customer choose)
More size accept customized

Product Feature

Stainless steel heat preservation freezing tank and titanium metal coil pipe;
Freezing unit (imported from France Danfoss or Japan Hitachi);
Anti-corrosive pneumatic diaphragm pump (imported from USA);
Polypropylene micro porous filtration film (from USA);
Stainless steel movable supporter, easy to operate;
Sealing type electric control system and sanitary pipe fittings and valves, highest-performance;
